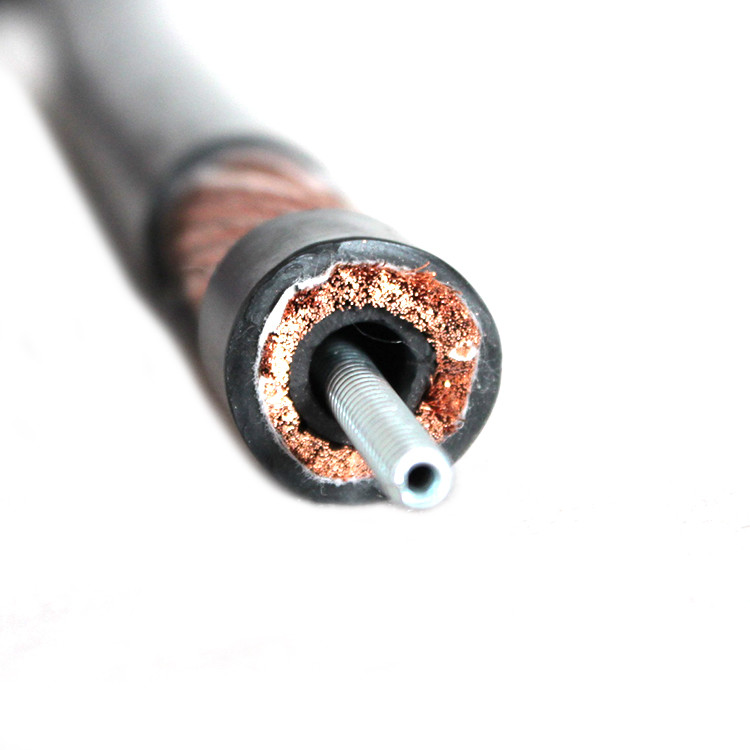

Fireproof Double Insulation CO2 Welding Torch Cable
  • Fireproof Double Insulation CO2 Welding Torch Cable
  • Fireproof Double Insulation CO2 Welding Torch Cable

Fireproof Double Insulation CO2 Welding Torch Cable

Place of Origin China
Brand Name Yi Lan
Certification ISO 9001, SGS
Product Details
Name:
25mm2 Flexible Cable
Type:
LOW VOLTAGE
Application:
Industrial
Nsulation Material:
Rubber
Model Number:
Welding Torch Cable
Conductor:
Copper Core
Highlight:

Mig CO2 Welding Torch Cable

,

Fireproof Welding Torch Cable

,

25mm2 Insulated Welding Torch Cable

Payment & Shipping Terms
Minimum Order Quantity
50pcs
Price
Negotiable
Packaging Details
Packing in steel pallet
Delivery Time
30-40days according to quantity
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
5000pcs per month
Product Description

Double Insulation Low Voltage CO2 Welding Torch Welding Cable



Copper core rubber insulated Mig CO2 welding torch cable

1. Rubber cable has weather resistance and certain oil resistance, suitable for outdoor use and oily occasions
2. ZR rubber control cable has flame retardancy
3. Rubber control cables can be used in places contaminated by mineral oil and fuel oil

Advantages of copper core rubber insulated Mig CO2 welding torch cable:

Fireproof, anti-impact, anti-rodent, anti-mosquito, anti-radiation
Low working temperature resistance
Strong overload capacity
Long service life, high safety, explosion-proof, corrosion-resistant
High mechanical strength



NAME MODEL USAGE FEATURE
Lightweight rubber cable YQ,YQW Household appliances, small electric equipment Soft, light and good bending performance;
YQW has weather resistance and certain oil resistance
Medium-sized rubber cable YZ,YZW Industry, widely used in agricultural electrification YZW has weather resistance and certain oil resistance
Heavy rubber cable YC,YCW Used in port machinery, searchlights, large-scale water conservancy irrigation and drainage stations, etc. Has good versatility, complete series specifications, good performance and stability;
YCW has weather resistance and certain oil resistance
Waterproof rubber cable JHS,JHSB Diving motor Good bending performance, can withstand frequent movement
Welding machine rubber cable YH,YHF Electric welding machine /
/ YHD Tinned power cable for field use /



1.MIG welding torch

Binzel, Bernard, Tweco, Esab, Lincoln/Tregaskiss, Panasonic/OTC, MAXI, Kemppi, Fronius, Mechafin.

2. TIG welding torch

WP-24, WP-9, WP-17, WP-26, WP-20, WP-18, etc.

3. Plasma cutting torch Trafimet, Cebora, Panasonic / Esab

Technical parameters

Welding cable Standard: IEC 60245
Nominal section area No./diameter of stranding Nominal sheath thickness (mm) Overall diameter Max. conductor resistance at 20℃
(mm2) (mm) (mm) (Ω/km)
    Min. Max. Without tinned With tinned
10 322/0.20 1.8 7.5 9.7 1.91 1.95
16 513/0.20 2 9.2 11.5 1.16 1.19
25 798/0.20 2 10.5 13 0.758 0.78
35 1121/0.20 2 11.5 14.5 0.536 0.552
50 1596/0.20 2.2 13.5 17 0.379 0.39
70 2214/0.20 2.4 15 19.5 0.268 0.276
95 2297/0.20 2.6 17 22 0.198 0.204
120 1702/0.30 2.8 19 24 0.161 0.164
150 2135/0.30 3 21 27 0.129 0.132
185 1443/0.40 3.2 22 29 0.106 0.108
240 1908/0.40 3.8 25 35 0.0801 0.0817



Feature

1. IEC, ASTM, DIN, BS standards; ISO, CCC, KEMA, CE, TUV certification;

2. Low resistance, low voltage;

3. The long-term working temperature is 65℃;

4. Environmental protection, non-toxic smell;

5. Excellent bending performance allows it to move and twist frequently

6. It has the ability of heat resistance, aging resistance, light weight and long-term use;

7. Our mass production provides customers with higher quality and lower prices.

8 . Our company uses irradiation technology to improve all aspects of rubber performance.

9. Rubber is used as a sheath material for welding cables, with excellent tear resistance and wear resistance
