Rubber Insulation Carbon Dioxide 25mm2 Welding Torch Cable
Rubber Insulation Carbon Dioxide 25mm2 Welding Torch Cable

Rubber Insulation Carbon Dioxide 25mm2 Welding Torch Cable

Product Details:
Place of Origin: China
Brand Name: Yi Lan
Certification: ISO 9001, SGS
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Packing in steel pallet
Delivery Time: 30-40days according to quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000pcs per month
Contact Now
  • Detail Information
  • Product Description

Detail Information
Name: 25mm2 Flexible Cable Type: LOW VOLTAGE
Application: Industrial Nsulation Material: Rubber
Model Number: Welding Torch Cable Conductor: Copper Core
High Light:

25mm2 Welding Torch Cable

,

Rubber Sheathed Cables

,

SGS Welding Torch Cable

Product Description

Rubber 25mm2 Carbon Dioxide Welding Torch Cable



25mm2 Flexible Welding Torch Cables

Rubber sheathed cables are widely used in various electrical equipment, such as household appliances, motors, electrical equipment and mobile power cords for household appliances, and can be used in indoor or outdoor environments.

Rubber cable model use

According to the mechanical external force on the cable, the product structure can be divided into three categories: light, medium and heavy, with proper connection on the cross section.

NAME MODEL USAGE FEATURE
Lightweight rubber cable YQ,YQW Household appliances, small electric equipment Soft, light and good bending performance;
YQW has weather resistance and certain oil resistance
Medium-sized rubber cable YZ,YZW Industry, widely used in agricultural electrification YZW has weather resistance and certain oil resistance
Heavy rubber cable YC,YCW Used in port machinery, searchlights, large-scale water conservancy irrigation and drainage stations, etc. Has good versatility, complete series specifications, good performance and stability;
YCW has weather resistance and certain oil resistance
Waterproof rubber cable JHS,JHSB Diving motor Good bending performance, can withstand frequent movement
Welding machine rubber cable YH,YHF Electric welding machine /
/ YHD Tinned power cable for field use /



Use conditions of rubber flexible cable

1) Rated voltage Uo / U:
YQ / YQW: 300 / 300V
YZ / 60245IEC53 YZ: 300 / 500V
YZW / 60245IEC 57 YZW: 300 / 500V
YC / YCW / 60245 IEC 66 YCW: 450 / 750V

2) The long-term allowable working temperature of the iron core does not exceed 65℃

3) Conductor: Copper 16/102/0.16mm

4) Inner tube: rubber

5) Control line: 3 control lines

6) Outer sheath: rubber

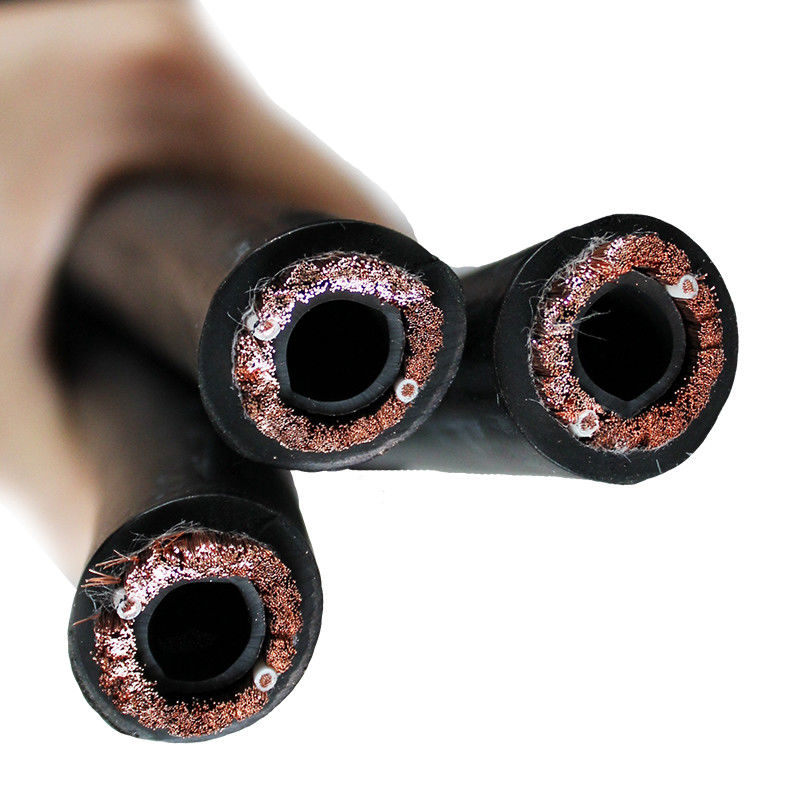

Rubber Insulation Carbon Dioxide 25mm2 Welding Torch Cable 0

Application field

Secondary pressure welding leads in heavy or mining applications
AC power does not exceed 600 volts in power applications

Manufacturing Standards

IEC 60245 and China National Standard GB5013
We can also produce welding cables according to international general standards (such as ASTM, BS, DIN, NF and AS/NZ).

Technical parameters

Welding cable Standard: IEC 60245
Nominal section area No./diameter of stranding Nominal sheath thickness (mm) Overall diameter Max. conductor resistance at 20℃
(mm2) (mm) (mm) (Ω/km)
    Min. Max. Without tinned With tinned
10 322/0.20 1.8 7.5 9.7 1.91 1.95
16 513/0.20 2 9.2 11.5 1.16 1.19
25 798/0.20 2 10.5 13 0.758 0.78
35 1121/0.20 2 11.5 14.5 0.536 0.552
50 1596/0.20 2.2 13.5 17 0.379 0.39
70 2214/0.20 2.4 15 19.5 0.268 0.276
95 2297/0.20 2.6 17 22 0.198 0.204
120 1702/0.30 2.8 19 24 0.161 0.164
150 2135/0.30 3 21 27 0.129 0.132
185 1443/0.40 3.2 22 29 0.106 0.108
240 1908/0.40 3.8 25 35 0.0801 0.0817
