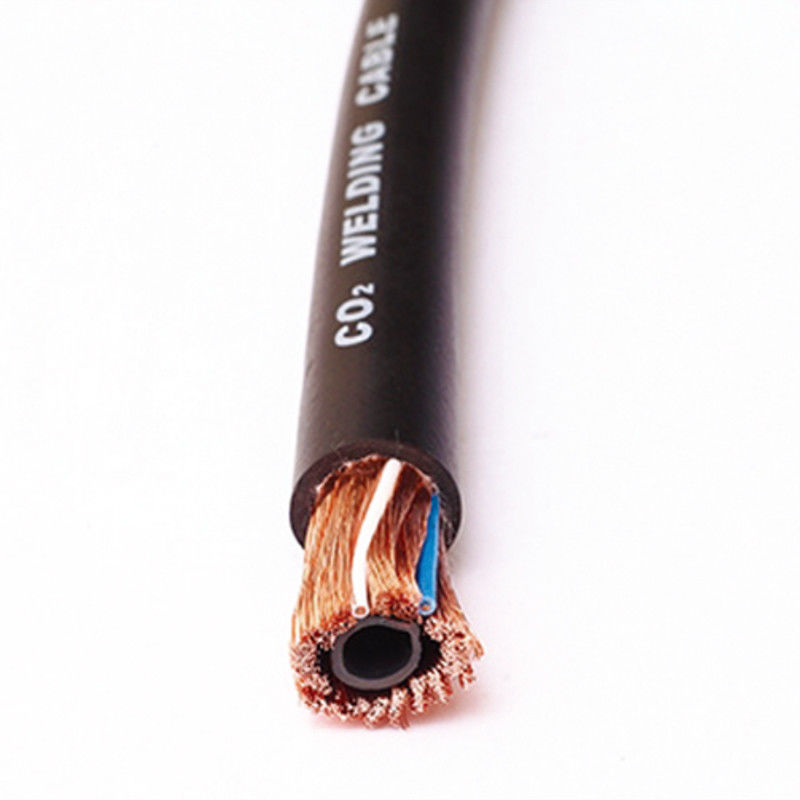

Co2 Crack Resistance Low Voltage Welding Torch Cable
Co2 Crack Resistance Low Voltage Welding Torch Cable

Co2 Crack Resistance Low Voltage Welding Torch Cable

Product Details:
Place of Origin: China
Brand Name: Yi Lan
Certification: ISO 9001, SGS
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Packing in steel pallet
Delivery Time: 30-40days according to quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000pcs per month
Contact Now
  • Detail Information
  • Product Description

Detail Information
Name: 25mm2 Flexible Cable Type: LOW VOLTAGE
Application: Industrial Nsulation Material: Rubber
Model Number: Welding Torch Cable Conductor: Copper Core
High Light:

CO2 Welding Torch Integrated Cable

,

MAG Welding Torch Cable

,

IEC 60245 Welding Torch Cable

Product Description

Torch cable for low voltage welding machine


Torch cable

CO2 welding torch cable, CO2 welding torch integrated cable, welding torch integrated cable CO2, product characteristics The maximum working temperature of the cable conductor is 105 ℃, and the cable air duct and sheath are made of radiation cross-linked elastomer materials. The product has high conductivity, Excellent flexibility, crack resistance, aging resistance, abrasion resistance, oil resistance, corrosion resistance, high temperature resistance, flame retardancy, low smoke and non-toxicity. Special welding gun cable, welding torch cable, CO2CO2CO2 welding torch integrated cable, welding torch integrated cable CO2






NAME MODEL USAGE FEATURE
Lightweight rubber cable YQ,YQW Household appliances, small electric equipment Soft, light and good bending performance;
YQW has weather resistance and certain oil resistance
Medium-sized rubber cable YZ,YZW Industry, widely used in agricultural electrification YZW has weather resistance and certain oil resistance
Heavy rubber cable YC,YCW Used in port machinery, searchlights, large-scale water conservancy irrigation and drainage stations, etc. Has good versatility, complete series specifications, good performance and stability;
YCW has weather resistance and certain oil resistance
Waterproof rubber cable JHS,JHSB Diving motor Good bending performance, can withstand frequent movement
Welding machine rubber cable YH,YHF Electric welding machine /
/ YHD Tinned power cable for field use /



Co2 torch cable Application

1- For CO2/MIG/MAG welding torch.

2- Dedicated cable for welding machine secondary side connection

3- And connector between electrode holder and welding machine.

Technical parameters

Welding cable Standard: IEC 60245
Nominal section area No./diameter of stranding Nominal sheath thickness (mm) Overall diameter Max. conductor resistance at 20℃
(mm2) (mm) (mm) (Ω/km)
    Min. Max. Without tinned With tinned
10 322/0.20 1.8 7.5 9.7 1.91 1.95
16 513/0.20 2 9.2 11.5 1.16 1.19
25 798/0.20 2 10.5 13 0.758 0.78
35 1121/0.20 2 11.5 14.5 0.536 0.552
50 1596/0.20 2.2 13.5 17 0.379 0.39
70 2214/0.20 2.4 15 19.5 0.268 0.276
95 2297/0.20 2.6 17 22 0.198 0.204
120 1702/0.30 2.8 19 24 0.161 0.164
150 2135/0.30 3 21 27 0.129 0.132
185 1443/0.40 3.2 22 29 0.106 0.108
240 1908/0.40 3.8 25 35 0.0801 0.0817

Co2 torch cable Features

1. IEC, ASTM, DIN, BS standard; ISO, CCC, KEMA, CE, TUV certification;

2. Low resistance & low voltage;

3. Long term work temperature is 65 ℃;

4. Environment friendly with no poisonous smell;

5. Great bending property allows frequent mobile and twisting;

6. Be capable of heat resistant, anti-aging, light weight and long term using span;

7. Our mass production provides customers with higher quality and lower price.

8. Our company includes irradiation technology which improves all aspects of performance of rubber.

9. The rubber as sheath material is dedicated for welding cable with excellent tear resistance and abrasion resistance
