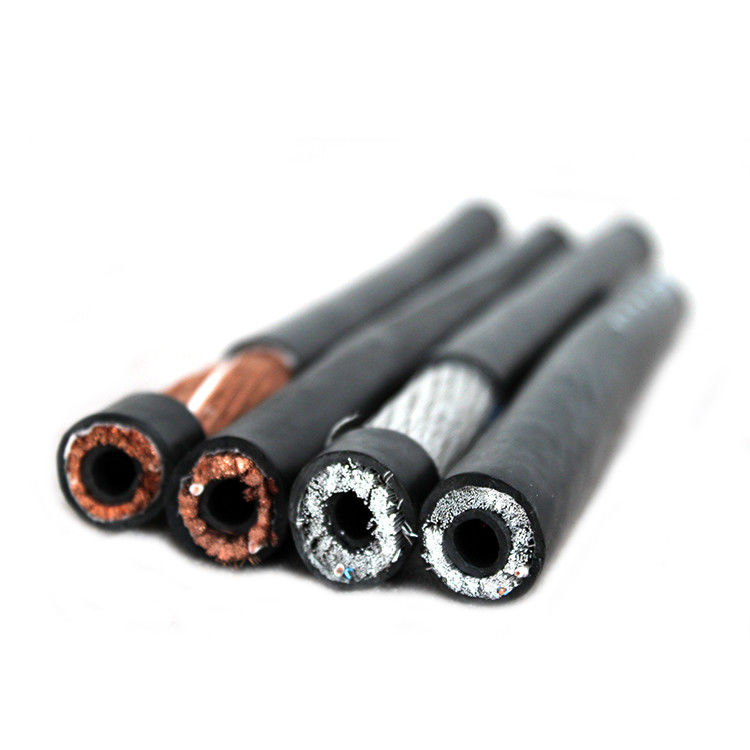

25mm2 Flexible 3M 350A Co2 Mig Welding Torch Cable

25mm2 Flexible 3M 350A Co2 Mig Welding Torch Cable

  • High Light

    350A Welding Torch Cable

    ,

    3M Co2 Welding Torch Cable

    ,

    25mm2 Flexible Welding Torch Cable

  • Name
    25mm2 Flexible Cable
  • Type
    LOW VOLTAGE
  • Application
    Industrial
  • Nsulation Material
    Rubber
  • Model Number
    Welding Torch Cable
  • Conductor
    Copper Core
  • Place of Origin
    China
  • Brand Name
    Yi Lan
  • Certification
    ISO 9001, SGS
  • Minimum Order Quantity
    50pcs
  • Price
    Negotiable
  • Packaging Details
    Packing in steel pallet
  • Delivery Time
    30-40days according to quantity
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    5000pcs per month

25mm2 Flexible 3M 350A Co2 Mig Welding Torch Cable

3M Cable Length 350A Co2 Mig Welding Torch For Welding Machine



Description of welding torch cable

1.This Co2 Mig Welding Torch should be used by qualified personnel;

2.During use, avoid harmful substances such as arc or smoke, harming the operator and others;

3.The specified current parameter indicates its working limit, and the overload will damage the Co2 Mig Welding Torch;

4.The length of the conventional Co2 Mig Welding Torch is 3 meters and 5 meters. It is strictly forbidden to connect the cable with sharp objects, and heat objects.

5.MAG / MIG Co2 Mig Welding Torch technical implementation of GB/T15579.7-2013




NAME MODEL USAGE FEATURE
Lightweight rubber cable YQ,YQW Household appliances, small electric equipment Soft, light and good bending performance;
YQW has weather resistance and certain oil resistance
Medium-sized rubber cable YZ,YZW Industry, widely used in agricultural electrification YZW has weather resistance and certain oil resistance
Heavy rubber cable YC,YCW Used in port machinery, searchlights, large-scale water conservancy irrigation and drainage stations, etc. Has good versatility, complete series specifications, good performance and stability;
YCW has weather resistance and certain oil resistance
Waterproof rubber cable JHS,JHSB Diving motor Good bending performance, can withstand frequent movement
Welding machine rubber cable YH,YHF Electric welding machine /
/ YHD Tinned power cable for field use /



6. In order to ensure the quality of welding and the service life of this product, it is recommended to check regularly and replace consumable parts in time;

7. Disassembly of wire feed hose:
First remove the nozzle, the contact tip, the front joint, and then at the end of the torch, remove the solid nut on the center plug, you can see the fixed end of the wire feed hose, pull out, if necessary, gently rotate, ie The wire feed hose can be removed;

8. Installation of wire feeding hose:
Before connecting the welding gun to the wire feeding mechanism, be sure to install the appropriate wire feeding hose according to the type of wire.

Note: The wire feed hose should not be too long, otherwise it will make the contact tip screwed into difficulty or the hose will be excessively compressed and bent in the cable.

9. The protective gas flow is an important factor affecting the use of the Co2 Mig Welding Torch. It can be adjusted to the best welding effect by adjusting the flow meter.

10. Splashes in the welding process are most to affect the Co2 Mig Welding Torch and the welding effect.

11. It is strictly forbidden to use the Co2 Mig Welding Torch as a tool for knocking the workpiece.

Application field

Secondary pressure welding leads in heavy or mining applications
AC power does not exceed 600 volts in power applications

Manufacturing Standards

IEC 60245 and China National Standard GB5013
We can also produce welding cables according to international general standards (such as ASTM, BS, DIN, NF and AS/NZ).

Technical parameters

Welding cable Standard: IEC 60245
Nominal section area No./diameter of stranding Nominal sheath thickness (mm) Overall diameter Max. conductor resistance at 20℃
(mm2) (mm) (mm) (Ω/km)
    Min. Max. Without tinned With tinned
10 322/0.20 1.8 7.5 9.7 1.91 1.95
16 513/0.20 2 9.2 11.5 1.16 1.19
25 798/0.20 2 10.5 13 0.758 0.78
35 1121/0.20 2 11.5 14.5 0.536 0.552
50 1596/0.20 2.2 13.5 17 0.379 0.39
70 2214/0.20 2.4 15 19.5 0.268 0.276
95 2297/0.20 2.6 17 22 0.198 0.204
120 1702/0.30 2.8 19 24 0.161 0.164
150 2135/0.30 3 21 27 0.129 0.132
185 1443/0.40 3.2 22 29 0.106 0.108
240 1908/0.40 3.8 25 35 0.0801 0.0817
