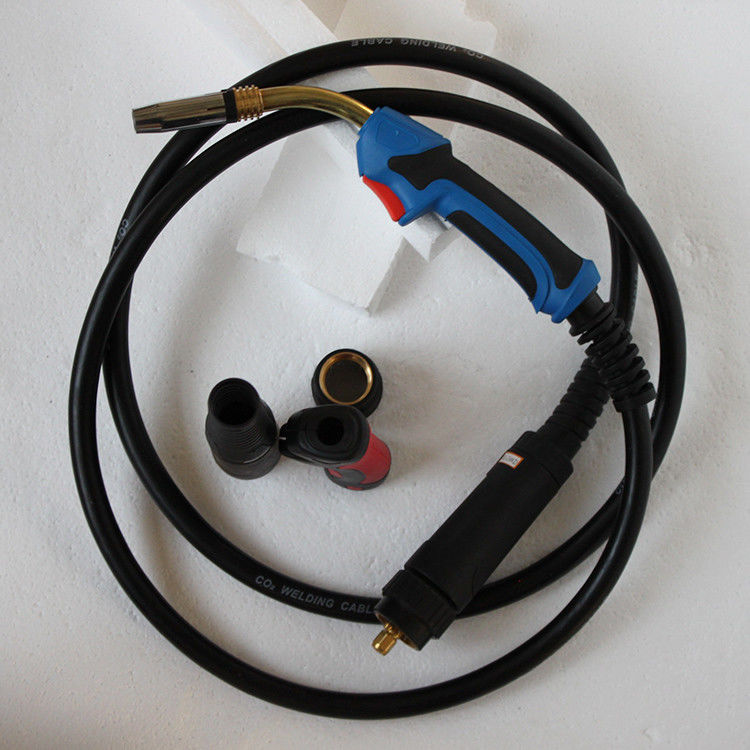

Waterproof 260A 25mm2 1.2mm MIG Co2 Welding Torch Cable

Waterproof 260A 25mm2 1.2mm MIG Co2 Welding Torch Cable

Products - Welding Torch Cable
  • High Light

    1.2mm Co2 Welding Torch Cable

    ,

    25mm2 Co2 Welding Torch Cable

    ,

    MIG Co2 Welding Torch Cable

  • Name
    25mm2 Flexible Cable
  • Type
    LOW VOLTAGE
  • Application
    Industrial
  • Nsulation Material
    Rubber
  • Model Number
    Welding Torch Cable
  • Conductor
    Copper Core
  • Place of Origin
    China
  • Brand Name
    Yi Lan
  • Certification
    ISO 9001, SGS
  • Minimum Order Quantity
    50pcs
  • Price
    Negotiable
  • Packaging Details
    Packing in steel pallet
  • Delivery Time
    30-40days according to quantity
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    5000pcs per month

Waterproof 260A 25mm2 1.2mm MIG Co2 Welding Torch Cable

  • Waterproof 260A 25mm2 1.2mm MIG Co2 Welding Torch Cable
Get Price Contact Now

1.2mm ISO9001 certification Co2 welding torch cable


HOLD ONE CABLE MIG welding torch advantages

HOLD ONE CABLE MIG Torch is novel in appearance, lightweight and comfortable. It is ergonomically designed and has good heat resistance and flame resistance.

■HOLD ONE CABLE welding cable is produced according to international standards, with precise square meters.
■HOLD ONE CABLE spare parts are manufactured with advanced imported equipment-lean production.
■HOLD ONE CABLE universal ball joint allows welders to operate flexibly during work.
■Each air-cooled cutting torch of HOLD ONE CABLE must pass the following tests: insulation resistance test, high voltage test, airflow test, air tightness test.
■ Each water-cooled cutting torch of HOLD ONE CABLE must pass the following tests: insulation resistance test, high voltage test, water flow test, water seal test.
MMT42 gas-cooled welding torch with Kemppi type cable
■Rated value: 40 0A CO2 / 260A mixed gas
■Duty ratio: 60%
■Wire diameter: 0.8-1.6mm
■Rear connector: KP European connector






NAME MODEL USAGE FEATURE
Lightweight rubber cable YQ,YQW Household appliances, small electric equipment Soft, light and good bending performance;
YQW has weather resistance and certain oil resistance
Medium-sized rubber cable YZ,YZW Industry, widely used in agricultural electrification YZW has weather resistance and certain oil resistance
Heavy rubber cable YC,YCW Used in port machinery, searchlights, large-scale water conservancy irrigation and drainage stations, etc. Has good versatility, complete series specifications, good performance and stability;
YCW has weather resistance and certain oil resistance
Waterproof rubber cable JHS,JHSB Diving motor Good bending performance, can withstand frequent movement
Welding machine rubber cable YH,YHF Electric welding machine /
/ YHD Tinned power cable for field use /



1.MIG welding torch

Binzel, Bernard, Tweco, Esab, Lincoln/Tregaskiss, Panasonic/OTC, MAXI, Kemppi, Fronius, Mechafin.

2. TIG welding torch

WP-24, WP-9, WP-17, WP-26, WP-20, WP-18, etc.

3. Plasma cutting torch Trafimet, Cebora, Panasonic / Esab

Technical parameters

Welding cable Standard: IEC 60245
Nominal section area No./diameter of stranding Nominal sheath thickness (mm) Overall diameter Max. conductor resistance at 20℃
(mm2) (mm) (mm) (Ω/km)
    Min. Max. Without tinned With tinned
10 322/0.20 1.8 7.5 9.7 1.91 1.95
16 513/0.20 2 9.2 11.5 1.16 1.19
25 798/0.20 2 10.5 13 0.758 0.78
35 1121/0.20 2 11.5 14.5 0.536 0.552
50 1596/0.20 2.2 13.5 17 0.379 0.39
70 2214/0.20 2.4 15 19.5 0.268 0.276
95 2297/0.20 2.6 17 22 0.198 0.204
120 1702/0.30 2.8 19 24 0.161 0.164
150 2135/0.30 3 21 27 0.129 0.132
185 1443/0.40 3.2 22 29 0.106 0.108
240 1908/0.40 3.8 25 35 0.0801 0.0817



Co2 torch cable Features

1. IEC, ASTM, DIN, BS standard; ISO, CCC, KEMA, CE, TUV certification;

2. Low resistance & low voltage;

3. Long term work temperature is 65 ℃;

4. Environment friendly with no poisonous smell;

5. Great bending property allows frequent mobile and twisting;

6. Be capable of heat resistant, anti-aging, light weight and long term using span;

7. Our mass production provides customers with higher quality and lower price.

8. Our company includes irradiation technology which improves all aspects of performance of rubber.

9. The rubber as sheath material is dedicated for welding cable with excellent tear resistance and abrasion resistance
