22 Feet 25mm2 PVC Transmission Overhead Welding Cable

22 Feet 25mm2 PVC Transmission Overhead Welding Cable

Products - Welding Torch Cable
  • High Light

    PVC Transmission Overhead Welding Cable

    ,

    25mm2 Overhead Welding Cable

    ,

    22 Feet Overhead Welding Cable

  • Name
    25mm2 Flexible Cable
  • Type
    LOW VOLTAGE
  • Application
    Industrial
  • Nsulation Material
    Rubber
  • Model Number
    Welding Torch Cable
  • Conductor
    Copper Core
  • Place of Origin
    China
  • Brand Name
    Yi Lan
  • Certification
    ISO 9001, SGS
  • Minimum Order Quantity
    50pcs
  • Price
    Negotiable
  • Packaging Details
    Packing in steel pallet
  • Delivery Time
    30-40days according to quantity
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    5000pcs per month

22 Feet 25mm2 PVC Transmission Overhead Welding Cable

  • 22 Feet 25mm2 PVC Transmission Overhead Welding Cable
Get Price Contact Now

PVC transmission power overhead welding cable

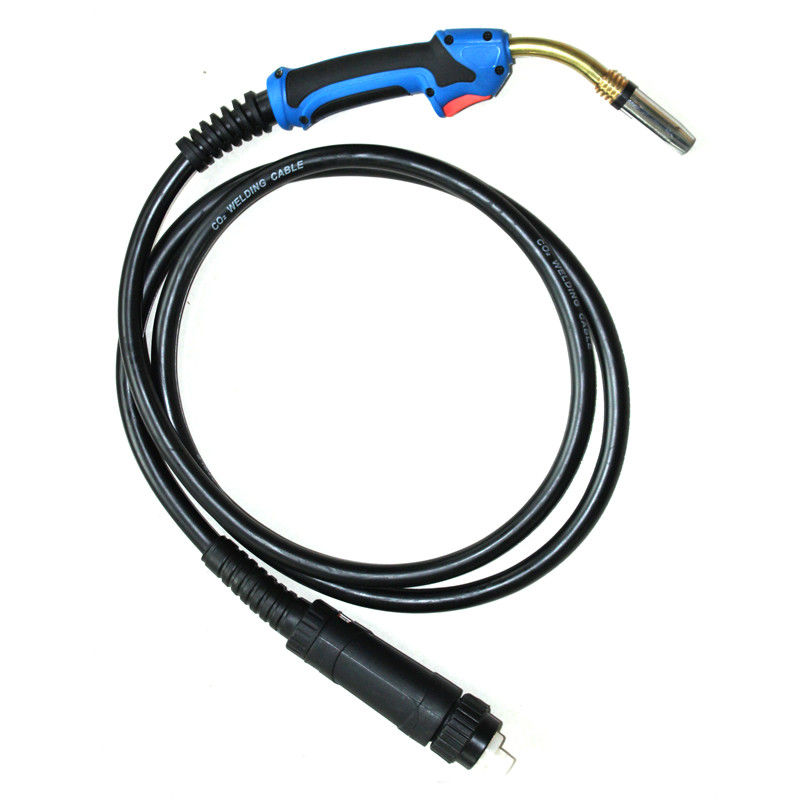

Co2 welding torch cable


The lightweight and flexible PVC torch cover protects expensive cables without feeling heavy or clumsy. Made from a combination of PET monofilament and multifilament, it has excellent abrasion resistance and chemical resistance.

It can withstand temperatures up to 347°F and a melting point of 500°F. The self-closing open sleeve design is easy to install, and includes a self-fixable silicone tape to fix the end. It complies with SAE ARP 1536 A and ISO 6722 abrasion resistance class and SAE J 369 self-extinguishing flammability class.

Length is 11 feet or 22 feet






NAME MODEL USAGE FEATURE
Lightweight rubber cable YQ,YQW Household appliances, small electric equipment Soft, light and good bending performance;
YQW has weather resistance and certain oil resistance
Medium-sized rubber cable YZ,YZW Industry, widely used in agricultural electrification YZW has weather resistance and certain oil resistance
Heavy rubber cable YC,YCW Used in port machinery, searchlights, large-scale water conservancy irrigation and drainage stations, etc. Has good versatility, complete series specifications, good performance and stability;
YCW has weather resistance and certain oil resistance
Waterproof rubber cable JHS,JHSB Diving motor Good bending performance, can withstand frequent movement
Welding machine rubber cable YH,YHF Electric welding machine /
/ YHD Tinned power cable for field use /



Feature

HOLD ONE CABLE is a professional manufacturer of MIG/MAG welding torches, TIG welding torches and air plasma cutting guns. We have decades of export experience and our products are exported to many countries. Our products are highly competitive in the world.

Technical parameters

Welding cable Standard: IEC 60245
Nominal section area No./diameter of stranding Nominal sheath thickness (mm) Overall diameter Max. conductor resistance at 20℃
(mm2) (mm) (mm) (Ω/km)
    Min. Max. Without tinned With tinned
10 322/0.20 1.8 7.5 9.7 1.91 1.95
16 513/0.20 2 9.2 11.5 1.16 1.19
25 798/0.20 2 10.5 13 0.758 0.78
35 1121/0.20 2 11.5 14.5 0.536 0.552
50 1596/0.20 2.2 13.5 17 0.379 0.39
70 2214/0.20 2.4 15 19.5 0.268 0.276
95 2297/0.20 2.6 17 22 0.198 0.204
120 1702/0.30 2.8 19 24 0.161 0.164
150 2135/0.30 3 21 27 0.129 0.132
185 1443/0.40 3.2 22 29 0.106 0.108
240 1908/0.40 3.8 25 35 0.0801 0.0817



1. Argon arc welding torch



WP12, WP17, WP18, WP26 torch and parts



QQ150, QQ150-1, QQ300, QS500, cutting torch and parts



2. Plasma cutting torch



P80A, 40A, 60A 100A welding torch and its parts



3. Mig welding: replacement



Binzel --- 14AK, 15AK, 25AK, 24KD, 36KD, 40KD, 501D

  Pana --- 180A, 200A, 350A, 500A

              Bernard --- 200E, 300E, 400E, 600E

              Tweco --- 1#, 2#, 3#, 4#, 5#

              Fronius --- AW4000, AW5000, AL3000, AL4000

              Esab --- 250A, 315A, 400A



Optional length 3M, 4.2M 5M, 8.2M


Co2 torch cable Features

1. IEC, ASTM, DIN, BS standard; ISO, CCC, KEMA, CE, TUV certification;

2. Low resistance & low voltage;

3. Long term work temperature is 65 ℃;

4. Environment friendly with no poisonous smell;

5. Great bending property allows frequent mobile and twisting;

6. Be capable of heat resistant, anti-aging, light weight and long term using span;

7. Our mass production provides customers with higher quality and lower price.

8. Our company includes irradiation technology which improves all aspects of performance of rubber.

9. The rubber as sheath material is dedicated for welding cable with excellent tear resistance and abrasion resistance
Tags:

24KD MIG Torch Euro Connector

230A Welding Torch Cable

CO2 MIG Torch Euro Connector
