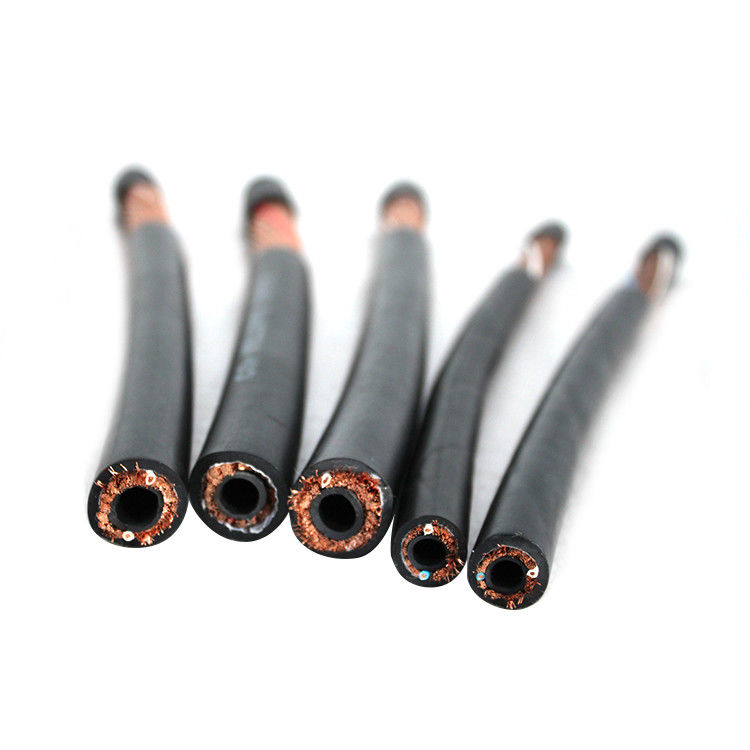

Rubber Insulated 24KD CO2 MAG MIG Torch Euro Connector
  • Rubber Insulated 24KD CO2 MAG MIG Torch Euro Connector
  • Rubber Insulated 24KD CO2 MAG MIG Torch Euro Connector

Rubber Insulated 24KD CO2 MAG MIG Torch Euro Connector

Place of Origin China
Brand Name Yi Lan
Certification ISO 9001, SGS
Product Details
Name:
25mm2 Flexible Cable
Type:
LOW VOLTAGE
Application:
Industrial
Nsulation Material:
Rubber
Model Number:
Welding Torch Cable
Conductor:
Copper Core
Highlight:

MAG MIG Torch Euro Connector

,

CO2 MIG Torch Euro Connector

,

24KD MIG Torch Euro Connector

Payment & Shipping Terms
Minimum Order Quantity
50pcs
Price
Negotiable
Packaging Details
Packing in steel pallet
Delivery Time
30-40days according to quantity
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
5000pcs per month
Product Description

24KD MIG / MAG / CO2 Welding Torch Euro Connector


Welding torch with euro adaptor 3m

MB24KD

1. Ergonomic short handle for best accessiblity

2. Euro connect style up to 250AMPS

3. Light and highly flexible cable assembly makes low fatigue possible.

4. robust construction for durability and extended torch life

5. Rating: 250A CO2 220A Mixed Gases M21 (DIN EN439).

6. Duty cycle 60%.

7. Wire size: 0.8-1.2mm.

8. European type adaptor fitting.

9. Nozzle self insulated.

10. Cable size: 25mm or 35mm according to different demands.




NAME MODEL USAGE FEATURE
Lightweight rubber cable YQ,YQW Household appliances, small electric equipment Soft, light and good bending performance;
YQW has weather resistance and certain oil resistance
Medium-sized rubber cable YZ,YZW Industry, widely used in agricultural electrification YZW has weather resistance and certain oil resistance
Heavy rubber cable YC,YCW Used in port machinery, searchlights, large-scale water conservancy irrigation and drainage stations, etc. Has good versatility, complete series specifications, good performance and stability;
YCW has weather resistance and certain oil resistance
Waterproof rubber cable JHS,JHSB Diving motor Good bending performance, can withstand frequent movement
Welding machine rubber cable YH,YHF Electric welding machine /
/ YHD Tinned power cable for field use /





Carbon dioxide cutting torch cable application


1- Used for CO2/MIG/MAG welding gun.

2-Special cable for the secondary side of the welding machine

3- The connector between the electrode holder and the welding machine.

Technical parameters

Welding cable Standard: IEC 60245
Nominal section area No./diameter of stranding Nominal sheath thickness (mm) Overall diameter Max. conductor resistance at 20℃
(mm2) (mm) (mm) (Ω/km)
    Min. Max. Without tinned With tinned
10 322/0.20 1.8 7.5 9.7 1.91 1.95
16 513/0.20 2 9.2 11.5 1.16 1.19
25 798/0.20 2 10.5 13 0.758 0.78
35 1121/0.20 2 11.5 14.5 0.536 0.552
50 1596/0.20 2.2 13.5 17 0.379 0.39
70 2214/0.20 2.4 15 19.5 0.268 0.276
95 2297/0.20 2.6 17 22 0.198 0.204
120 1702/0.30 2.8 19 24 0.161 0.164
150 2135/0.30 3 21 27 0.129 0.132
185 1443/0.40 3.2 22 29 0.106 0.108
240 1908/0.40 3.8 25 35 0.0801 0.0817



Carbon dioxide cutting torch cable features

1. IEC, ASTM, DIN, BS standards; ISO, CCC, KEMA, CE, TUV certification;

2. Low resistance, low voltage;

3. The long-term working temperature is 65℃;

4. Environmental protection, non-toxic smell;

5. Excellent bending performance allows it to move and twist frequently;

6. It has the ability of heat resistance, aging resistance, light weight and long-term use;

7. Our mass production provides customers with higher quality and lower prices.

8 . Our company uses irradiation technology to improve all aspects of rubber performance.

9. As a sheath material, rubber is specially used for welding cables, with excellent tear resistance and wear resistance
