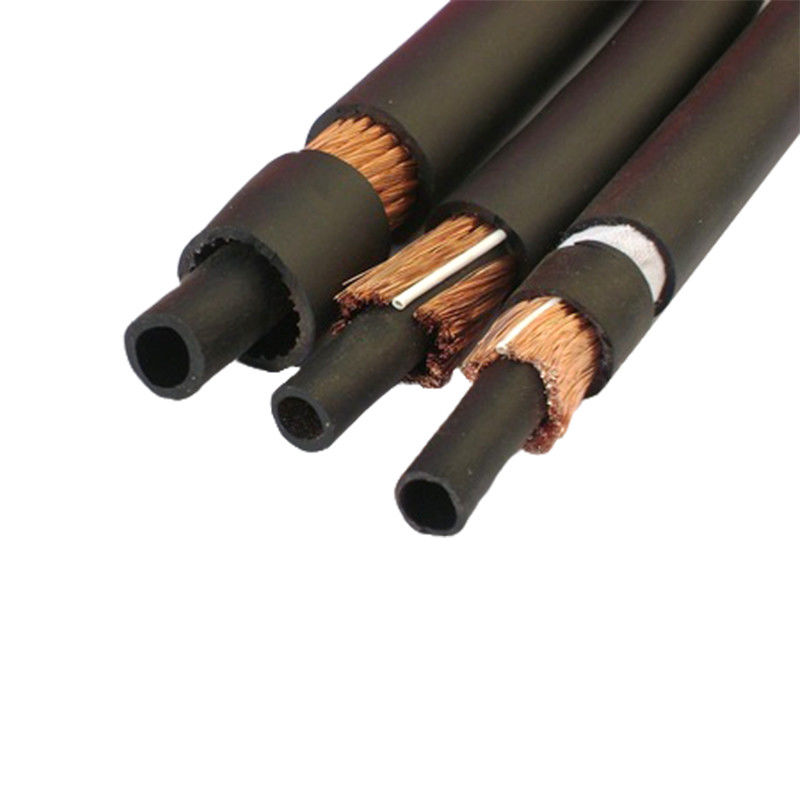

Copper Core 230A CO2 5m Carbon Dioxide Welding Torch Cable
Copper Core 230A CO2 5m Carbon Dioxide Welding Torch Cable

Copper Core 230A CO2 5m Carbon Dioxide Welding Torch Cable

Product Details:
Place of Origin: China
Brand Name: Yi Lan
Certification: ISO 9001, SGS
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Packing in steel pallet
Delivery Time: 30-40days according to quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000pcs per month
Contact Now
  • Detail Information
  • Product Description

Detail Information
Name: 25mm2 Flexible Cable Type: LOW VOLTAGE
Application: Industrial Nsulation Material: Rubber
Model Number: Welding Torch Cable Conductor: Copper Core
High Light:

230A Welding Torch Cable

,

CO2 5m Welding Torch Cable

,

25mm2 Carbon Dioxide Torch Cable

Product Description

230 A CO2 5m carbon dioxide welding torch cable



Carbon dioxide torch cable

Carbon dioxide cutting torch cable, common elastomer compound and HOFR for general purposes, used in the welding industry, namely Mig Tig Co2 coaxial cable welding equipment. Our cables range from 16 Sq.mm to 95Sq.mm. Coverage: The commonly used general purpose elastomer compound should be SE 1 type, which is confirmed to meet the requirements of IS 6380:1984. The general-purpose elastomer compound that is heat-resistant and oil-resistant should be SE 3 type, which is confirmed to meet the requirements of IS 6380:1984.




NAME MODEL USAGE FEATURE
Lightweight rubber cable YQ,YQW Household appliances, small electric equipment Soft, light and good bending performance;
YQW has weather resistance and certain oil resistance
Medium-sized rubber cable YZ,YZW Industry, widely used in agricultural electrification YZW has weather resistance and certain oil resistance
Heavy rubber cable YC,YCW Used in port machinery, searchlights, large-scale water conservancy irrigation and drainage stations, etc. Has good versatility, complete series specifications, good performance and stability;
YCW has weather resistance and certain oil resistance
Waterproof rubber cable JHS,JHSB Diving motor Good bending performance, can withstand frequent movement
Welding machine rubber cable YH,YHF Electric welding machine /
/ YHD Tinned power cable for field use /





Carbon dioxide cutting torch cable application


1- Used for CO2/MIG/MAG welding gun.

2-Special cable for the secondary side of the welding machine

3- The connector between the electrode holder and the welding machine.

Technical parameters

Welding cable Standard: IEC 60245
Nominal section area No./diameter of stranding Nominal sheath thickness (mm) Overall diameter Max. conductor resistance at 20℃
(mm2) (mm) (mm) (Ω/km)
    Min. Max. Without tinned With tinned
10 322/0.20 1.8 7.5 9.7 1.91 1.95
16 513/0.20 2 9.2 11.5 1.16 1.19
25 798/0.20 2 10.5 13 0.758 0.78
35 1121/0.20 2 11.5 14.5 0.536 0.552
50 1596/0.20 2.2 13.5 17 0.379 0.39
70 2214/0.20 2.4 15 19.5 0.268 0.276
95 2297/0.20 2.6 17 22 0.198 0.204
120 1702/0.30 2.8 19 24 0.161 0.164
150 2135/0.30 3 21 27 0.129 0.132
185 1443/0.40 3.2 22 29 0.106 0.108
240 1908/0.40 3.8 25 35 0.0801 0.0817



Carbon dioxide cutting torch cable features

1. IEC, ASTM, DIN, BS standards; ISO, CCC, KEMA, CE, TUV certification;

2. Low resistance, low voltage;

3. The long-term working temperature is 65℃;

4. Environmental protection, non-toxic smell;

5. Excellent bending performance allows it to move and twist frequently;

6. It has the ability of heat resistance, aging resistance, light weight and long-term use;

7. Our mass production provides customers with higher quality and lower prices.

8 . Our company uses irradiation technology to improve all aspects of rubber performance.

9. As a sheath material, rubber is specially used for welding cables, with excellent tear resistance and wear resistance
