MB24KD low temperature resistant CO2 gas shielded welding welding cable
MB24KD comes standard with 3 M 4 M 5 M welding gun

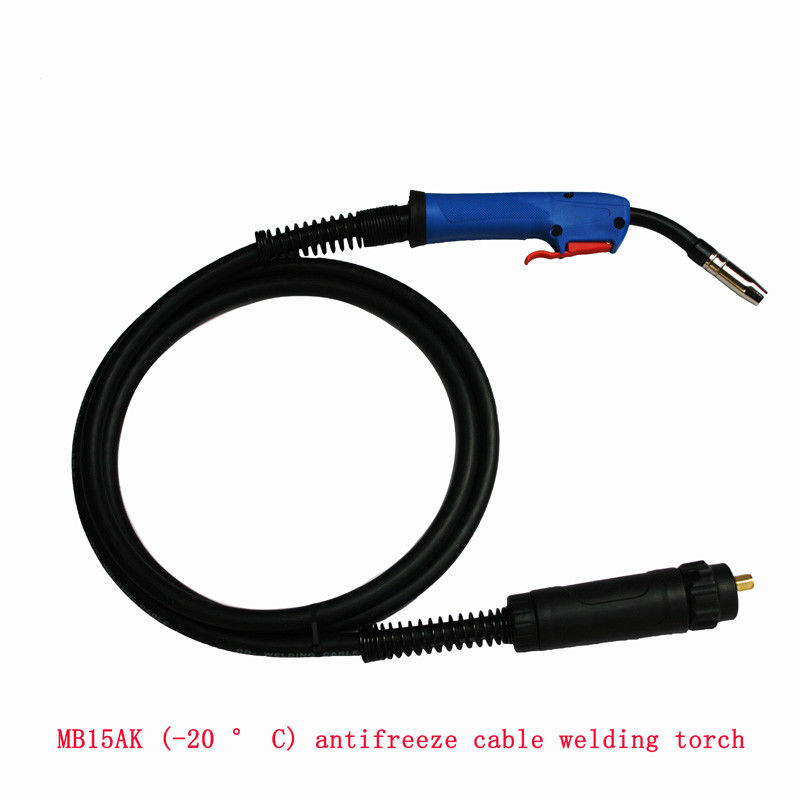

MB manual series welding gun (MB 15AK) gas cooling (flexible cable)
Technical parameters: According to EN 50078
Product Type: MB-15AK CO2 welding gun (natural cooling)
Rated value: Temporary load rate 180A / CO2 / 150A mixed gas M21 DIN -EN 439/60%
Wire diameter:
The 0.6-1.0 (0.9) mm rated power supply complies with the VDE standard and has voltage/current parameters (U = 14 + 0.05xl). In pulse welding, the rating is reduced by 35%.
Configuration introduction: low-resistance oxygen-free copper, ultraviolet high-temperature radiation cable (characteristics: stretching, wear, corrosion and climate influence); all copper parts are sensitive to phosphor copper switch core; European-style interface is easy to install; ergonomically designed welding is easy Operation; length 3-6 meters optional; welding machine model 100A-180A;
| NAME |
MODEL |
USAGE |
FEATURE |
| Lightweight rubber cable |
YQ,YQW |
Household appliances, small electric equipment |
Soft, light and good bending performance; |
| YQW has weather resistance and certain oil resistance |
| Medium-sized rubber cable |
YZ,YZW |
Industry, widely used in agricultural electrification |
YZW has weather resistance and certain oil resistance |
| Heavy rubber cable |
YC,YCW |
Used in port machinery, searchlights, large-scale water conservancy irrigation and drainage stations, etc. |
Has good versatility, complete series specifications, good performance and stability; |
| YCW has weather resistance and certain oil resistance |
| Waterproof rubber cable |
JHS,JHSB |
Diving motor |
Good bending performance, can withstand frequent movement |
| Welding machine rubber cable |
YH,YHF |
Electric welding machine |
/ |
| / |
YHD |
Tinned power cable for field use |
/ |
1.MIG welding torch
Binzel, Bernard, Tweco, Esab, Lincoln/Tregaskiss, Panasonic/OTC, MAXI, Kemppi, Fronius, Mechafin.
2. TIG welding torch
WP-24, WP-9, WP-17, WP-26, WP-20, WP-18, etc.
3. Plasma cutting torch Trafimet, Cebora, Panasonic / Esab
Technical parameters
| Welding cable Standard: IEC 60245 |
| Nominal section area |
No./diameter of stranding |
Nominal sheath thickness (mm) |
Overall diameter |
Max. conductor resistance at 20℃ |
| (mm2) |
(mm) |
(mm) |
(Ω/km) |
| |
|
Min. |
Max. |
Without tinned |
With tinned |
| 10 |
322/0.20 |
1.8 |
7.5 |
9.7 |
1.91 |
1.95 |
| 16 |
513/0.20 |
2 |
9.2 |
11.5 |
1.16 |
1.19 |
| 25 |
798/0.20 |
2 |
10.5 |
13 |
0.758 |
0.78 |
| 35 |
1121/0.20 |
2 |
11.5 |
14.5 |
0.536 |
0.552 |
| 50 |
1596/0.20 |
2.2 |
13.5 |
17 |
0.379 |
0.39 |
| 70 |
2214/0.20 |
2.4 |
15 |
19.5 |
0.268 |
0.276 |
| 95 |
2297/0.20 |
2.6 |
17 |
22 |
0.198 |
0.204 |
| 120 |
1702/0.30 |
2.8 |
19 |
24 |
0.161 |
0.164 |
| 150 |
2135/0.30 |
3 |
21 |
27 |
0.129 |
0.132 |
| 185 |
1443/0.40 |
3.2 |
22 |
29 |
0.106 |
0.108 |
| 240 |
1908/0.40 |
3.8 |
25 |
35 |
0.0801 |
0.0817 |
High-quality main cable
The cable is made of copper wire, which has very low oxidation and high purity. The outer insulating rubber diameter is exposed to high temperature ultraviolet rays. It has the characteristics of tensile resistance, wear resistance, corrosion resistance, strong weather resistance and longer service life. Suitable for use at low temperatures.
All accessories are made of copper.
The conductive parts and protective parts are made of high-quality copper to ensure the continuity of the welding process.
Every part of the product is of high quality.
The most important thing for a good welding gun is to use a stabilizer, and use high-quality accessories on the basis of the stabilizer.
