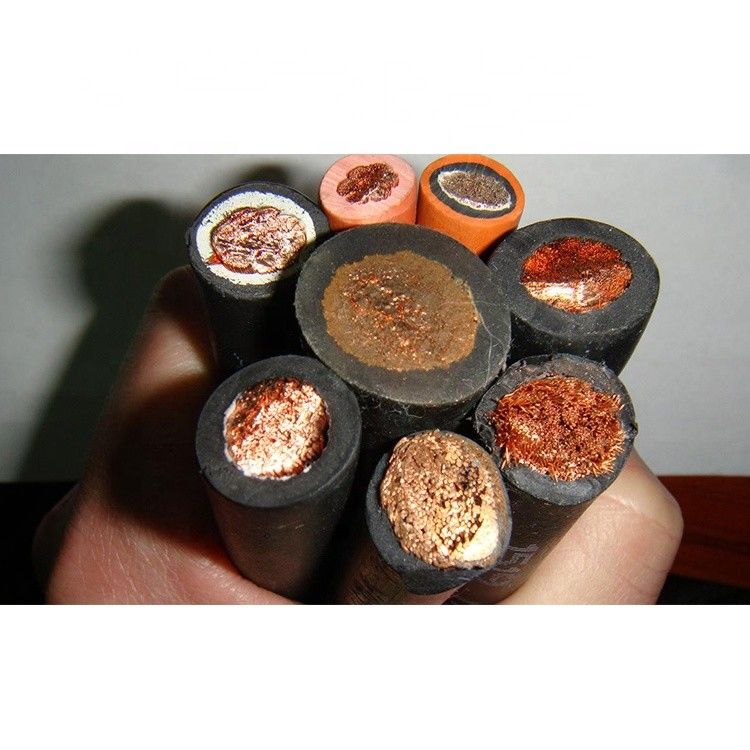

We provide flexible copper welding cables, sometimes used as battery cables. The welding cable can be used as a battery cable, but it is a better and more flexible cable made of rubber jacket instead of PVC.
Our welding cables are made of 30 AWG copper wire for greater flexibility. Common AWG sizes are 6, 4, 2, 1, 1 / 0, 2 / 0, 3/0 and 4/0. Welding cables are power cables commonly used for power applications and secondary withstand voltage welding leads.
Connect welding machine with welding cable
When connecting a welding machine with a welding cable, you must first understand the working principle of the equipment. This will help you avoid accidents and enable you to produce better products.
The welding cable is used to supply power to the secondary circuit of the electric welding generator. This circuit is used to control the electrode that discharges the charge to perform the welding process. The welding cable is made of soft copper wire and wrapped with a protective cover to resist flame, oil, abrasion and heat.
When using electric welding equipment, two welding cables are required; one for connecting the power source and the other for the electrodes. Most welding generators require auxiliary power during operation. The welding cable does not generate any power for the welding generator. However, the electrodes still need to be functional.
If you want to use a welding cable to connect the welding machine, make sure that the two are completely connected to each other, as this may cause dangerous failures or more serious electrical accidents. You can purchase welding cables with length and diameter dimensions. It is sold in the following different market segments: per foot, 25 feet, 50 feet and 100 feet. The cable has 2 different colors (black and red) and 8 different wire gauges, so you can choose any one you like.
The welding generator is a very powerful device. Unless you know how to use an electric welding machine, it is best to use a professional electric welding machine to complete your welding project instead of trying it yourself, because this may be life-threatening. However, once you get used to the welding process, it is not difficult. You can try to start with small projects, or you can practice on scrap metal to get the feel of using a welding generator.
Flexible welding Cable Specification:
| Conductor Nominal Section (mm2) | Conductive Core | Thickness of Section Sheath (mm) | Average Outer Diameter (mm2) | 20oC Conductor Resistance≤(Ω/km) | Reference Weight(kg/km) |
| Number/Diameter of Core(mm) | Min | Max | YH | YHF |
| 25 | 798/0.20 | 2 | 10.5 | 13 | 0.758 | 316.6 | 331.15 |
| 35 | 1121/0.20 | 2 | 11.5 | 14.5 | 0.536 | 426 | 439.87 |
| 50 | 1596/0.20 | 2.2 | 13.5 | 17 | 0.379 | 592.47 | 610.55 |
| 70 | 2214/0.20 | 2.4 | 15 | 19.5 | 0.268 | 790 | 817.52 |
| 95 | 2997/0.20 | 2.6 | 17 | 22 | 0.198 | 1066.17 | 1102.97 |
Special function:
Comply with SAW J1127
Resistant to abrasion, cutting, tearing, ozone, flame, grease, oil, water, acid, diesel and gas
Order mark
Made in China
Rated 600V
