| MOQ: | 500.0 Meter/Meters |
| Price: | $0.10 - $5.00 / Meter |
| Standard Packaging: | Flexible welding Cable The package is usually wooden drum or steel wooden drum or coil.also according to customer's requirement. |
| Supply Capacity: | 100 Kilometer/Kilometers per Month |
Black EPR Insulation 120mm2 Electric Welding Cable
Product Description
1. Conductor: Class 5 flexible plain copper to BS EN 60228:2005(previously BS6360)
2. Insulation: EPR(Ethylene Propylene Rubber) Type E14 to BS7655
3. Sheath: PCP(Polychioroprene) Type EM3 to BS7655
4. Sheath Color: Black
5. Voltage: 450/750V
6. Temperature Rating: conductor operation temperature -30°C to +60°C(85°C max)
7. Minimum Bending Radius: Up to 25mm2:6xoverall diameter;
8. Above to 25mm2: 8x overall diameter
9. Standards: BS7919 CENELEC HD22 4S4
Flexible welding Cable Specification:
|
Nominal |
Maximum |
Total |
Mean overall |
Maximum conductor |
||
|
cross sectional |
diameter of |
thickness |
diameter |
resistance at 20℃ |
||
|
area of |
wires in |
of covering |
|
|
||
|
conductor |
conductor |
Specified value |
Lower limit |
Upper limit |
Tinned wires |
Untinned wires |
|
mm2 |
mm |
mm |
mm |
mm |
Ω/km |
Ω/km |
|
16 |
0.21 |
2 |
8.8 |
11 |
1.19 |
1.16 |
|
25 |
0.21 |
2 |
10.1 |
12.7 |
0.78 |
0.758 |
|
35 |
0.21 |
2 |
11.4 |
14.2 |
0.552 |
0.536 |
|
50 |
0.21 |
2.2 |
13.2 |
16.5 |
0.39 |
0.379 |
|
70 |
0.21 |
2.4 |
15.3 |
19.2 |
0.276 |
0.268 |
|
95 |
0.21 |
2.6 |
17.1 |
21.4 |
0.204 |
0.198 |
|
120 |
0.31 |
2.8 |
19 |
24 |
0.164 |
0.161 |
|
150 |
0.31 |
3 |
21 |
27 |
0.132 |
0.129 |
|
185 |
0.41 |
3.2 |
22 |
29 |
0.108 |
0.106 |
|
240 |
0.41 |
3.8 |
25 |
35 |
0.0817 |
0.0801 |

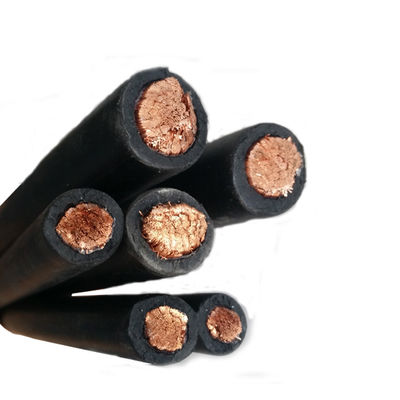

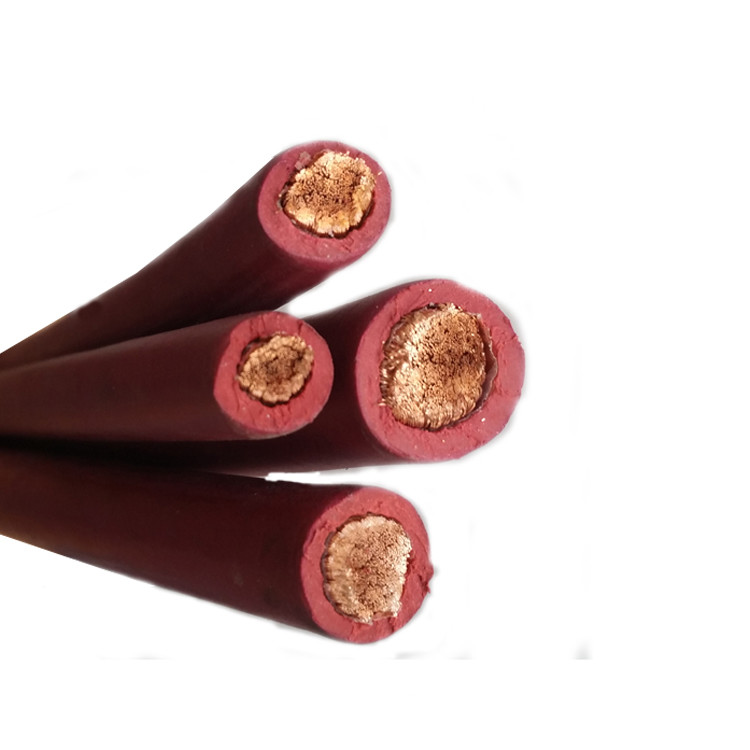

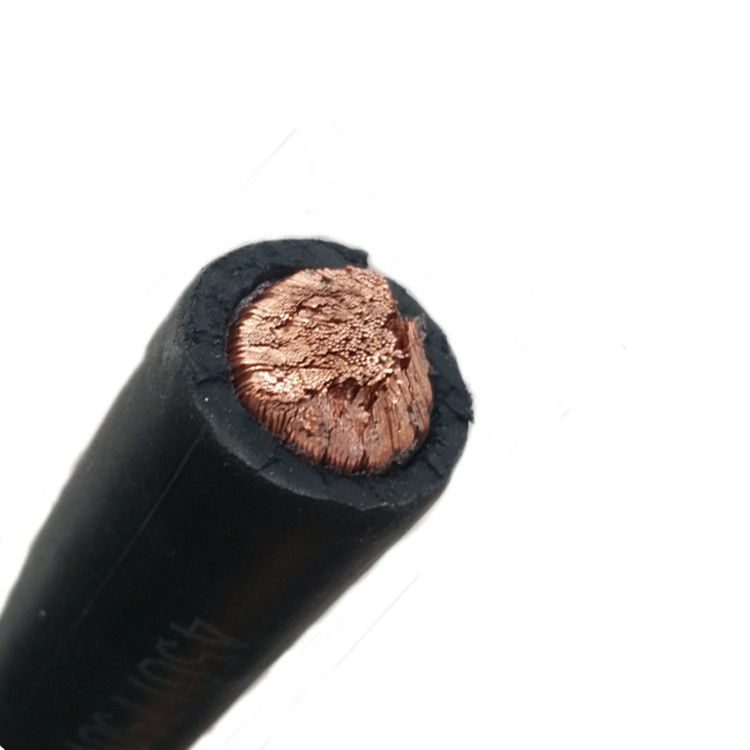

Flexible welding Cable Reference Pictures:
FAQ
1. The time you can get the quotation after the sending the inquiry
In the working time, our sales manager will send quotation to your email box within 1 or 2 hours. On the contrast, we will send you email within 12 hours. Therefore, email is needed to let us know, then we can contact with you.
2. For Sample
We can provide you the sample for free, if you want to check the cable, you can ask the sales manager.
3.Payment
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight
4. what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirement.
