Qingdao Yilan Cable Co., Ltd.

16mm Flexible Welding Cable

Product Details:
Place of Origin: Henan, China
Brand Name: HOLD-ONE
Model Number: flex welding cable
Payment & Shipping Terms:
Minimum Order Quantity: 500.0 Meter/Meters
Price: $0.10 - $5.00 / Meter
Packaging Details: The flex welding cable package is usually wooden drum or steel wooden drum or coil.also according to customer's requirement.
Supply Ability: 100 Kilometer/Kilometers per Month
  • Detail Information
  • Product Description

Detail Information

Insulation Material: Rubber Type: Rubber Cable
Application: Construction Conductor Material: Copper/Aluminum
Jacket: Rubber Hot Sale Size: 25mm,35mm,50mm,70mm,95mm,150mm
Other Core: Single Core Certificate: ISO9001/CCC
MOQ: 1000m Standard: IECA, BS, DIN,
Sample: Contact To Get Free Sample Warranty: 100%quanlified
Price: Get Within 12 Hours Color: Black, Yellow, As You Request
High Light:

16mm Flexible Welding Cable


50mm Flexible Welding Cable


16mm ultra flex welding cable

Product Description

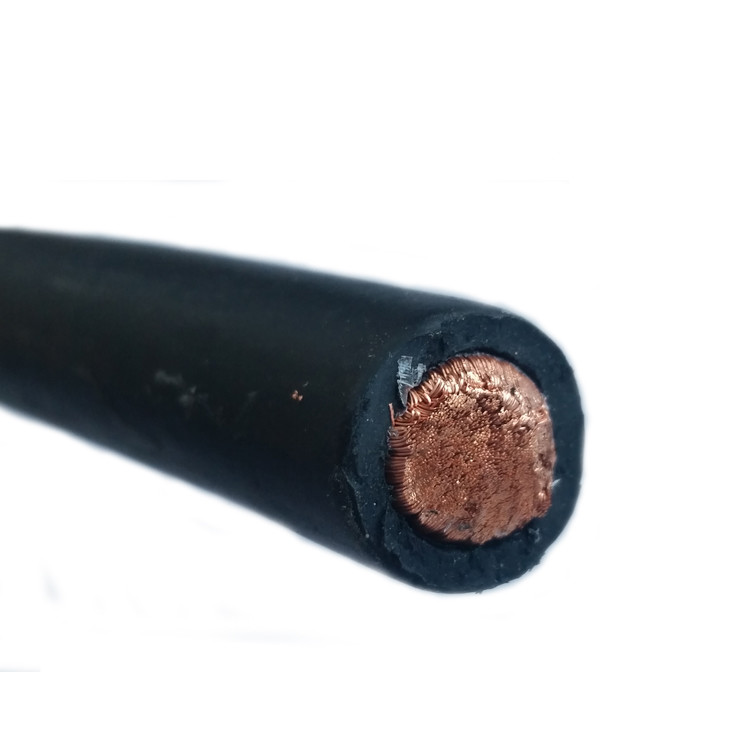

16mm Flexible Welding Cable


Product Description

Flex welding cable are suitable for the connection between welding equipment and welding tools used in manual and automatic application. As well as welding robots on assembly lines used by the shipbuilding and automobile industries. Welding flex cable is strong and durable. 600 volt welding cable is designed to carry high current under harsh operating conditions and to withstand the high temperature implied by their purpose. If you just need to wholesale welding cable, pls contact us without hesitate.

16mm Flexible Welding Cable 0


flexible wire pure 10mm 16mm 50mm welding cable for sales Construction:
1. Conductor : Flexible bare annealed copper wire or tinned copper wire
2. Insulation: PVC or Rubber Material or EPR
3. Sheath: Natural rubber, Horoprene rubber or other syntheitic rubber,PVC or or CSP.
4. No.Cross-section: 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120m2, 150mm2, 185mm2 , 240mm2.
5. AWG: 6, 4, 2, 1, 1/0, 2/0, 3/0, 4/0, 250, 350, 500
6. Color: Choice of Black, Orange, Red or Yellow Blue jacket, single & double insulated.

16mm Flexible Welding Cable 1


 Welding Cable to ASTM Standard:


AWG Nominal stranding   Nominal overall diameter   Approx. net weight (LBS/1000ft) Max. conductor resistance at 20℃(Ω/km)
  AWG mm inch mm
6 259/30 259/0.254 0.43 10.92 152 1.33
4 418/30 418/0.254 0.475 12.07 215 0.84
2 646/30 646/0.254 0.54 13.72 296 0.53
1 836/30 836/0.254 0.58 14.73 360 0.42
1/0 1032/30 1032/0.254 0.615 15.62 424 0.33
2/0 1290/30 1290/0.254 0.655 16.64 513 0.26
3/0 1672/30 1672/0.254 0.72 18.29 644 0.21
4/0 2066/30 2066/0.254 0.78 19.81 824 0.17



1. The time you can get the quotation after the sending the inquiry

In the working time, our sales manager will send quotation to your email box within 1 or 2 hours. On the contrast, we will send you email within 12 hours. Therefore, email is needed to let us know, then we can contact with you.

2. For Sample

We can provide you the sample for free, if you want to check the cable, you can ask the sales manager.


Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight

4. what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirement.


If you have any other question, you can send us inquiry, we will reply to you as soon as possible
