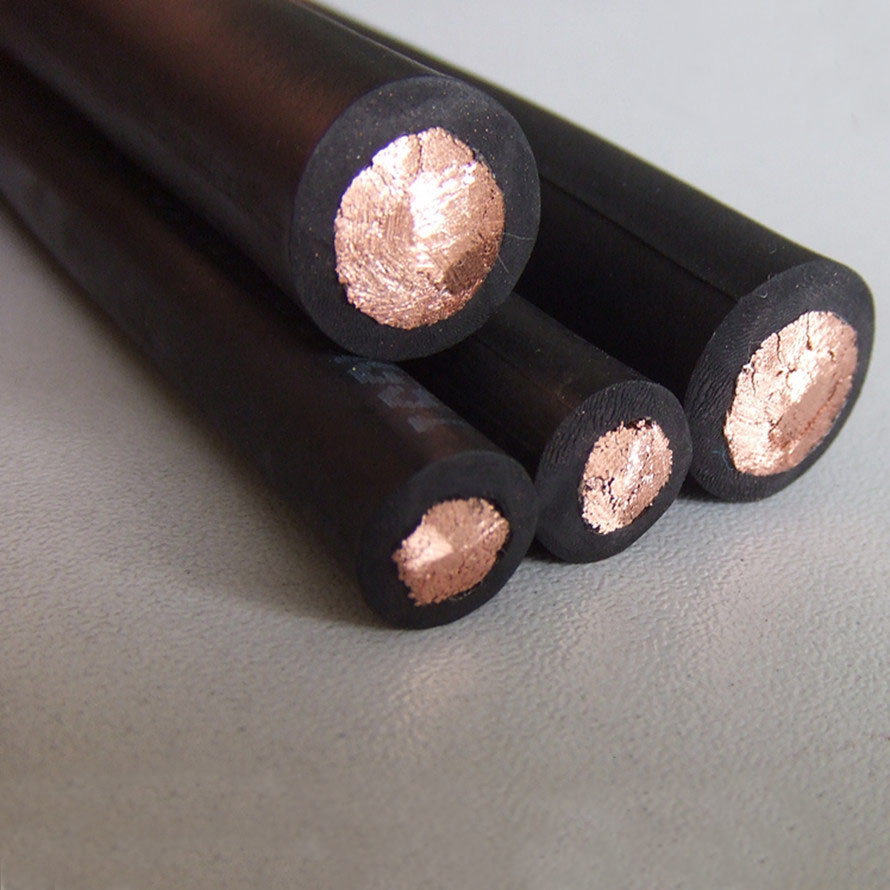

70mm2 Flexible Welding Cable

70mm2 Flexible Welding Cable

Standard

IEC 60245

Application

EPR Sheath Flexible Welding Cable 70mm2 is used for connecting the electrode to the welding machine.The products available include:

1) 60245IEC81 - rubber sheathed arc welding electrode cable

2) 60245IEC82 - polychloroprene or other equivalent synthetic elastomer sheathed arc welding electrode cable

Product Description

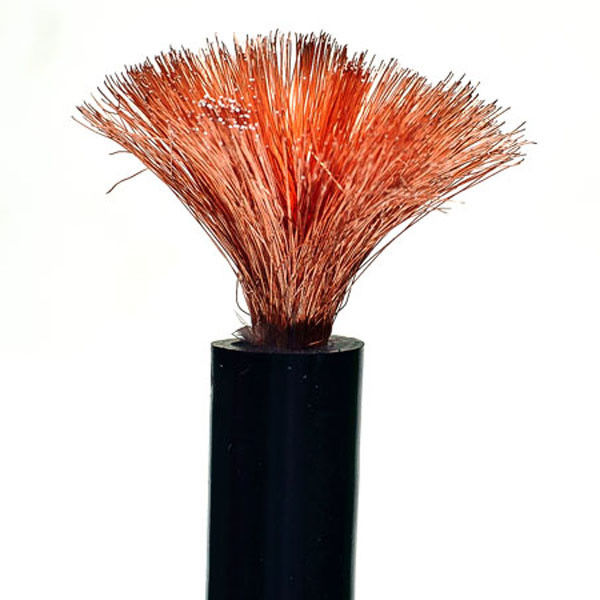

1) Conductor: class 5 copper, tinned or plain

2) Nominal area: 120mm2

3) Conductor strands/dia.: 1702/0.30

4) Nominal jacket thickness: 2.8mm

5) Overall dia.: 19.0-24.0mm

6) Approx. mass: 1392 kg/km

7) Max D.C. resistance at 20°c: 0.161 Ω/km for plain copper and 0.164 Ω/km for tinned copper
