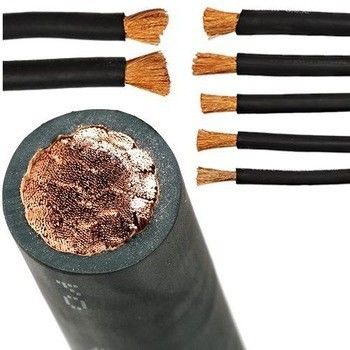

Low Voltage OFC Core 750V Flexible Welding Cable
Construction of H01N2-D Neoprene Jacket Copper Welding Cable
Conductor : Plain annealed copper wire class 5.
Separator : Polyester film insulation layer.
Jacket : Neoprene Rubber
Copper Welding Cable Supplied by Ronghua Factory, already Passed CE certificate.
Standard: EN50525-2-11, IEC60245
Operating Voltage: 600V MAX
Temperature rating: -30 ℃ to 90℃
Sheath Color: Black , Red, Orange, or as your requirements.
Feature:
Resistant to cuts, tears and abrasion in addition to moisture.
Welding Wire offers good color retention along with great flexibility.
Application:
Welding cable can be used as entertainment or stage lighting cables for movie theatres, lighting and sound systems, and communication vans. Other possible uses for welding cable include battery cables for cars, inverter cables, and as a cheaper alternative to pendant/reeling cable on hoists and cranes. For example, many solar power installations use welding cable extensively to connect solar panels, battery banks, and converters.
Spec Sheet of Copper Welding Cable
|
Nominal section area (mm2) |
Max. diameter of wire (mm) |
Coated layer thickness (mm) |
Sheath thickness in double coated layers(mm) |
Average outer diameter (mm) |
Max. resistance at 20℃ (Ω/km) |
||
|
Min. |
Max. |
Tin coated wire |
Copper wire |
||||
|
16 |
0.21 |
2.0 |
1.3 |
9.2 |
11.5 |
1.190 |
1.160 |
|
25 |
0.21 |
2.0 |
1.3 |
10.5 |
13.0 |
0.780 |
0.758 |
|
35 |
0.21 |
2.0 |
1.3 |
11.5 |
14.5 |
0.552 |
0.536 |
|
50 |
0.21 |
2.2 |
1.5 |
13.5 |
17.0 |
0.390 |
0.379 |
|
70 |
0.21 |
2.4 |
1.6 |
15.5 |
19.5 |
0.276 |
0.268 |
|
95 |
0.21 |
2.6 |
1.7 |
18.0 |
22.0 |
0.204 |
0.198 |
Packaging:
Material:
Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Shipping:
Port: Qingdao, or other ports as per your requireents.
Sea freight:
FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.
Our products are sold all over the world, you can rest assured.
