Product Details:
|
|
| Place of Origin: | Henan, China |
|---|---|
| Brand Name: | HOLD-ONE |
| Model Number: | Welding Cable |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1000 - 1999 Meters |
| Price: | $1.55 |
| Packaging Details: | Wooden spool packing, or according to clients' request. |
| Supply Ability: | 100000 Kilometer/Kilometers per Month |
|
Detail Information |
|||
| Insulation Material: | Rubber | Type: | Low Voltage |
|---|---|---|---|
| Application: | Machine | Conductor Material: | Copper |
| Jacket: | Rubber | Color: | Black Orange Red Or Blue |
| Certificate: | VDE ISO TUV | Conductor: | Stranded Copper |
| Voltage: | 450/750V | Product Name: | Welding Cable |
| Insulation: | Rubber PVC | Sheath: | Rubber |
| Packing: | 500M/Reel | Conductor Type: | Strandeded |
| Sample: | Free | Port: | Qingdao |
| High Light: | 10mm2 Arc Welding Cable,2/0 Arc Welding Cable,10mm2 arc welding leads |
||
Product Description

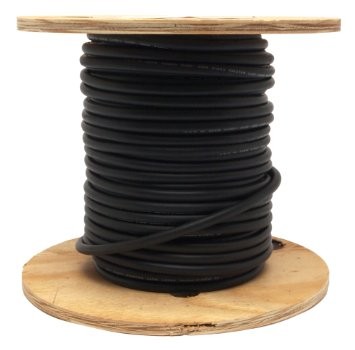

Super Flexible Rubber 2/0 10mm2 Arc Welding Cable
Product Description
1. Best price in same quality.
2. Best quality in same price
3. Good after-sales service

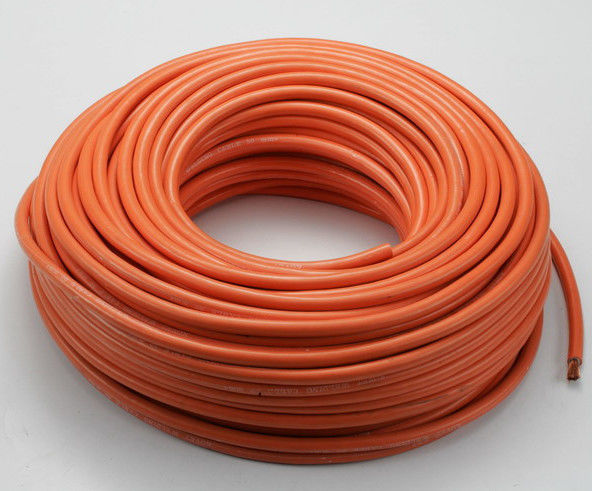

Welding Cable
Applications
The cables are suitable for welding machine as secondary earth wire with secondary side to-ground volatage not more than 200V AC and impulse voltage peak 400V DC, or for connecting electrode holders
Continuous operating temperature ≤60°C.
Manufacturing standards
ASTM ICEA BS DIN IEC GB AS/NZS etc.
|
Description |
International type |
Chinese type |
|
Welding cable with |
H01N2-D |
60245 IEC 81 YH |
|
Welding cable with |
60245 IEC 82 YHF |
Welding Cable Technical Parameter
Welding Cable
H01N2-D 60245 IEC 81 (YH) 60245 IEC 82(YHF)
|
Nom. |
Max. Dia. |
Nom. Cover Thickness mm |
Average O.D. mm |
Maximum DC |
||
|
Min. |
Max. |
Tinned copper |
Untinned copper |
|||
|
10 |
0.21 |
2.0 |
7.7 |
9.7 |
1.95 |
1.91 |
|
16 |
2.0 |
8.8 |
11.0 |
1.24 |
1.21 |
|
|
25 |
2.0 |
10.1 |
12.7 |
0.795 |
0.780 |
|
|
35 |
2.0 |
11.4 |
14.2 |
0.565 |
0.554 |
|
|
50 |
2.2 |
13.2 |
16.5 |
0.393 |
0.386 |
|
|
70 |
2.4 |
15.3 |
19.2 |
0.277 |
0.272 |
|
|
95 |
2.6 |
17.1 |
21.4 |
0.210 |
0.206 |
|
|
120 |
0.51 |
2.8 |
19.2 |
24.0 |
0.164 |
0.161 |
|
150 |
3.0 |
21.1 |
26.4 |
0.132 |
0.129 |
|
|
185 |
3.2 |
23.1 |
28.9 |
0.108 |
0.106 |
|
Welding Cable
H01N2-E 60245 IEC 81(YH) 60245 IEC 82 (YHF)
|
Nom. Area |
Max. Dia. |
Nom. Cover |
Average O.D. mm |
Maximum DC |
||
|
Min. |
Max. |
Tinned copper |
Untinned copper |
|||
|
10 |
0.21 |
1.2 |
6.2 |
7.8 |
1.95 |
1.91 |
|
16 |
1.2 |
7.3 |
9.1 |
1.24 |
1.21 |
|
|
25 |
1.2 |
8.6 |
10.8 |
0.795 |
0.780 |
|
|
35 |
1.2 |
9.8 |
12.3 |
0.565 |
0.554 |
|
|
50 |
1.5 |
11.9 |
14.8 |
0.393 |
0.386 |
|
|
70 |
1.5 |
13.6 |
17.0 |
0.277 |
0.272 |
|
|
95 |
1.8 |
15.6 |
19.5 |
0.210 |
0.206 |
|
|
120 |
0.51 |
1.8 |
17.2 |
21.6 |
0.164 |
0.161 |
|
150 |
1.8 |
18.8 |
23.5 |
0.132 |
0.129 |
|
|
185 |
1.8 |
20.4 |
25.5 |
0.108 |
0.106 |
|
Welding Cable
Welding Cable
Packing&Shipping
Welding Cable
