| MOQ: | 3000 Meter/Meters |
| Price: | $0.10 - $10.00 / Meter |
| Standard Packaging: | 1000meters/ plastic spool and wooden drum or according to your requirement |
| Supply Capacity: | 1000000 Kilometer/Kilometers per Month |
Welding Machine Copper 50mm2 IEC60245 Welding Lead Wire
1.Product Description:
Construction:
1).Conductor:
a)Annealed class 5 flexible copper wire
b)Overall diameter of single wire: 0.2mm2
c)NO. of copper wire: 513
2).Insulation:
a)Neoprene
b)Thickness of insulation:2.0mm
c)Heat resistant,Oil resistant and flame retardant
Technical Data:
1).Max.operating temperature:
a)+75°C (Used as power transmission)
b)+105°C(Used as welding cable)
2).Rated voltage:
a)600V (Used as power transmission)
b)220V (Used as welding cable)
3).Other data:
a)Overall diameter: 8.8~11.0mm
b)Approx weight: 230Kg/Km
c)Conductor structure: 513/0.2
Application:
a).Secondary side connection of power sources where heavy duty portable supply in dry wet and oi environment.Such as motors,generators,transformers all kinds of flexible connection are applicable.
b).Note:Can be supplied in any size if required

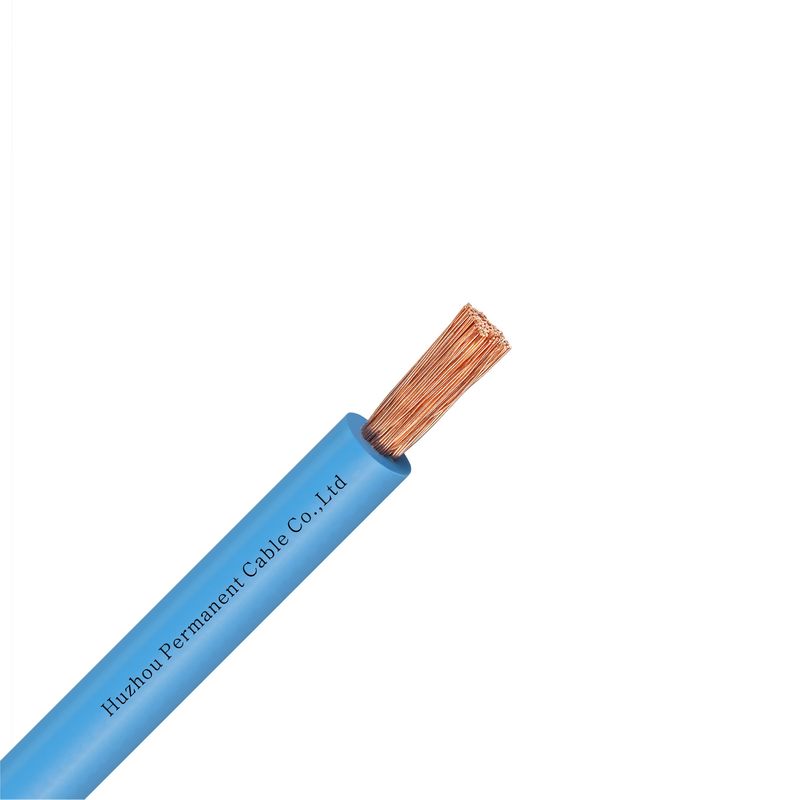

2.Product Pictures:
3.Specification Size and Technical Data:
|
Normal area (mm2) |
Structure (mm) |
Insulation thickness (mm) |
Approx overall dia. (mm) |
|
10 |
322/02 |
2.0 |
8.10 |
|
16 |
513/0.2 |
2.0 |
10.30 |
|
25 |
798/0.2 |
2.0 |
11.75 |
|
35 |
1121/0.2 |
2.0 |
13.00 |
|
50 |
1596/0.2 |
2.2 |
15.00 |
|
70 |
2214/0.2 |
2.4 |
17.00 |
|
95 |
2997/0.2 |
2.6 |
19.50 |
|
120 |
1702/0.3 |
2.8 |
21.00 |
|
150 |
2135/0.3 |
3.0 |
23.50 |
|
185 |
1443/0.4 |
3.2 |
25.50 |
|
240 |
1912/0.4 |
3.4 |
28.50 |
4. Product Standard and Certificates:
(1). As a leading manufacturer of Wire & Cable, our products have passed through strict
inspection by Bureau of Quality Supervision to ensure the production of eligible product.
(2). By controlling the quality of products and maintaining a safe working environment, we
have passed the China Compulsory Certification and gained many other certificates,
such as CE, SGS and RoHS.
(3). Our products cover all range of cables from house wiring to power cable, all of which
have obtained widely agreement from our customers across the world.
(4). Our export trading area covers Asia, Middle East, South America, Africa and Europe.
