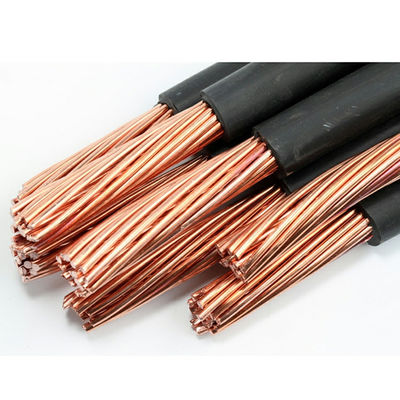

Black Rubber Sheath 200v 95mm2 Flexible Welding Cable
Product Description
1.Usages:
This product is suitable for the voltage to the ground not more than 200v and its pulsating direct current peak value 400v welding machine electric welding pliers and so on.
2.Guide & Selection :
Welding cable are generally used for connecting the electrode to the welding machine .Howervr welding cable can be used for a varity of other applications that require exteremely flexible and durable cables with high ampacities.
3.What is Welding Cable?
Welding cable is designed for use in electric arc-welding machines to power an electrode ,a specially designed metal rod,that conducts a charge.The charge carried by the electrode is needed to produce an electric arc,the heat source,between the electrode and the metals or other materials ,being welded.
4.Model,Names and Work in Temperature(see table 1):
Model |
Name |
Working Temperature of core |
60245IEC81(YH) |
Natural rubber sheath for welding machine cable |
65℃ |
60245IEC82(YHF) |
Chloroprene rubber or other elastomer sheath welding machine cable |
65℃ |
5.Specifications,Size,Weight and Technological Data(see table 2):
Conductive Nominal Section |
Conductive core |
Thickness of section sheath |
Average outer diameter(mm) |
20℃conductor resistance |
Reference weight(kg/km) |
||
mm2 |
Number diameter of core(mm) |
mm |
Min |
Max |
≤(Ω/km) |
YH |
YHF |
16 |
513/0.20 |
2.0 |
9.2 |
11.5 |
1.16 |
218.9 |
230.44 |
25 |
798/0.20 |
2.0 |
10.5 |
13.0 |
0.758 |
316.6 |
331.15 |
35 |
1121/0.20 |
2.0 |
11.5 |
14.5 |
0.536 |
426 |
439.87 |
50 |
1596/0.20 |
2.2 |
13.5 |
17.0 |
0.379 |
592.47 |
610.55 |
70 |
2214/0.20 |
2.4 |
15.0 |
19.5 |
0.268 |
790 |
817.52 |
95 |
2997/0.20 |
2.6 |
17.0 |
22.0 |
0.198 |
1066.17 |
1102.97 |
6.Delivery Requirements:
If cable packed in circle,it should be 100m in length.If packed in bundle,it should be no less than 100m.If short distance,no less than 20m.If mutual agreement is made,everything will be done according to agreement.
7.Welding Cable Types:
A.Single layer
B.Double Layer

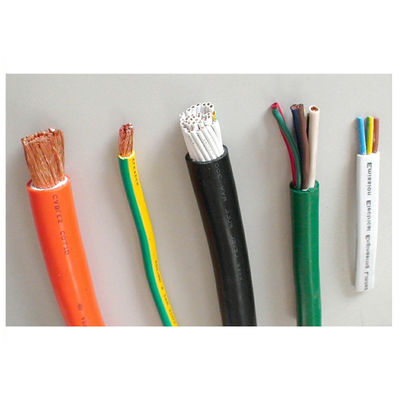

8.Related Product Images:
