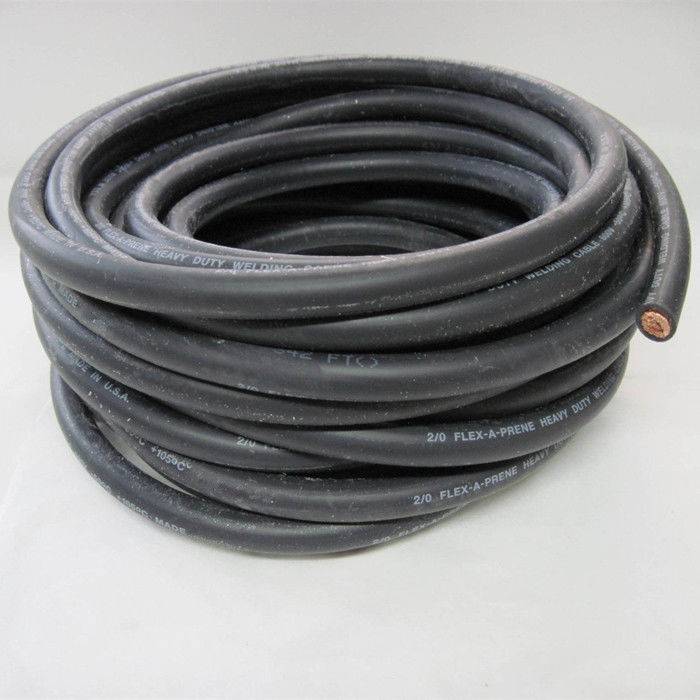

Low Voltage 25mm2 35mm2 2 Gauge Welding Wire
Product Description
Application:
Welding Cable Suitable for the welding machine whose voltage to the ground is not more than 200V and pulsating current value: 400V
Specification:
|
Model |
Name |
Main applications |
Working temperature of core ≤0C |
|
YH |
Natural Rubber Sheath for Welding Cable |
Always used indoor |
65 |
|
YHF |
Neoprene Rubber Sheath Welding Cable |
Always used outdoor |
65 |
|
Synthetic elastomer Sheath Welding Cable |
Characteristis:
1.The cable has high flexibility properties.
2.The sheath shall be a natural rubber compound or a chloroprence rubber compound.
3.The chloroprene rubber sheath is heat and oil resistant and flame retardant.
4.The permissible continuous operating temperature 65°C
|
Conductor Nominal Section (mm2) |
Conductive Core |
Thickness of Section Sheath (mm) |
Average Outer Diameter (mm) |
20oC Conductor Resistance ≤(Ω/km) |
Reference Weight(kg/km) |
||
|
Number/Diameter of Core(mm) |
Min |
Max |
YH |
YHF |
|||
|
10 |
322/0.20 |
1.8 |
7.5 |
9.7 |
1.91 |
146 |
153.51 |
|
16 |
513/0.20 |
2.0 |
9.2 |
11.5 |
1.16 |
218.9 |
230.44 |
|
25 |
798/0.20 |
2.0 |
10.5 |
13.0 |
0.758 |
316.6 |
331.15 |
|
35 |
1121/0.20 |
2.0 |
11.5 |
14.5 |
0.536 |
426 |
439.87 |
|
50 |
1596/0.20 |
2.2 |
13.5 |
17.0 |
0.379 |
592.47 |
610.55 |
|
70 |
2214/0.20 |
2.4 |
15.0 |
19.5 |
0.268 |
790 |
817.52 |
|
95 |
2997/0.20 |
2.6 |
17.0 |
22.0 |
0.198 |
1066.17 |
1102.97 |
|
120 |
1702/0.30 |
2.8 |
19.0 |
24.0 |
0.161 |
1348.25 |
1392.55 |
|
150 |
2135/0.30 |
3.0 |
21.0 |
27.0 |
0.129 |
1678.5 |
1698.72 |
|
185 |
1443/0.40 |
3.2 |
22.0 |
29.0 |
0.106 |
1983.8 |
2020.74 |
Packing:
100m/roll PE Film, 300m,500m,1000m/roll Wooden Reel, or as your requirements.
