Detail Information
Insulation Material:	Rubber / Pvc	Type:	Low Voltage
Application:	Industrial	Conductor Material:	Copper
Jacket:	Rubber / Pvc	Certificate:	ISO CCC CE SGS BV
Sheath:	Rubber/pvc	Conductor:	Copper/tinned Copper/aluminum Alloy
Color:	Black Grey Orange	Sample:	Free
Armour:	Unarmoured	Insulation:	Rubber / Pvc
Product Name:	Super Flexible 1 AWG 2AWG 3Awg 4Awg Welding Cable	Rated Voltage:	100/100V
Core:	Single Core	Port:	TIANJIN SHANGHAI QINGDAO
High Light:	3Awg Welding Machine Cable Wire , 2AWG Welding Machine Cable Wire , 3Awg ofc welding cable

Product Description

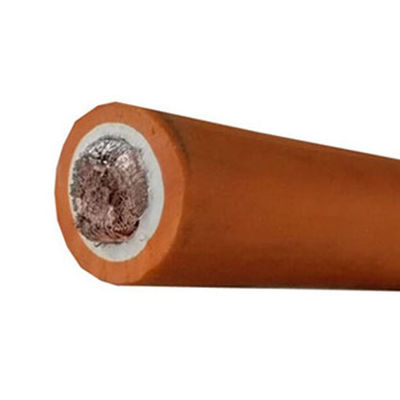

Super Flexible 2AWG 3Awg Welding Machine Cable Wire

Product Description

Service Conditions

This product is suitable for the welding machine whose voltage to the ground is not more than 200V and

pu lsating current value is 400V.

Model, Names Main applications and Work In the Temperature

Product Name	Welding cable
Product standard	AS/NZS3191 Generally to AS/NZS 5000.1
Core	Single(Optional)
Working Life	< 25 years
Type of conductor	pure copper,tinned copper
Material of conductor	Copper/aluminum
Material of insulation	Pvc/rubber
Color of core insulation	Red/white/blue/black/green/yellow(optional)
Material of Jacket	Pvc/rubber/as your requirment
Voltage	250/440v,300v/500v,450/750v
Advantage	Flame resistant/low smoke/halogen free
Section	10mm2-400mm2
Property	Heat-resistant

Technical data & size Rubber Welding Cable.

Nominal Section-Area of Conductor(mm2)	Structure of Conductor	Nominal Thik-ness of Sheath (mm)	Overall Diameter		Max. Conductor Resistance at 20º C (Ω /km)	Approx. Weight (kg/km)
Nominal Section-Area of Conductor(mm2)	Core no. /Dia. (no. /mm)	Nominal Thik-ness of Sheath (mm)	Min.	Max.	Max. Conductor Resistance at 20º C (Ω /km)	YH	YHF
10	322/0.20	1.8	7.5	9.7	1.91	146	153.51
16	513/0.20	2.0	9.2	11.5	1.16	218.9	230.44
25	798/0.20	2.0	10.5	13.0	0.758	316.6	331.15
35	1121/0.20	2.0	11.5	14.5	0.536	426	439.87
50	1596/0.20	2.2	13.5	17.0	0.379	592.47	610.55
70	2214/0.20	2.4	15.0	19.5	0.268	790	817.52
95	2997/0.20	2.6	17.0	22.0	0.198	1066.17	1102.97
120	1702/0.30	2.8	19.0	24.0	0.161	1348.25	1392.55
150	2135/0.30	3.0	21.0	27.0	0.128	1648.5	1698.72
185	1443/0.40	3.2	22.0	29.0	0.106	1983.8	2020.74

Application:

Welding cables are used for connecting the electrodes to the welding equipment,charger machine.

These cables are suitable for welding equipment,charger machine in industry , in automated welding equipment,

in tooling constructions, automobile and ship building as well as for handheld electrodes in workshops and at

building sites.These flexible and robust currentcarrying cables are suitable for use at high mechanicalloads in

dry indoors.

Packaging & Shipping

Packaged with Standard Export Wooden or Steel Drums or as per Customer's Requirement
Shipped within 7-15 Days once Order Confirmed

Tag:

Product Details:
Place of Origin:	Hebei, China
Brand Name:	HOLD-ONE
Model Number:	YH YHF
Payment & Shipping Terms:
Minimum Order Quantity:	500 Meter/Meters
Price:	$0.10 - $35.00 / Meter
Packaging Details:	wooden drum or woven bags or according to customers requests.
Supply Ability:	1000000 Meter/Meters per Month
