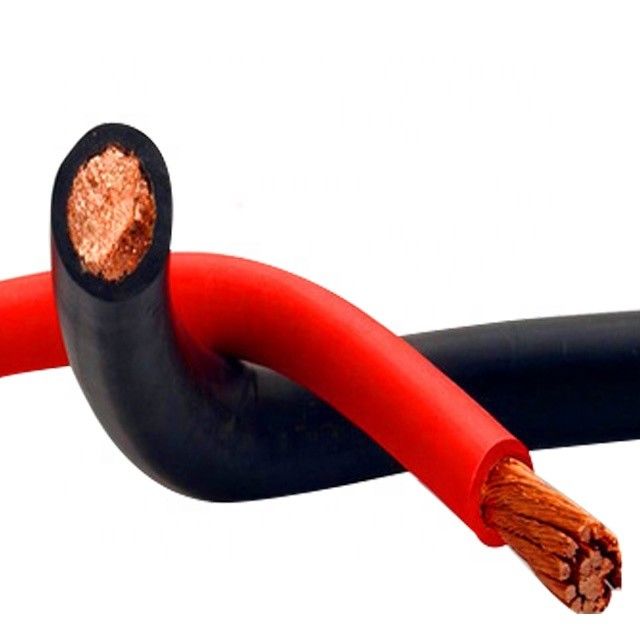

Red Cu Pvc 35mm2 50mm2 Flexible Welding Cable
  • Red Cu Pvc 35mm2 50mm2 Flexible Welding Cable
  • Red Cu Pvc 35mm2 50mm2 Flexible Welding Cable
  • Red Cu Pvc 35mm2 50mm2 Flexible Welding Cable
  • Red Cu Pvc 35mm2 50mm2 Flexible Welding Cable
  • Red Cu Pvc 35mm2 50mm2 Flexible Welding Cable
  • Red Cu Pvc 35mm2 50mm2 Flexible Welding Cable
Red Cu Pvc 35mm2 50mm2 Flexible Welding Cable

Red Cu Pvc 35mm2 50mm2 Flexible Welding Cable

Place of Origin Hebei, China
Brand Name HOLD-ONE
Model Number YH,YHF,H01N2-D,HO1N2-E
Product Details
Insulation Material:
Rubber,pvc,cpe
Type:
Low Voltage, Low Voltage
Application:
Industrial, Industrial
Conductor Material:
Copper,aluminum,alloy Aluminum
Jacket:
Rubber,pvc,epdm,neoprene
Product Name:
Battery Cable Cu Flexible Rubber Pvc Welding Cable 35mm2 50mm2
Conductor:
Copper,aluminum,alloy Aluminum
Standard:
IEC60245
Rated Voltage:
450/750V
Temperature Range:
-45℃-+105℃
Temperature Range:
-45℃-+105℃
Number Of Cores:
Single Core
Number Of Cores:
Single Core
Color:
Red,black,orange,or As Your Requirement
Color:
Red,black,orange,or As Your Requirement
Sample:
Available
Sample:
Available
Selling Units:
Single Item
Single Package Size :
2X2X10 Cm
Single Gross Weight:
1.000 Kg
Package Type:
In Rolls Or In Drum
Highlight:

50mm2 Flexible Welding Cable

,

35mm2 Flexible Welding Cable

,

50mm2 red welding cable

Payment & Shipping Terms
Minimum Order Quantity
100-1999 Meters
Price
$1.20
Product Description

Cu Rubber Pvc 35mm2 50mm2 Flexible Welding Cable



Product Description

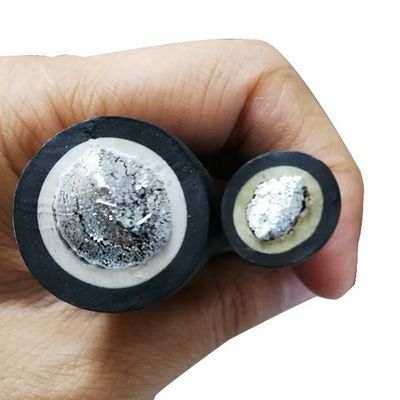

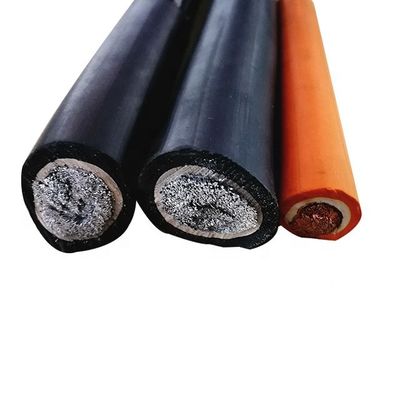

construction of welding cable

conductor:copper,aluminum,alloy aluminum,copper clad aluminum

Jacket:rubber,pvc,epdm,neoprene rubber

insulation:rubber,pvc,cpe

color:black,red,orange or as your requirement

Voltage:450-750V

Cross section:10mm2-185mm2

Temperature rating:-30 ℃  to  90℃ for rubber welding cable,-45 ℃  to  105℃ for neoprene rubber welding cable/pvc battery cable



Spec of H01N2-D H01N2-E welding cable



Nom.
Area
mm2

Max. Dia.
of wire
mm

Nom.
Cover
Thickness
mm

Average O.D. mm

Maximum DC
Resistance at 20℃
Ω/km

Min.

Max.

Tinned copper

Un tinned copper

10

0.21

2.0

7.7

9.7

1.95

1.91

16

2.0

8.8

11.0

1.24

1.21

25

2.0

10.1

12.7

0.795

0.780

35

2.0

11.4

14.2

0.565

0.554

50

2.2

13.2

16.5

0.393

0.386

70

2.4

15.3

19.2

0.277

0.272

95

2.6

17.1

21.4

0.210

0.206

120

0.51

2.8

19.2

24.0

0.164

0.161

150

3.0

21.1

26.4

0.132

0.129

185

3.2

23.1

28.9

0.108

0.106


For USA standard,AWG welding cable also can be done.

OEM ODM also can be done.



Application



Welding cable can be used as connections for electrode holder and grounding clamp to arc welder, bus, inverter or transformer-style weld machines. Also suitable for certain 600V applications such as battery leads and jumper cables



Packaging & Shipping

in rolls or in drums

Delivery time:5-7 days for 20000 meters below
