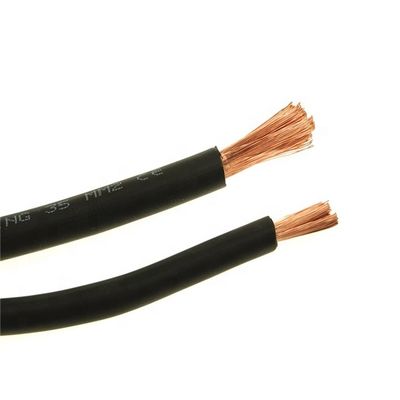

Silicone Rubber ASTM 400mm2 Flexible Welding Cable
Product Description
Application
The 450/750 V copper conductor EPR insulated rubber cable used for electrical appliances, electrical tools, and various mobile electrical equipments.
Construction
Conductor : Flexible Bare annealed copper wire or Tinned Copper wire
Insulation: Nitrile-Butadiene-PVC or Rubber Material or EPR
Sheath: Nitrile-Butadiene-PVC or Rubber Material or CSP
Choice of Black, Orange, Red or Yellow Blue jacket, single & double insulated.
SQ MM sizes (European style) :10 sq mm to 240 sq mm
AWG sizes (North American style) :6 Awg to 500 MCM
Wide temperature range: -55°C to 105°C
Characteristic
1. Rated power-frequency voltage U0/U: 450/750V, 300/500V and 300/300V.
2. Maximum permitted operating temperature of conductor is 60°C.
3. Permitted lowest working temperature is -35°C.
4. Rubber cable can be used at places contaminated by mineral oil and fuel oil.
5. D>25mm The minimum bending radius is over 6 times of cable diameter.
D≤25mmThe minimum bending radius is over 4 times of cable diameter.(D-Diameter of the cable)2.Characteristics
Specification
|
Type |
Rated |
Cross-section |
No. of |
Applications |
|
YQ |
300/300 |
0.3-0.75 |
2-5 |
Used for light portable electric equipment and tools |
|
YZ YZW |
300/500 |
1.5-6 |
2-5 |
Used for various portable electric equipment and tools |
|
YC |
450/750 |
1.5-120 |
2-5 |
Used for various portable electric equipment which |
|
YH |
- |
10-185 |
1 |
For arc welding |
Main Technical Data
|
Nominal section area(mm2) |
No./diameter of stranding(mm) |
Nominal sheath thickness (mm) |
Overall diameter(mm) |
Max. conductor resistance at 20℃(Ω/km) |
||
|
Min. |
Max. |
Without tinned |
With tinned |
|||
|
10 |
322/0.20 |
1.8 |
7.5 |
9.7 |
1.91 |
1.95 |
|
16 |
513/0.20 |
2.0 |
9.2 |
11.5 |
1.16 |
1.19 |
|
25 |
798/0.20 |
2.0 |
10.5 |
13.0 |
0.758 |
0.780 |
|
35 |
1121/0.20 |
2.0 |
11.5 |
14.5 |
0.536 |
0.552 |
|
50 |
1596/0.20 |
2.2 |
13.5 |
17.0 |
0.379 |
0.390 |
|
70 |
2214/0.20 |
2.4 |
15.0 |
19.5 |
0.268 |
0.276 |
|
95 |
2297/0.20 |
2.6 |
17.0 |
22.0 |
0.198 |
0.204 |
|
120 |
1702/0.30 |
2.8 |
19.0 |
24.0 |
0.161 |
0.164 |
|
150 |
2135/0.30 |
3.0 |
21.0 |
27.0 |
0.129 |
0.132 |
|
185 |
1443/0.40 |
3.2 |
22.0 |
29.0 |
0.106 |
0.108 |
|
240 |
1908/0.40 |
3.8 |
25.0 |
35.0 |
0.0801 |
0.0817 |
Model name of rubber cable
|
HAR Code |
IEC |
Description |
Voltage Design |
Cores |
|
H05RR-F |
60245IEC 53(YZ)/YZ |
Ordinary rubber sheathed cord |
300/500V |
2~5 |
|
H05RN-F |
60245 IEC 57(YZW)/YZW |
Ordinary polychloroprene or |
300/500V |
2~5 |
|
H07RN-F |
60245 IEC 66(YCW)/YC |
Heavy polychloroprene orother equivalent |
450/750V |
3+1/3+2/4+1 |
|
H01N2-D |
60245 IEC 81(YH) |
Rubber sheathed arc-welding electrode cable |
100/100V |
10-120 |
|
60245 |
polychloroprene or other equivalent synthetic |
100/100V |
10-120 |
Package
Packing in plastic reel, paper reel ,wooden drum,steel wooden drum or as customer's requirement.
