| MOQ: | 1000 Meter/Meters |
| Price: | $0.80 - $1.50/ Meter |
| Standard Packaging: | (1) Packing Lengths: 100m/roll, 200m/roll, 500m/roll. (2) Inner packing: Wooden reel, plastic reel. (3) Outer packing: Carton box, pallet. (4) Other packing available according to client's Request |
| Supply Capacity: | 1000000 Meter/Meters per Week |

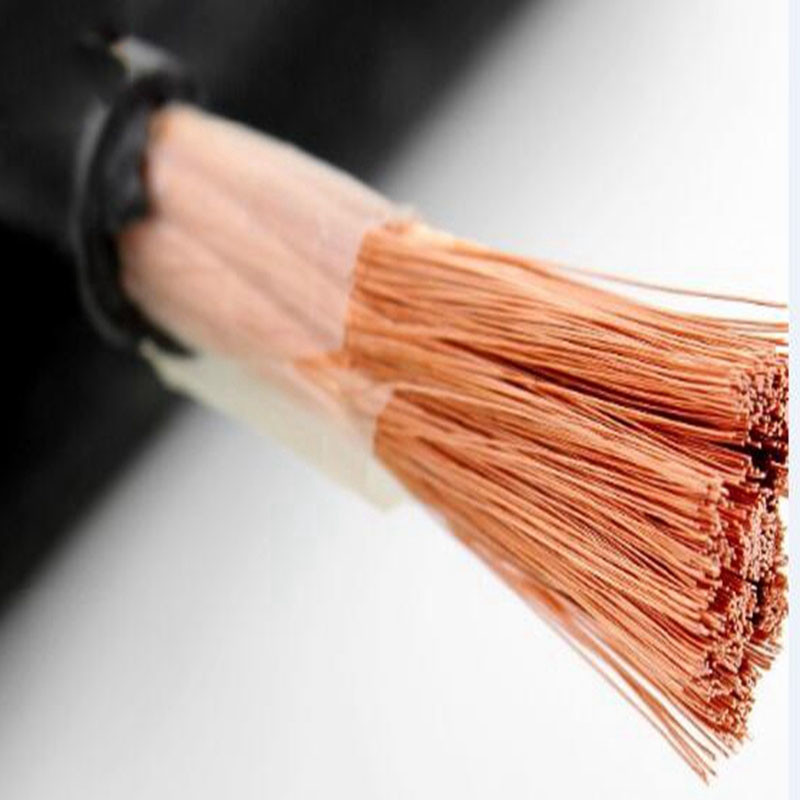

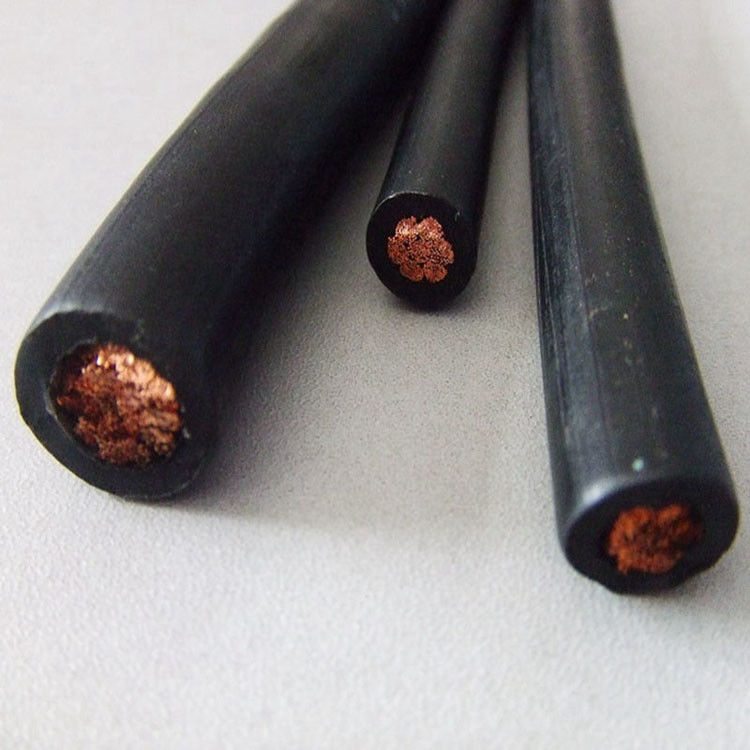

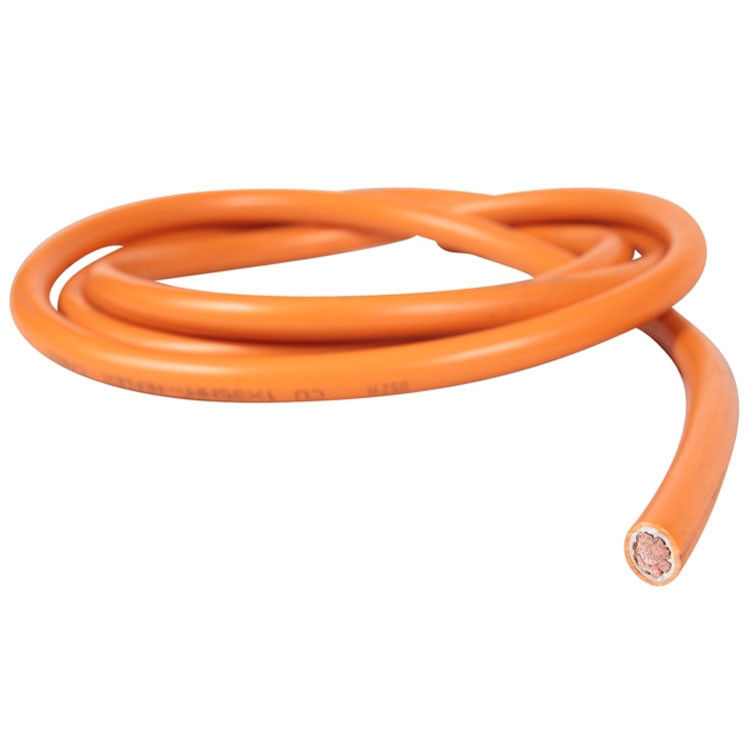

Flame Resistant Esab 95mm Polycab Welding Cable
Product Specificatin
|
Product Name |
Welding Cable |
||
|
Product standard |
AS/NZS 3191 Generally to AS/NZS 5000.1 |
||
|
Core |
Single (optional) |
||
|
Working life |
<25years |
||
|
Type of conductor |
class 5 copper,tinned copper |
||
|
Material of conductor |
Copper/Aluminum |
||
|
Material of insulation |
PVC/Rubber |
||
|
Color of core insulation |
Red/White/Blue/Black/Green/Yellow(Optional) |
||
|
Material of Jacket |
PVC/Rubber/As your requirement |
||
|
Voltage |
250/440V ; 300/500V ; 450/750V |
||
|
Advantage |
Flame resistant/Low smoke/Halogen free |
||
|
Section |
10mm2~400mm2 |
||
|
Property |
Heat-resistant |
||
Product Parameter
|
Section (mm2) |
Resistance (ohm/km) |
Thickness of Sheath (mm) |
Min.OD (mm) |
Max.OD (mm) |
|
10 |
1.9100 |
2.00 |
7.80 |
10.0 |
|
16 |
1.2100 |
2.00 |
9.00 |
11.5 |
|
25 |
0.7800 |
2.00 |
10.0 |
13.0 |
|
35 |
05540 |
2.00 |
11.5 |
14.5 |
|
50 |
0.3860 |
2.20 |
13.0 |
17.0 |
|
70 |
0.2720 |
2.40 |
15.0 |
19.0 |
|
95 |
0.2060 |
2.60 |
17.5 |
21.5 |
|
120 |
0.1610 |
2.80 |
19.5 |
24.0 |
|
150 |
0.1290 |
3.00 |
21.5 |
26.0 |
|
185 |
0.1060 |
3.20 |
23.0 |
29.0 |
|
240 |
0.0801 |
3.40 |
27.0 |
32.0 |
|
300 |
0.0641 |
3.60 |
30.0 |
35.0 |
|
400 |
0.0486 |
3.80 |
33.0 |
39.0 |
Applications
USE:
For connections for electrode holder and grounding clamp to arc welder, bus, inverter or transformer-style weld machines. Also suitable for certain 600V applications such as battery leads and jumper cables.
