Underground Power Armoured Electrical Cable HT 3 Phase Distribution Copper

Underground Power Armoured Electrical Cable HT 3 Phase Distribution Copper

  • High Light

    armored cable wiring

    ,

    armoured power cable

  • Conductor
    99.997% Pure Copper
  • Sample
    Free
  • Armoured Material
    Steel Wire Armored
  • Shield Material
    Copper Tape
  • Outer Sheath
    PVC
  • Standard
    IEC60502-2
  • Outer Sheath Color
    Black Or Red
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    KEMA/CE/TUV/ISO/CE
  • Minimum Order Quantity
    500M
  • Price
    USD 3.88-9.89/M
  • Packaging Details
    Wooden drum
  • Delivery Time
    7 Days
  • Payment Terms
    L/C, T/T

Underground Power Armoured Electrical Cable HT 3 Phase Distribution Copper

Armoured Electrical Cable HT 3 Phase Distribution Copper Cable Underground Power Cable



Construction

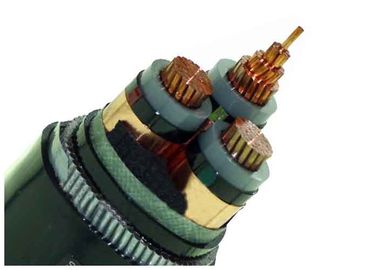

Cu/XLPE/STA/PVC Armoured Electrical Cable



- Round bare aluminum core stranded according to IEC 60228
- Inner semi-conductive layer
- Core insulation XLPE
- Color code according to HD 308 S2
- Outer semi-conductive layer
- Semi-conductive tape
- Copper tape screen
- Filler
- PVC inner sheath
- Galvanized steel tape armour (STA)



Application

Used for power transmission and distribution line with voltage rated at 35kV and below.
High and Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain.



MV(11kv 15kv 33kv) Power Cable
Model and Description Uo/U(Um)=3.6/6(7.2), 6/6(7.2), 6/10(12), 8.7/10(12), 8.7/15(17.5), 12/20(24), 18/30(36), 21/35(40.5), 26/35(40.5)kV No.of Core Conductor cross-section area(mm2)
xlpe insulation 1 core 3 core 10 16 25 35 70 95 120 150 185 240 300 400 500 630 sq mm
Cu core
YJV, N2XSY;PVC sheathed power cable
YJV22;steel tape armoured,PVC sheathed power cable
YJV32,YJV42;steel wire armoured ,PVC sheathed power cable
Al Core
YJLV, NA2XSY; PVC sheathed power cable
YJLV22;steel tape armoured,PVC sheathed power cable
YJLV32,YJLV42;steel wire armoured ,PVC sheathed power cable







Standard

International: IEC 60502, IEC 60228
China: GB/T 12706
Other standards such as BS, DIN and ICEA upon request


Technical data:

Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 15 x cable O.D for single core
12 x cable O.D for multi core

Test voltage 6 / 10 kV [kV] 21 / 5 min.
  12 / 20 kV [kV] 42 / 5 min.
  18 / 30 kV [kV] 63 / 5 min.
Temperature range in motion   -5°C till +70°C
  fixed   -20°C till +70°C
Operating temperature short circuit °C 250
Short circuit time max. [sec] 5
Bending radius min. x diameter 15
Flammability standard   EN 60332-1-2
