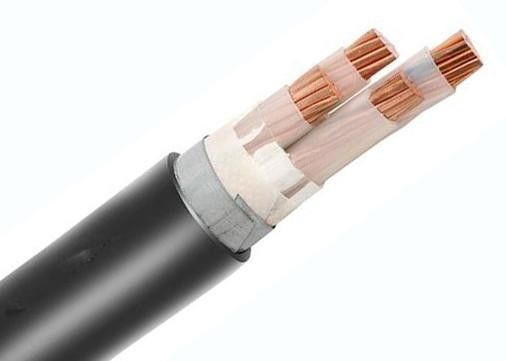

Armoured cable is covered by a metal sheath which protects the cable from water and extreme temperatures, allowing it to be used in underground or external projects as well as indoor applications. SWA cable, which means steel wire armoured is heavy and difficult to bend which helps to reduce the risk of pinching and damage.
Conductor
Plain, annealed electrolytic copper or Aluminum conductors, solid, circular stranded, or sectorial stranded, conforming to the applicable requirements of IEC 60228.
Insulation
PVC based thermoplastic or XLPE thermosetting material, conforming to the
applicable requirements of IEC 60502-1.
Assembly
Insulated conductors are laid up, filled where necessary with non-hygroscopic material and covered with an extruded thickness of thermoplastic mate
Features
► High dielectric strength
► Excellent resistance to deformations under high temperature and pressure
► High resistance to ageing, abrasion, moisture, chemicals, acids and oils
► Standard: IEC60502-1, BS5467, BS6346 ,VDE 0276-603, IEC60502-2 ,BS 6622
Voltage rating for Medium Voltage XLPE Power Cable | No. x Nominal Cross Section of Conductor No. x mm2 | |
1 core | 3 core | |
3.6/6(7.2)kV 3.6/6.6(7.2) kV, 6/10(12)kV 8.7/10(12)kV, 8.7/15(17.5)kV 12/20(24)kV 18/30(36)kV 21/35(40.5)kV 26/35(40.5)kV | 1x 25 mm2 | 3x 25 mm2 |
1x35 mm2 | 3x 35 mm2 | |
1x50 mm2 | 3x 50 mm2 | |
1x70 mm2 | 3x 70 mm2 | |
1x95 mm2 | 3x 95 mm2 | |
1x120 mm2 | 3x 120 mm2 | |
1x150 mm2 | 3x 150 mm2 | |
1x185 mm2 | 3x 185 mm2 | |
1x240 mm2 | 3x 240 mm2 | |
1x300 mm2 | 3x 300 mm2 | |
1x400 mm2 | 3x 400 mm2 | |
1x500 mm2 | 3x 500 mm2 | |
1x630 mm2 |
