Galvanized Steel Armored Cable Wiring , Armoured Power Cable Aging Resistant

Galvanized Steel Armored Cable Wiring , Armoured Power Cable Aging Resistant

  • High Light

    armored electrical wire

    ,

    armoured power cable

  • Size
    1.0mm2 To 800mm2
  • Jacket
    PVC
  • Sample
    Available
  • Insulation
    Cross-Linked XLPE
  • Conductor Temp
    90 Degree
  • Conductor
    Aluminum
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    KEMA/CE/ISO/TUV/CNAS
  • Minimum Order Quantity
    100meter
  • Price
    USD 2.57-9.99/M
  • Packaging Details
    wooden drum
  • Delivery Time
    10-20 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    586900m/day

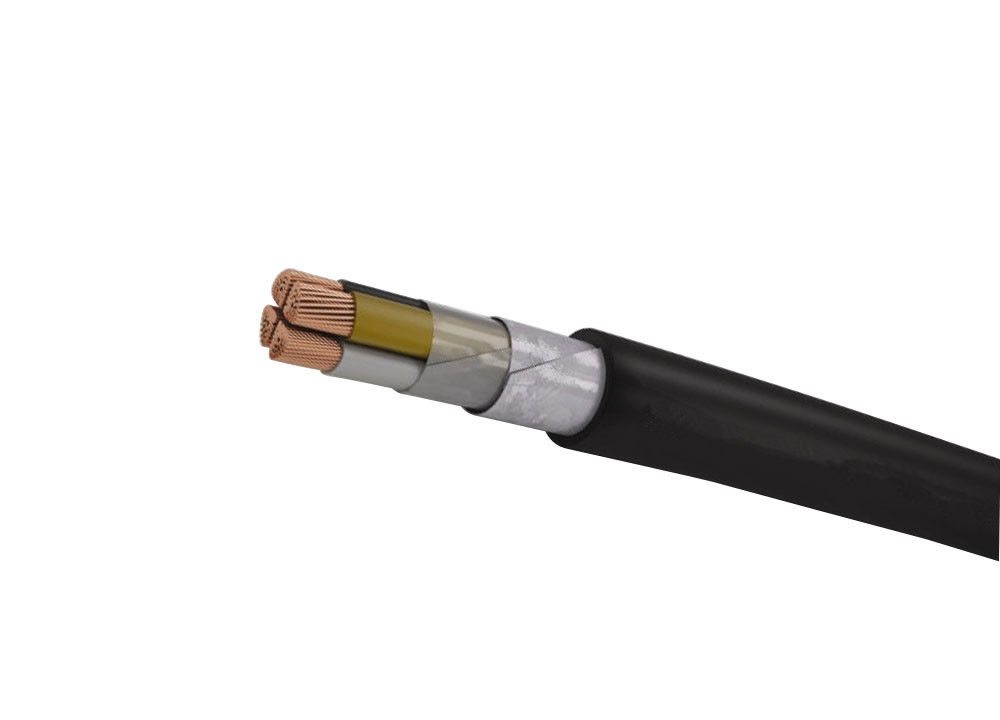

Galvanized Steel Armored Cable Wiring , Armoured Power Cable Aging Resistant

Galvanized Steel Armoured Electrical Cable Aging Resistant Armored Power Cable



Applications



Used for Power transmission and distribution line with voltage rated at 35kv and below. Compared with PVC Insulated Power cable, XLPE power cable boasts not only characteristics of excellent electricity, mechanism , heat and aging- resistant, environment stress-resistant and chemical corrosion-resistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long term working.

For Layling indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces.Standards



PVC insulated power armoured electrical cable is suitable for electricity transmission and distribution line whose rated voltage is 0.6/1kV. The flame retardant type is used in place where high density and good fire-proof property are required, such as subway, power station, high-rise building, entertainment place, large industriall and mining enterprises etc


Property

1. The highest allowed operating temperature of conductor for long-term working is 90 degrees.
2. In short circuit (Max long term is no more than 5 seconds),the highest temperature for conductor is no more than 250 degrees.
3. the environmental temperature of operating in air should be no more than 40 degrees, and 25 degrees underground.
4. Excellent electrical performance, resistance to chemical corrosion.


Conductor



Plain, annealed electrolytic copper or Aluminum conductors, solid, circular stranded, or sectorial stranded, conforming to the applicable requirements of IEC 60228.



Insulation



PVC based thermoplastic or XLPE thermosetting material, conforming to the

applicable requirements of IEC 60502-1.



Assembly



Insulated conductors are laid up, filled where necessary with non-hygroscopic material and covered with an extruded thickness of thermoplastic mate



Features



High dielectric strength

Excellent resistance to deformations under high temperature and pressure

High resistance to ageing, abrasion, moisture, chemicals, acids and oils

Standard: IEC60502-1, BS5467, BS6346 ,VDE 0276-603, IEC60502-2 ,BS 6622


Voltage rating for Medium Voltage XLPE Power Cable No. x Nominal Cross Section
of Conductor No. x mm2
1 core 3 core


3.6/6(7.2)kV
3.6/6.6(7.2) kV, 6/10(12)kV
8.7/10(12)kV, 8.7/15(17.5)kV
12/20(24)kV
18/30(36)kV
21/35(40.5)kV
26/35(40.5)kV
1x 25 mm2 3x 25 mm2
1x35 mm2 3x 35 mm2
1x50 mm2 3x 50 mm2
1x70 mm2 3x 70 mm2
1x95 mm2 3x 95 mm2
1x120 mm2 3x 120 mm2
1x150 mm2 3x 150 mm2
1x185 mm2 3x 185 mm2
1x240 mm2 3x 240 mm2
1x300 mm2 3x 300 mm2
1x400 mm2 3x 400 mm2
1x500 mm2 3x 500 mm2
1x630 mm2





We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
