|Place of Origin:||China|
Payment & Shipping Terms:
|Minimum Order Quantity:||500 Meters|
|Price:||US$ 0.35-120 / Meter|
|Packaging Details:||Wooden Drums or Steel|
|Delivery Time:||a week or two|
|Payment Terms:||T/T, L/C|
|Supply Ability:||15,000 KM / Month|
|Product Model:||AL/XLPE/STA/PVC YJLV22||Conductor:||Aluminum|
|Insulation:||XLPE||Armour Material:||Steel Tape|
|Cores:||Three Phase||Voltage:||High Voltage|
|Sheath Material:||PVC, PE, LSOH||Warranty:||Two Years|
|Certificate:||KEMA, Type Test||Standard:||IEC, BS, IS, VDE|

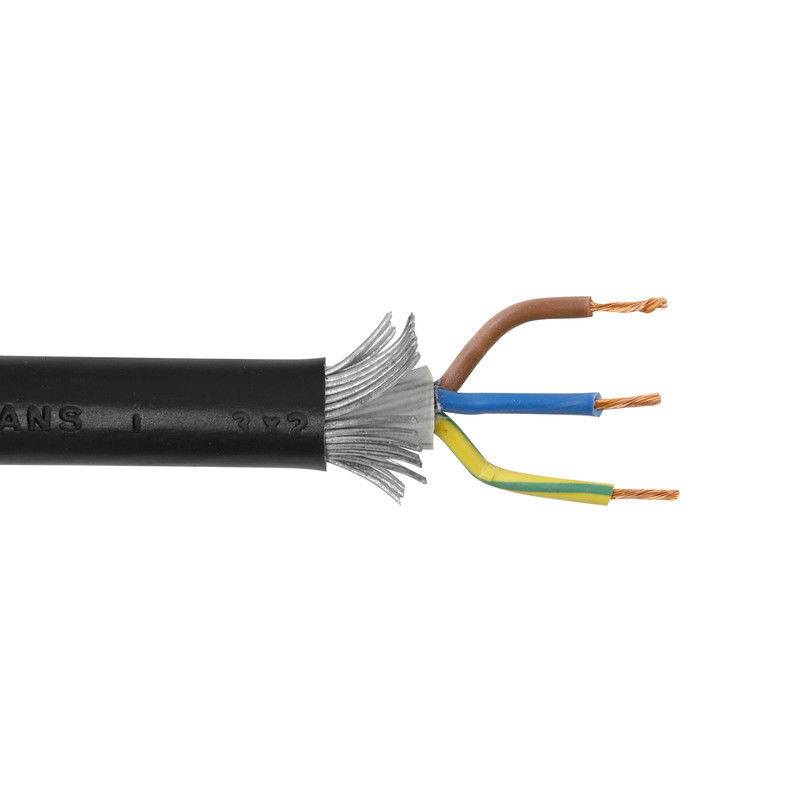

armored cable wiring,
armoured power cable
Used for power transmission and distribution line with voltage rated at 35kV and below.
High and Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain.
PVC insulated power armoured electrical cable is suitable for electricity transmission and distribution line whose rated voltage is 0.6/1kV. The flame retardant type is used in place where high density and good fire-proof property are required, such as subway, power station, high-rise building, entertainment place, large industriall and mining enterprises etc
Plain, annealed electrolytic copper or Aluminum conductors, solid, circular stranded, or sectorial stranded, conforming to the applicable requirements of IEC 60228.
PVC based thermoplastic or XLPE thermosetting material, conforming to the
applicable requirements of IEC 60502-1.
Insulated conductors are laid up, filled where necessary with non-hygroscopic material and covered with an extruded thickness of thermoplastic mate
► High dielectric strength
► Excellent resistance to deformations under high temperature and pressure
► High resistance to ageing, abrasion, moisture, chemicals, acids and oils
► Standard: IEC60502-1, BS5467, BS6346 ,VDE 0276-603, IEC60502-2 ,BS 6622
|Voltage rating for Medium Voltage XLPE Power Cable||No. x Nominal Cross Section
of Conductor No. x mm2
|1 core||3 core|
3.6/6.6(7.2) kV, 6/10(12)kV
|1x 25 mm2||3x 25 mm2|
|1x35 mm2||3x 35 mm2|
|1x50 mm2||3x 50 mm2|
|1x70 mm2||3x 70 mm2|
|1x95 mm2||3x 95 mm2|
|1x120 mm2||3x 120 mm2|
|1x150 mm2||3x 150 mm2|
|1x185 mm2||3x 185 mm2|
|1x240 mm2||3x 240 mm2|
|1x300 mm2||3x 300 mm2|
|1x400 mm2||3x 400 mm2|
|1x500 mm2||3x 500 mm2|
We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.
We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
