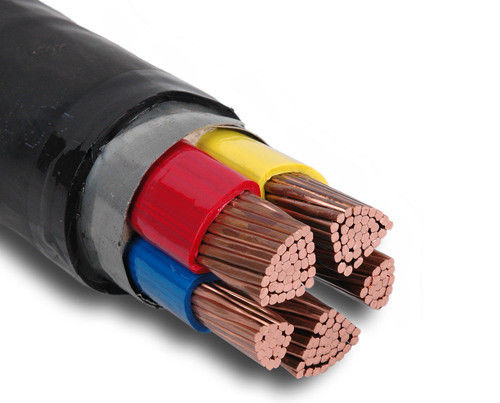

Underground Armoured Electrical Cable 1 - 5 Cores Low / Medium Voltage

Underground Armoured Electrical Cable 1 - 5 Cores Low / Medium Voltage

  • High Light

    armored electrical wire

    ,

    armoured power cable

  • Product Name
    Underground Cable
  • Voltage
    Low And Medium Voltage
  • Conductor
    Copper
  • Insulation
    XLPE
  • Armor
    Steel Wire
  • Sheath Material
    PVC
  • Standards
    IEC / BS / IS / VDE
  • Warranty
    2 Years
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    ISO,CE,IEC,TUV,KEMA
  • Minimum Order Quantity
    300 Meters
  • Price
    US$0.5 to 120 per Meter
  • Packaging Details
    Wooden Drum or Steel
  • Delivery Time
    15 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    10,000 KM / Month

Underground Armoured Electrical Cable 1 - 5 Cores Low / Medium Voltage

Low and Medium Voltage Steel Wire Armoured Power Cable XLPE Insulated Copper Conductor 1 to 5 cores Underground Cable



Applications

These power armoured cables are designed for open air installation, for direct burrial underground, in water, in cable ducts, power stations, where mechanical damages to the cable may occur.


PVC insulated power armoured electrical cable is suitable for electricity transmission and distribution line whose rated voltage is 0.6/1kV. The flame retardant type is used in place where high density and good fire-proof property are required, such as subway, power station, high-rise building, entertainment place, large industriall and mining enterprises etc


Property

1. The highest allowed operating temperature of conductor for long-term working is 90 degrees.
2. In short circuit (Max long term is no more than 5 seconds),the highest temperature for conductor is no more than 250 degrees.
3. the environmental temperature of operating in air should be no more than 40 degrees, and 25 degrees underground.
4. Excellent electrical performance, resistance to chemical corrosion.


Conductor



Plain, annealed electrolytic copper or Aluminum conductors, solid, circular stranded, or sectorial stranded, conforming to the applicable requirements of IEC 60228.



Insulation



PVC based thermoplastic or XLPE thermosetting material, conforming to the

applicable requirements of IEC 60502-1.



Assembly



Insulated conductors are laid up, filled where necessary with non-hygroscopic material and covered with an extruded thickness of thermoplastic mate



Features



High dielectric strength

Excellent resistance to deformations under high temperature and pressure

High resistance to ageing, abrasion, moisture, chemicals, acids and oils

Standard: IEC60502-1, BS5467, BS6346 ,VDE 0276-603, IEC60502-2 ,BS 6622


Voltage rating for Medium Voltage XLPE Power Cable No. x Nominal Cross Section
of Conductor No. x mm2
1 core 3 core


3.6/6(7.2)kV
3.6/6.6(7.2) kV, 6/10(12)kV
8.7/10(12)kV, 8.7/15(17.5)kV
12/20(24)kV
18/30(36)kV
21/35(40.5)kV
26/35(40.5)kV
1x 25 mm2 3x 25 mm2
1x35 mm2 3x 35 mm2
1x50 mm2 3x 50 mm2
1x70 mm2 3x 70 mm2
1x95 mm2 3x 95 mm2
1x120 mm2 3x 120 mm2
1x150 mm2 3x 150 mm2
1x185 mm2 3x 185 mm2
1x240 mm2 3x 240 mm2
1x300 mm2 3x 300 mm2
1x400 mm2 3x 400 mm2
1x500 mm2 3x 500 mm2
1x630 mm2





We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!


About us

Founded in 2000, HOLD-ONE. is a modern large-scale enterprise specializing in R&D and manufacturing of wire and cable. The company has an insulated wire workshop, a low voltage cable workshop, a high voltage cable workshop and cable accessories, and a copper processing workshop. It consists of administrative affairs department, marketing department, technology research and development department, quality management department, planning and finance department, material supply department, safety production department, etc., and has sales and service organizations in 106 large and medium cities across the country. The company's leading products are: rubber sheathed flexible cable, polyethylene sheathed flexible cable, PVC insulated control cable, PVC insulated power cable, overhead insulated cable, aluminum stranded wire and steel core aluminum stranded wire, PVC insulated Sheath (soft) wire and cable, etc., and focus on the development and production of low-smoke halogen-free, low-smoke low-halogen, pre-branch cable and various flame retardant, fire-resistant, shielding and other special cables up to more than 10,000 specifications. The annual production capacity can reach 1 billion yuan. Companies can produce according to national or international standards.




Ordering Advice

Rated Voltage
Application Standard:IEC/BS/UL/GB
Number of Cores
Conductor Size $ Construction
Type of Insulation
Armored or unarmored. If armour, the armour type & material
The Requirement of Sheath
Length of Cable & Packing Requirement
