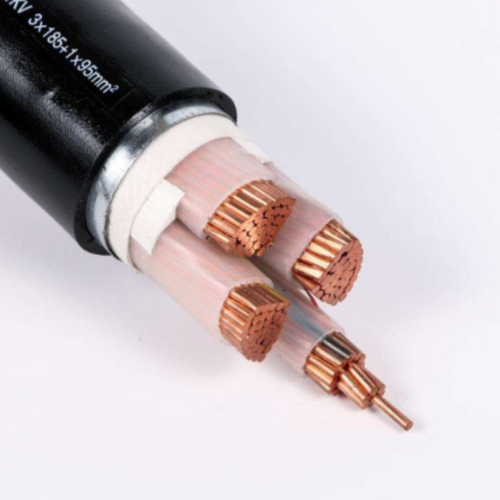

PVC Jacket Armoured Electrical Cable Steel Wire 90 Degree N2XY XLPE Insulation

PVC Jacket Armoured Electrical Cable Steel Wire 90 Degree N2XY XLPE Insulation

  • High Light

    armored electrical wire

    ,

    armored cable wiring

  • Conductor Temp
    90 Degree
  • Armoured Material
    Steel Wire
  • Size
    1.0mm2 To 800mm2
  • Jacket
    PVC
  • Sample
    Available
  • Insulation
    Cross-Linked XLPE
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    KEMA/CE/ISO/TUV/CNAS
  • Minimum Order Quantity
    100meter
  • Price
    USD 1.36-9.99/M
  • Packaging Details
    wooden drum
  • Delivery Time
    10-20 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    586900m/day

PVC Jacket Armoured Electrical Cable Steel Wire 90 Degree N2XY XLPE Insulation



Steel Wire PVC Jacket Armoured Power Cable 90 Degree N2XY XLPE Insulation



Steel Wire Armoured Cable is designed to have mechanical protection, which is why the cable is often used for external use. The armour is used to reduce any risk of the cable getting pinched or damaged; the steel is used to protect the armoured cable. SWA cables are heavy, which makes them extremely difficult to bend; therefore they are most suited to underground cabling or fixed to outdoor walls using cable cleats.



Property




1. The highest allowed operating temperature of conductor for long-term working is 90 degrees.
2. In short circuit (Max long term is no more than 5 seconds),the highest temperature for conductor is no more than 250 degrees.
3. the environmental temperature of operating in air should be no more than 40 degrees, and 25 degrees underground.
4. Excellent electrical performance, resistance to chemical corrosion.


Conductor



Plain, annealed electrolytic copper or Aluminum conductors, solid, circular stranded, or sectorial stranded, conforming to the applicable requirements of IEC 60228.



Insulation



PVC based thermoplastic or XLPE thermosetting material, conforming to the

applicable requirements of IEC 60502-1.



Assembly



Insulated conductors are laid up, filled where necessary with non-hygroscopic material and covered with an extruded thickness of thermoplastic mate



Features



► High dielectric strength

► Excellent resistance to deformations under high temperature and pressure

► High resistance to ageing, abrasion, moisture, chemicals, acids and oils

► Standard: IEC60502-1, BS5467, BS6346 ,VDE 0276-603, IEC60502-2 ,BS 6622


Voltage rating for Medium Voltage XLPE Power Cable No. x Nominal Cross Section
of Conductor No. x mm2
1 core 3 core


3.6/6(7.2)kV
3.6/6.6(7.2) kV, 6/10(12)kV
8.7/10(12)kV, 8.7/15(17.5)kV
12/20(24)kV
18/30(36)kV
21/35(40.5)kV
26/35(40.5)kV
1x 25 mm2 3x 25 mm2
1x35 mm2 3x 35 mm2
1x50 mm2 3x 50 mm2
1x70 mm2 3x 70 mm2
1x95 mm2 3x 95 mm2
1x120 mm2 3x 120 mm2
1x150 mm2 3x 150 mm2
1x185 mm2 3x 185 mm2
1x240 mm2 3x 240 mm2
1x300 mm2 3x 300 mm2
1x400 mm2 3x 400 mm2
1x500 mm2 3x 500 mm2
1x630 mm2





We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
