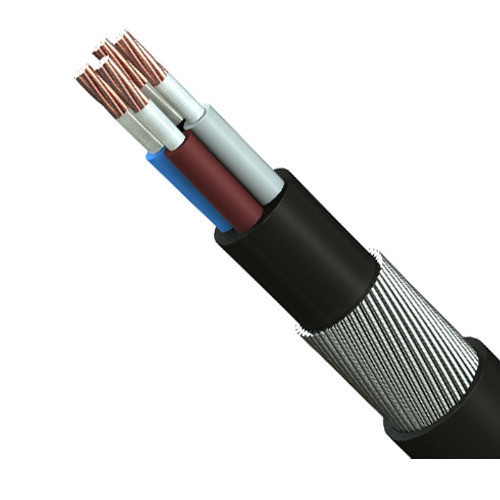

OEM Armoured Electrical Cable High Tension Three Cores Steel Tape Copper

OEM Armoured Electrical Cable High Tension Three Cores Steel Tape Copper

  • High Light

    armored cable wiring

    ,

    armoured power cable

  • Product Type
    Armoured XLPE Cable
  • Voltage
    High Tension
  • Conductor
    Copper
  • Insulation
    XLPE
  • Armor
    Steel Tape
  • Sreen
    Copper Tape
  • Cores
    Three Cores
  • Sheath Material
    PVC
  • Standards
    IEC / BS / IS / VDE
  • Warranty
    2 Years
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    ISO,CE,IEC,TUV,KEMA
  • Minimum Order Quantity
    200 Meters
  • Price
    US$0.52~125 per Meter
  • Packaging Details
    Wooden Drums
  • Delivery Time
    7-10 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    10,000 KM per Month

OEM Armoured Electrical Cable High Tension Three Cores Steel Tape Copper



OEM Armoured Electrical Cable High Tension Three Cores Steel Tape Copper



Ordering Advice

Rated Voltage

Application Standard:IEC/BS/UL/GB

Number of Cores

Conductor Size $ Construction

Type of Insulation

Armored or unarmored. If armour, the armour type & material

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement



PVC insulated power armoured electrical cable is suitable for electricity transmission and distribution line whose rated voltage is 0.6/1kV. The flame retardant type is used in place where high density and good fire-proof property are required, such as subway, power station, high-rise building, entertainment place, large industriall and mining enterprises etc



Conductor



Plain, annealed electrolytic copper or Aluminum conductors, solid, circular stranded, or sectorial stranded, conforming to the applicable requirements of IEC 60228.



Insulation



PVC based thermoplastic or XLPE thermosetting material, conforming to the

applicable requirements of IEC 60502-1.



Property

1. The highest allowed operating temperature of conductor for long-term working is 90 degrees.
2. In short circuit (Max long term is no more than 5 seconds),the highest temperature for conductor is no more than 250 degrees.
3. the environmental temperature of operating in air should be no more than 40 degrees, and 25 degrees underground.
4. Excellent electrical performance, resistance to chemical corrosion.



Assembly



Insulated conductors are laid up, filled where necessary with non-hygroscopic material and covered with an extruded thickness of thermoplastic mate



Features



High dielectric strength

Excellent resistance to deformations under high temperature and pressure

High resistance to ageing, abrasion, moisture, chemicals, acids and oils

Standard: IEC60502-1, BS5467, BS6346 ,VDE 0276-603, IEC60502-2 ,BS 6622


Voltage rating for Medium Voltage XLPE Power Cable No. x Nominal Cross Section
of Conductor No. x mm2
1 core 3 core


3.6/6(7.2)kV
3.6/6.6(7.2) kV, 6/10(12)kV
8.7/10(12)kV, 8.7/15(17.5)kV
12/20(24)kV
18/30(36)kV
21/35(40.5)kV
26/35(40.5)kV
1x 25 mm2 3x 25 mm2
1x35 mm2 3x 35 mm2
1x50 mm2 3x 50 mm2
1x70 mm2 3x 70 mm2
1x95 mm2 3x 95 mm2
1x120 mm2 3x 120 mm2
1x150 mm2 3x 150 mm2
1x185 mm2 3x 185 mm2
1x240 mm2 3x 240 mm2
1x300 mm2 3x 300 mm2
1x400 mm2 3x 400 mm2
1x500 mm2 3x 500 mm2
1x630 mm2





We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
