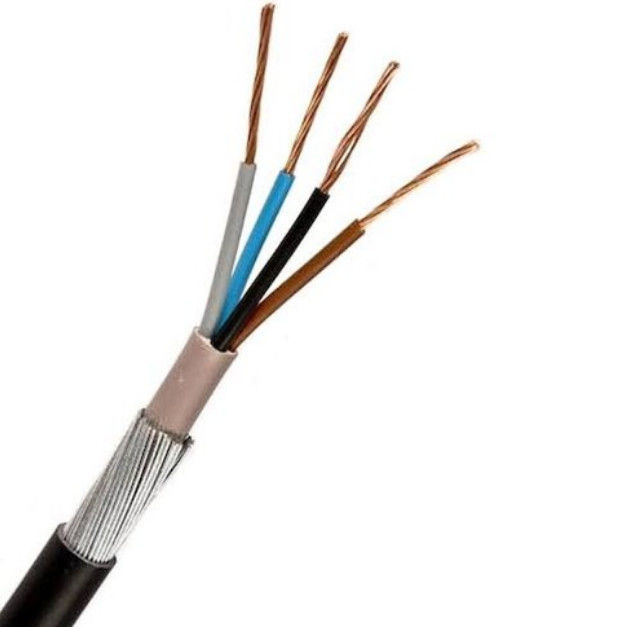

China Best Supplier YJV22-0.6/1KV 3x95SQMM Armoured Electrical Cable Steel Tape Armoured
Installation Conditions
This cable can be installed in duct, tray or direct burial. It is recommended that the installation instructions indicated by the Local Electric Code, or any equivalent, be followed,so that the safeguarding of persons and the integrity of the product will not be affected by eciencies in the installation.
1. The products are mainly complying with iec 60502 standard, also can be produced according to OEM requirements and other standards, such as bs standard, din standard, ASTM standard, etc.
Voltage grade is up to 35kv, cross-section area can be up to 630 sqmm (copper or aluminiun conductor). Conductor long-time operating temperature is 90 degrees. In short circuit, conductor highest temperature should be not more than 250 degrees.
Apply to shafts,water and soil,able to bear the larger positive pressure.
Conductor
Plain, annealed electrolytic copper or Aluminum conductors, solid, circular stranded, or sectorial stranded, conforming to the applicable requirements of IEC 60228.
Insulation
PVC based thermoplastic or XLPE thermosetting material, conforming to the
applicable requirements of IEC 60502-1.
Assembly
Insulated conductors are laid up, filled where necessary with non-hygroscopic material and covered with an extruded thickness of thermoplastic mate
Features
► High dielectric strength
► Excellent resistance to deformations under high temperature and pressure
► High resistance to ageing, abrasion, moisture, chemicals, acids and oils
► Standard: IEC60502-1, BS5467, BS6346 ,VDE 0276-603, IEC60502-2 ,BS 6622
Voltage rating for Medium Voltage XLPE Power Cable | No. x Nominal Cross Section of Conductor No. x mm2 |
|
1 core | 3 core | |
3.6/6(7.2)kV 3.6/6.6(7.2) kV, 6/10(12)kV 8.7/10(12)kV, 8.7/15(17.5)kV 12/20(24)kV 18/30(36)kV 21/35(40.5)kV 26/35(40.5)kV |
1x 25 mm2 | 3x 25 mm2 |
1x35 mm2 | 3x 35 mm2 | |
1x50 mm2 | 3x 50 mm2 | |
1x70 mm2 | 3x 70 mm2 | |
1x95 mm2 | 3x 95 mm2 | |
1x120 mm2 | 3x 120 mm2 | |
1x150 mm2 | 3x 150 mm2 | |
1x185 mm2 | 3x 185 mm2 | |
1x240 mm2 | 3x 240 mm2 | |
1x300 mm2 | 3x 300 mm2 | |
1x400 mm2 | 3x 400 mm2 | |
1x500 mm2 | 3x 500 mm2 | |
1x630 mm2 |
We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.
We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
