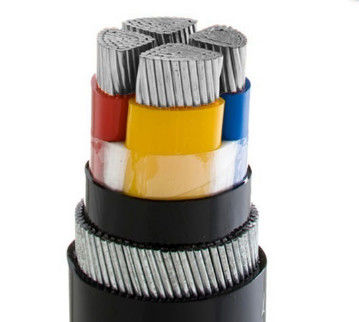

TR-XLPE Insulated URD Armoured Power Cable , Mv Power Cable Three Medium Voltage

Product Details:
Place of Origin: China
Brand Name: HOLD-ONE
Certification: KEMA/CE/ISO/TUV
Payment & Shipping Terms:
Minimum Order Quantity: 500M
Price: USD 7.89-161.8/M
Packaging Details: Wooden Drum
Delivery Time: 7 Days
Payment Terms: L/C, T/T
Supply Ability: 58726KM/Week
  • Detail Information
  • Product Description

Detail Information

Construction: CU/XLPE/CWS/PVC/STA/PVC Outer Sheath Material: PVC Or Flame-retardant PVC
Test Voltage:: 24KV Warranty: 2 Years
Conductor: Stranded Copper Core: Three
High Light:

armored cable wiring

,

armoured power cable

Product Description

MV TR-XLPE URD Cable,Medium Voltage TR-XLPE Insulated URD Armoured Electrical Cable



Property:
1). 15KV,25KV, 35kv TR-XLPE Insulation
2). 100% Insulation
3). Concentric Neutral
4). Maximum Conductor Temperature: Normal continuous 90°C, Overload 130°C, Short Circuit 250°C



Application:
Medium-Voltage TR-XLPE Power Cable is suitable for Primary underground Distribution System; buried directly or installed in underground ducts or conduits or exposed to sunlight for above ground application. To be used a 15,000 volts or less. Rated for continuous operation at 90℃ conductor temperature.

Construction:

Conductor Bare aluminum or copper stranded class B conductor (compressed stranding)
Strand Shield Extruded semi-conducting strand shield
Insulation Cross-linked polyethylene (XLPE) or tree-retardant cross-linked polyethylene (XLPE-TR) insulation
Insulation Shield Extruded semi-conducting insulation shield
Neutral Wires Coated or uncoated copper concentric neutral wires
Embedded Jacket Non-conducting linear low density PE (LLDPE) encapsulating jacket with extruded red stripes. Optional semi-conducting PE jacket

Six main type of TR-XLPE power cables for Medium-Voltage Primary Distribution:

15kV TR-XLPE URD Cable 100% Insulation Level
15kV TR-XLPE URD Cable 133% Insulation Level
25kV TR-XLPE URD Cable 100% Insulation Level
25kV TR-XLPE URD Cable 133% Insulation Level
35kV TR-XLPE URD Cable 100% Insulation Level
35kV TR-XLPE URD Cable 133% Insulation Level
