8.7/15kV Armoured Electrical Cable 3x300SQMM  YJLV32 AL/XLPE/SWA/PVC Power

8.7/15kV Armoured Electrical Cable 3x300SQMM YJLV32 AL/XLPE/SWA/PVC Power

  • High Light

    armored electrical wire

    ,

    armored cable wiring

  • Product Model
    AL/XLPE/SWA/PVC Cable
  • Conductor
    Aluminum
  • Insulation
    XLPE
  • Armour Material
    Steel Wire
  • Cores
    3
  • Sheath Material
    PVC, PE, LSOH
  • Certificate
    KEMA, Type Test
  • Standard
    IEC, BS, IS, VDE
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    ISO,IEC,KEMA
  • Minimum Order Quantity
    500 Meters
  • Price
    US$ 0.35-120 / Meter
  • Packaging Details
    Wooden Drums or Steel
  • Delivery Time
    a week or two
  • Payment Terms
    T/T, L/C
  • Supply Ability
    15,000 KM / Month

8.7/15kV Armoured Electrical Cable 3x300SQMM YJLV32 AL/XLPE/SWA/PVC Power

8.7/15kV 3x300SQMM Steel Wire Armoured Aluminum Cable YJLV32 AL/XLPE/SWA/PVC Power Armour Cables

This product is applicable to the power transmission and distribution line with AC rated voltage(U0/U) of 3.6/6kV-26/36kV system.It is routed in air (cable bridge frame,indoor wall support,and tray) and soil(direct buried, cable trench,pipe ect.) respectively according to difference of the protection layer structure.





Application



Used for power transmission and distribution line with voltage rated at 35kV and below.
High and Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain.

Compared with PVC Insulated Power Cable, xlpe power cable boasts not only characteristics of excellent electricity, mechanism, heat and aging-resistant, environment stress-resistant and chemical corrosion-resistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working.





Construction

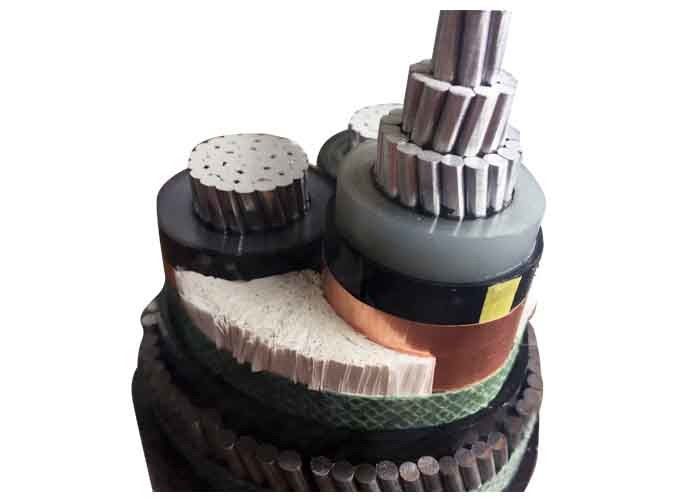

AL/XLPE/STA/PVC Armoured Electrical Cable



- Round bare aluminum core stranded according to IEC 60228
- Inner semi-conductive layer
- Core insulation XLPE
- Color code according to HD 308 S2
- Outer semi-conductive layer
- Semi-conductive tape
- Copper tape screen
- Filler
- PVC inner sheath
- Galvanized steel wire armour (SWA)
- PVC outer sheath (red or black)







MV(11kv 15kv 33kv) Power Cable
Model and Description Uo/U(Um)=3.6/6(7.2), 6/6(7.2), 6/10(12), 8.7/10(12), 8.7/15(17.5), 12/20(24), 18/30(36), 21/35(40.5), 26/35(40.5)kV No.of Core Conductor cross-section area(mm2)
xlpe insulation 1 core 3 core 10 16 25 35 70 95 120 150 185 240 300 400 500 630 sq mm
Cu core
YJV, N2XSY;PVC sheathed power cable
YJV22;steel tape armoured,PVC sheathed power cable
YJV32,YJV42;steel wire armoured ,PVC sheathed power cable
Al Core
YJLV, NA2XSY; PVC sheathed power cable
YJLV22;steel tape armoured,PVC sheathed power cable
YJLV32,YJLV42;steel wire armoured ,PVC sheathed power cable







Standard

International: IEC 60502, IEC 60228
China: GB/T 12706
Other standards such as BS, DIN and ICEA upon request




Technical data

Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 15 x cable O.D for single core
12 x cable O.D for multi core


Test voltage 6 / 10 kV [kV] 21 / 5 min.
  12 / 20 kV [kV] 42 / 5 min.
  18 / 30 kV [kV] 63 / 5 min.
Temperature range in motion   -5°C till +70°C
  fixed   -20°C till +70°C
Operating temperature short circuit °C 250
Short circuit time max. [sec] 5
Bending radius min. x diameter 15
Flammability standard   EN 60332-1-2



Certificate

ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others at request
