--> Distribution and signal power cable for static outdoor application (with protection against direct UV- irradiation);
--> In ground, in water, within facilities, in cable canals, in concrete,etc;
--> Used in electric power plants, transformer stations, industrial plants, metropolitan networks and in other electric plants, same as for connection of signalling devices in industry, traffic and similar.

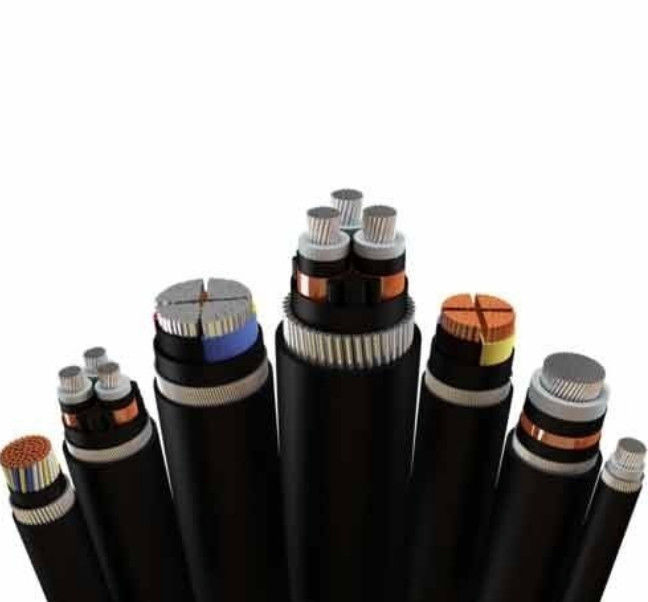

PVC insulated power armoured electrical cable is suitable for electricity transmission and distribution line whose rated voltage is 0.6/1kV. The flame retardant type is used in place where high density and good fire-proof property are required, such as subway, power station, high-rise building, entertainment place, large industriall and mining enterprises etc
Plain, annealed electrolytic copper or Aluminum conductors, solid, circular stranded, or sectorial stranded, conforming to the applicable requirements of IEC 60228.
PVC based thermoplastic or XLPE thermosetting material, conforming to the
applicable requirements of IEC 60502-1.
Insulated conductors are laid up, filled where necessary with non-hygroscopic material and covered with an extruded thickness of thermoplastic mate
► High dielectric strength
► Excellent resistance to deformations under high temperature and pressure
► High resistance to ageing, abrasion, moisture, chemicals, acids and oils
► Standard: IEC60502-1, BS5467, BS6346 ,VDE 0276-603, IEC60502-2 ,BS 6622
3.6/6.6(7.2) kV, 6/10(12)kV
|1x 25 mm2||3x 25 mm2|
|1x35 mm2||3x 35 mm2|
|1x50 mm2||3x 50 mm2|
|1x70 mm2||3x 70 mm2|
|1x95 mm2||3x 95 mm2|
|1x120 mm2||3x 120 mm2|
|1x150 mm2||3x 150 mm2|
|1x185 mm2||3x 185 mm2|
|1x240 mm2||3x 240 mm2|
|1x300 mm2||3x 300 mm2|
|1x400 mm2||3x 400 mm2|
|1x500 mm2||3x 500 mm2|
We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.
We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
