High Voltage 3 X 240 mm2 CU SWA Electrical Armoured Electrical Cable Three Core Cables

MOQ:	300 Meters
Price:	US$0.49 - US$125 / Meter
Standard Packaging:	Wooden Drums
Delivery Period:	7-10 days
Payment Method:	T/T, L/C
Supply Capacity:	15,000 KMs per Month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

QINGDAO YICABLE CABLE

Certification

ISO,CE,IEC,TUV,KEMA

Product Name:

Armoured Power Cable

Insulation:

XLPE

Armour:

Steel Wire

Conductor:

Copper

Sheath:

PVC, PE, LSOH

Cores:

3 Cores

Standard:

IEC, BS, IS, VDE

Warranty:

2 Years

Highlight:

armored cable wiring

armoured power cable

Product Description

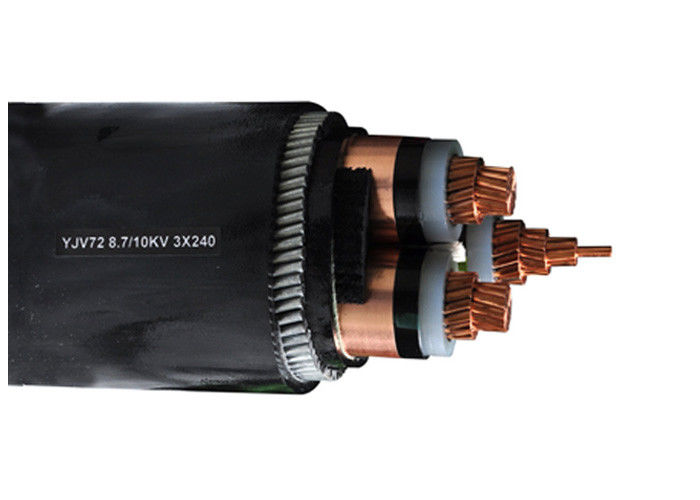

High Voltage 3 X 240 mm2 CU SWA Electrical Armoured Cable Three Core Cables

Construction

Conductor	Compact Stranded Copper Conductor, Class 2 as per IEC 60228
	Circular solid Copper Conductor, Class 1 as per IEC 60228
	Flexible Stranded Copper Conductor, Class 5 as per IEC 60228
Conductor Screen	Semi-conductor (MV only)
Insulation	XLPE(Cross-linked polyethylene)
Insulation Screen	Semi-conductor (MV only)
Metalic Shield	Copper Tape Screen or Copper wire & copper tape Shield (MV must, LV optional)
Filler	Fillers strip
Wrapping Tape	Non woven wrapping tape or lsoh wrapping tape
Inner Covering	Extruded PVC, or LSOH (MV only)
Armour	Steel Tape Armour, Steel Wire or Aluminium Wire Armor optional
Overall Sheath	PVC, FR-PVC, PE or LSOH

YJ: XLPE insulation
V: PVC sheath
32: Steel wire armoring—3 cores
22: Steel tape armoring—3 cores
72: Aluminum wire armoring—1 core
62: Stainless steel tape armoring—1 core
ZR: Flame resistant

Application

Used in transformer stations, switching blocks, in electric power plants and industrial plants.
Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain.

MV(6 to 35kv) Power Cable Details

MV(11kv 15kv 33kv) Power Cable
Model and Description Uo/U(Um)=3.6/6(7.2), 6/6(7.2), 6/10(12), 8.7/10(12), 8.7/15(17.5), 12/20(24), 18/30(36), 21/35(40.5), 26/35(40.5)kV	No.of Core	Conductor cross-section area(mm2)
xlpe insulation	1 core 3 core	10 16 25 35 70 95 120 150 185 240 300 400 500 630 sq mm
Cu core
YJV, N2XSY;PVC sheathed power cable
YJV22;steel tape armoured,PVC sheathed power cable
YJV32,YJV42;steel wire armoured ,PVC sheathed power cable
Al Core
YJLV, NA2XSY; PVC sheathed power cable
YJLV22;steel tape armoured,PVC sheathed power cable
YJLV32,YJLV42;steel wire armoured ,PVC sheathed power cable

This product is applicable to the power transmission and distribution line with AC rated voltage(U0/U) of 3.6/6kV-26/36kV system.It is routed in air (cable bridge frame,indoor wall support,and tray) and soil(direct buried, cable trench,pipe ect.) respectively according to difference of the protection layer structure.

Standards

International: IEC 60502-2, IEC 60228
China: GB/T 12706.2-2008
Other standards such as BS,DIN and ICEA upon request

Technical data
- Power cable according to DIN VDE 0276 part 603, HD 620, IEC 60502, BS 6622
- Temperature range max. to +90 °C
- Temperature during installation from 0 °C to +70 °C
- Short circuit temperature +250 °C (up to 5 seconds)
- Nominal voltage Uo/U 3,6/6 kV, 6/10 kV, 6,35/11 kV (dle BS), 18/30 kV, 19/33 kV (dle BS)
- Operating voltages 3,6/6 kV = max. 7,2 kV 6/10 kV = max. 12 kV 18/30 kV = max. 36 kV
- Test voltage a.c. 3,6/6 kV = 11 kV up to 5 min. 6/10 kV = 21 kV up to 5 min. 18/30 kV = 63 kV up to 5 min.
- Minimum bending radius approx. 15 cable diameter

Test voltage	6 / 10 kV	[kV]	21 / 5 min.
	12 / 20 kV	[kV]	42 / 5 min.
	18 / 30 kV	[kV]	63 / 5 min.
Temperature range	in motion		-5°C till +70°C
	fixed		-20°C till +70°C
Operating temperature	short circuit	°C	250
Short circuit time	max.	[sec]	5
Bending radius	min.	x diameter	15
Flammability	standard		EN 60332-1-2

*) Packing: CUT = cable in different lengths on drum or reel, possible cutting at required length

Certificate

ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others at request

Packing and Shipping

All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum. The packing material is depended on the weight and size of cable. After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight. The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.

Services
♦ We are the one of biggest manufacture of electric wire and power cable in China and has more than 20 years producing and marketing experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
