Copper Conductor LV Armoured Electrical Cable , 4 Cores Steel Wire Armored Cable
  • name
  • name
  • name

Copper Conductor LV Armoured Electrical Cable , 4 Cores Steel Wire Armored Cable

MOQ: 600 Meters
Price: US$0.5~121 per Meter
Standard Packaging: Wooden Drums
Delivery Period: 15 working days
Payment Method: T/T, L/C
Supply Capacity: 30,000 Kilometers per Month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QINGDAO YICABLE CABLE
Certification
ISO,CE,IEC,TUV,KEMA
Model Type:
CU/XLPE/SWA/PVC Cable
Rated Voltage:
1kV
Insulation:
XLPE
Conductor:
CU, Copper
Armour:
SWA, Steel Wire Armoured
Sizes:
1~ 630mm2
Cores:
4 Core
Sheath Material:
PVC, PE, LSOH
Standards:
IEC / BS / IS / VDE
Warranty:
2 Years
Free Sample:
Avaliable
Highlight:

armored electrical wire

,

armored cable wiring

Product Description

Copper Conductor LV Armoured Electrical Cable , 4 Cores Steel Wire Armored Cable

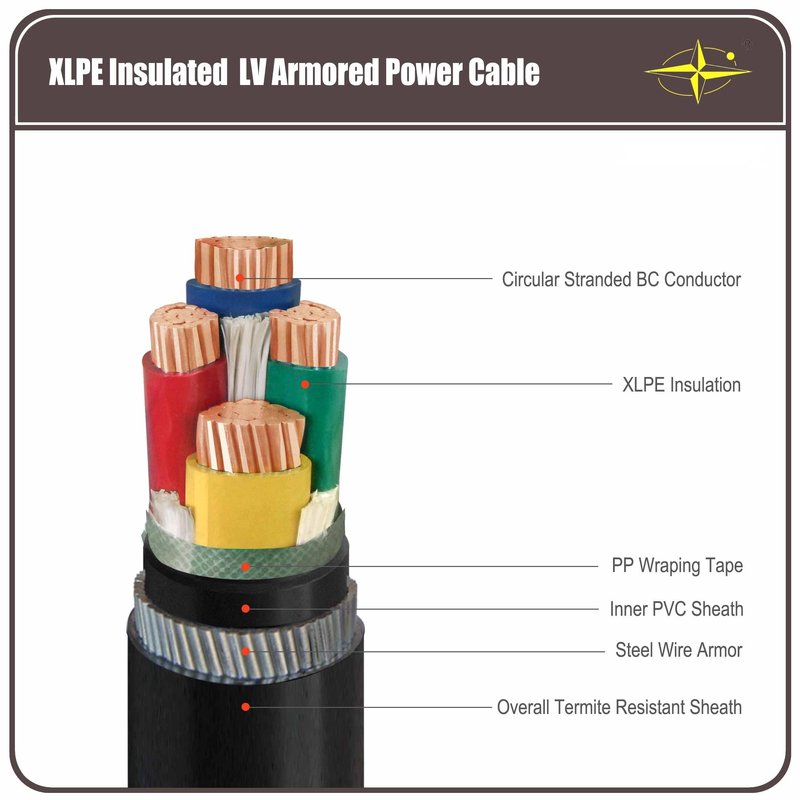

Construction



Conductor Compact Stranded Copper Conductor, Class 2 as per IEC 60228
Circular solid Copper Conductor, Class 1 as per IEC 60228
Insulation XLPE(Cross-linked polyethylene)
Filler PP Filler
Wrapping Tape Non woven
Inner Covering Extruded PVC
Armour Steel Wire
Overall Sheath

Termite Resistant PVC



Applications



Used for power transmission and distribution line with voltage rated at 35kV and below.Compared with PVC Insulated Power Cable, xlpe power cable boasts not only characteristics of excellent electricity, mechanism,

heat and aging-resistant, environment stress-resistant and chemical corrosion-resistant, but also simple

structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working.



Standards



International: IEC 60502-2, IEC 60228

China: GB/T 12706.2-2008

Other standards such as BS,DIN and ICEA upon request



Technical data



Rated voltage: 0.6/1kV

Maximum Conductor Temperature: under normal (90°C), emergency (130°C) or short circuit no more than 5 s (250°C) conditions.

Min. Ambient Temp. 0°C, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single-core non-armoured cables

15 x cable O.D for single-core armoured cables

15 x cable O.D for multi-core non-armoured cables

12 x cable O.D for multi-core armoured cables







Specifications



Nom. Cross-section of conductor

Strands

No./Dia. Of Conductor

 Insulation Thickness Inner Covering Thickness Dia. Of Armor Wire Sheath Thickness Approx. O.D.

Approx.

Weight

 Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 pc/mm mm 　 　 mm (mm) kg/km Ω /km kV/5min In air (A) In soil(A)
4 × 4 7/0.85 0.7 1.0 0.9 1.8 18.0 699 4.61 3.5 34 45
4 × 6 7/1.04 0.7 1.0 1.25 1.8 19.0 820 3.08 3.5 43 57
4 × 10 7/1.38 0.7 1.0 1.25 1.8 22.0 1233 1.83 3.5 60 77
4 × 16 7/1.78 0.7 1.0 1.6 1.8 24.5 1550 1.15 3.5 83 105
4 × 25 7/2.14 0.9 1.0 1.6 1.8 29.2 2036 0.727 3.5 105 125
4 × 35 7/2.52 0.9 1.0 2.0 1.9 32.5 2501 0.524 3.5 125 155
4 × 50 10/2.52 1.0 1.0 2.0 2.0 33.0 3064 0.387 3.5 160 185
4 × 70 14/2.52 1.1 1.0 2.0 2.1 37.0 3974 0.268 3.5 200 225
4 × 95 19/2.52 1.1 1.2 2.0 2.3 43.0 5032 0.193 3.5 245 270
4 × 120 24/2.52 1.2 1.2 2.5 2.5 45.0 6327 0.153 3.5 285 310
4 × 150 30/2.52 1.4 1.4 2.5 2.7 51.0 7765 0.124 3.5 325 345
4 × 185 37/2.52 1.6 1.4 2.5 2.8 56.0 9205 0.0991 3.5 375 390
4 × 240 48/2.52 1.7 1.4 2.5 3.0 62.0 11444 0.0754 3.5 440 450
4 × 300 61/2.52 1.8 1.6 2.5 3.2 67.0 13830 0.0601 3.5 505 515
4 × 400 61/2.97 2.0 1.6 3.15 3.5 74.0 19673 0.0470 3.5 570 575









Copper Conductor LV Armoured Electrical Cable , 4 Cores Steel Wire Armored Cable 0






PACKING AND SHIPPING




We are capable of meeting the most strict delivery schedules according to per purchase order.

Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.

Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP

self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture.

The required marking shall be printed with a weather-proof material on the outsides of drum

according to customer's requirement.
