Lightweight Armoured Electrical Cable

Lightweight Armoured Electrical Cable

  • High Light

    armored electrical wire

    ,

    armored cable wiring

  • Product Type
    High Voltage Cable
  • Conductor
    Copper, CU
  • Insulation
    XLPE
  • Armor
    Galvanized Steel Tape, STA
  • Cores
    4 Core
  • Sheath Material
    PVC / PE
  • Standards
    IEC / BS / IS / VDE
  • Warranty
    2 Years
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    ISO,CE,IEC,TUV,KEMA
  • Minimum Order Quantity
    500 Meters
  • Price
    US$0.51~125 per Meter
  • Packaging Details
    Wooden Drums
  • Delivery Time
    10 work days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    10,000 KMs / Month

Lightweight Armoured Electrical Cable

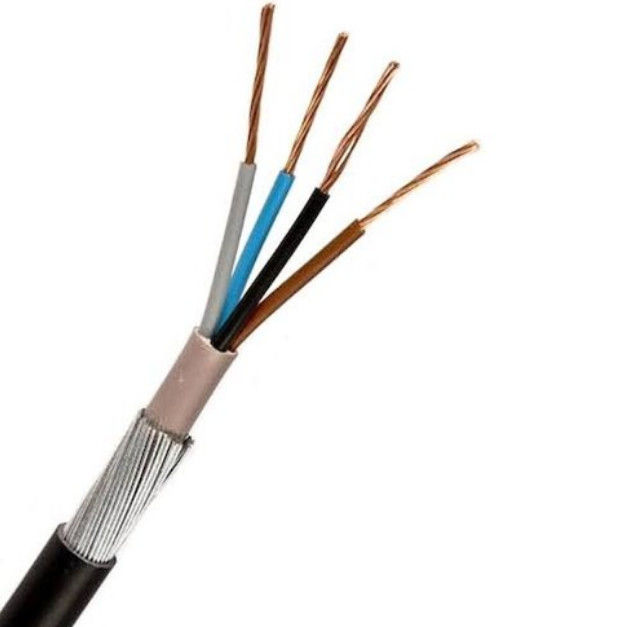

Lightweight Armoured Electrical Cable 4 Core With Bare Earth Copper Conductor

Armoured cable is covered by a metal sheath which protects the cable from water and extreme temperatures, allowing it to be used in underground or external projects as well as indoor applications. SWA cable, which means steel wire armoured is heavy and difficult to bend which helps to reduce the risk of pinching and damage.


Property

1. The highest allowed operating temperature of conductor for long-term working is 90 degrees.
2. In short circuit (Max long term is no more than 5 seconds),the highest temperature for conductor is no more than 250 degrees.
3. the environmental temperature of operating in air should be no more than 40 degrees, and 25 degrees underground.
4. Excellent electrical performance, resistance to chemical corrosion.


Conductor

Plain, annealed electrolytic copper or Aluminum conductors, solid, circular stranded, or sectorial stranded, conforming to the applicable requirements of IEC 60228.

Insulation

PVC based thermoplastic or XLPE thermosetting material, conforming to the
applicable requirements of IEC 60502-1.

Assembly

Insulated conductors are laid up, filled where necessary with non-hygroscopic material and covered with an extruded thickness of thermoplastic mate

Features

High dielectric strength
Excellent resistance to deformations under high temperature and pressure
High resistance to ageing, abrasion, moisture, chemicals, acids and oils
Standard: IEC60502-1, BS5467, BS6346 ,VDE 0276-603, IEC60502-2 ,BS 6622


Voltage rating for Medium Voltage XLPE Power CableNo. x Nominal Cross Section
of Conductor No. x mm2
1 core3 core


3.6/6(7.2)kV
3.6/6.6(7.2) kV, 6/10(12)kV
8.7/10(12)kV, 8.7/15(17.5)kV
12/20(24)kV
18/30(36)kV
21/35(40.5)kV
26/35(40.5)kV
1x 25 mm23x 25 mm2
1x35 mm23x 35 mm2
1x50 mm23x 50 mm2
1x70 mm23x 70 mm2
1x95 mm23x 95 mm2
1x120 mm23x 120 mm2
1x150 mm23x 150 mm2
1x185 mm23x 185 mm2
1x240 mm23x 240 mm2
1x300 mm23x 300 mm2
1x400 mm23x 400 mm2
1x500 mm23x 500 mm2
1x630 mm2




We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.
We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
