Copper Armoured Electrical Cable

Copper Armoured Electrical Cable

  • High Light

    armored electrical wire

    ,

    armoured power cable

  • Warranty
    2 Years
  • Conductor
    Copper / Aluminum
  • Insulation
    XLPE
  • Outer Sheath
    PVC-ST2
  • Bending Radius
    12x Cable O.D
  • Armoured
    Steel Wire
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    KEMA/CE/TUV/ISO
  • Minimum Order Quantity
    500m
  • Price
    USD 4.78-8.73/M
  • Packaging Details
    Wooden Drum
  • Delivery Time
    7 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    638970KM/week

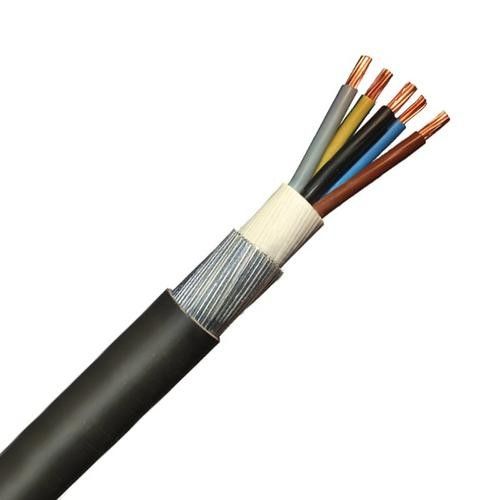

Copper Armoured Electrical Cable

Power Plant Three Phase XLPE Insulation Steel Wire Armoured Electrical Cable 33KV 3x300mm2



Designed for use in mains supply electricity. These cables are provided with mechanical protection are therefore suitable for external use and direct burial.



Steel Wire Armour cable (SWA) is a hard-wearing power cable, with mechanical protection, designed for the supply of mains electricity. SWA is suitable for indoors and outdoors, in cable ducts or directly buried in the ground. Multi-core steel wire armoured cable can also be used for auxiliary control.



Armoured cable is protected by a sheath of wire armouring making it suitable for direct burial or use overhead without further protection.





Property

1. The highest allowed operating temperature of conductor for long-term working is 90 degrees.
2. In short circuit (Max long term is no more than 5 seconds),the highest temperature for conductor is no more than 250 degrees.
3. the environmental temperature of operating in air should be no more than 40 degrees, and 25 degrees underground.
4. Excellent electrical performance, resistance to chemical corrosion.


Conductor



Plain, annealed electrolytic copper or Aluminum conductors, solid, circular stranded, or sectorial stranded, conforming to the applicable requirements of IEC 60228.



Insulation



PVC based thermoplastic or XLPE thermosetting material, conforming to the

applicable requirements of IEC 60502-1.



Assembly



Insulated conductors are laid up, filled where necessary with non-hygroscopic material and covered with an extruded thickness of thermoplastic mate



Features



High dielectric strength

Excellent resistance to deformations under high temperature and pressure

High resistance to ageing, abrasion, moisture, chemicals, acids and oils

Standard: IEC60502-1, BS5467, BS6346 ,VDE 0276-603, IEC60502-2 ,BS 6622


Voltage rating for Medium Voltage XLPE Power Cable No. x Nominal Cross Section
of Conductor No. x mm2
1 core 3 core


3.6/6(7.2)kV
3.6/6.6(7.2) kV, 6/10(12)kV
8.7/10(12)kV, 8.7/15(17.5)kV
12/20(24)kV
18/30(36)kV
21/35(40.5)kV
26/35(40.5)kV
1x 25 mm2 3x 25 mm2
1x35 mm2 3x 35 mm2
1x50 mm2 3x 50 mm2
1x70 mm2 3x 70 mm2
1x95 mm2 3x 95 mm2
1x120 mm2 3x 120 mm2
1x150 mm2 3x 150 mm2
1x185 mm2 3x 185 mm2
1x240 mm2 3x 240 mm2
1x300 mm2 3x 300 mm2
1x400 mm2 3x 400 mm2
1x500 mm2 3x 500 mm2
1x630 mm2





We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
