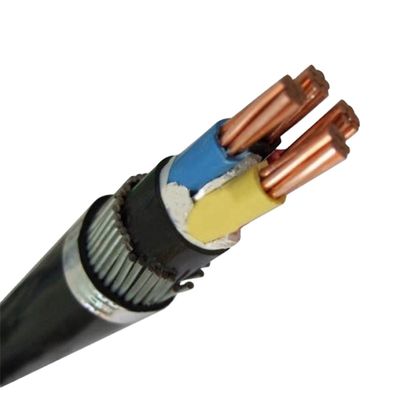

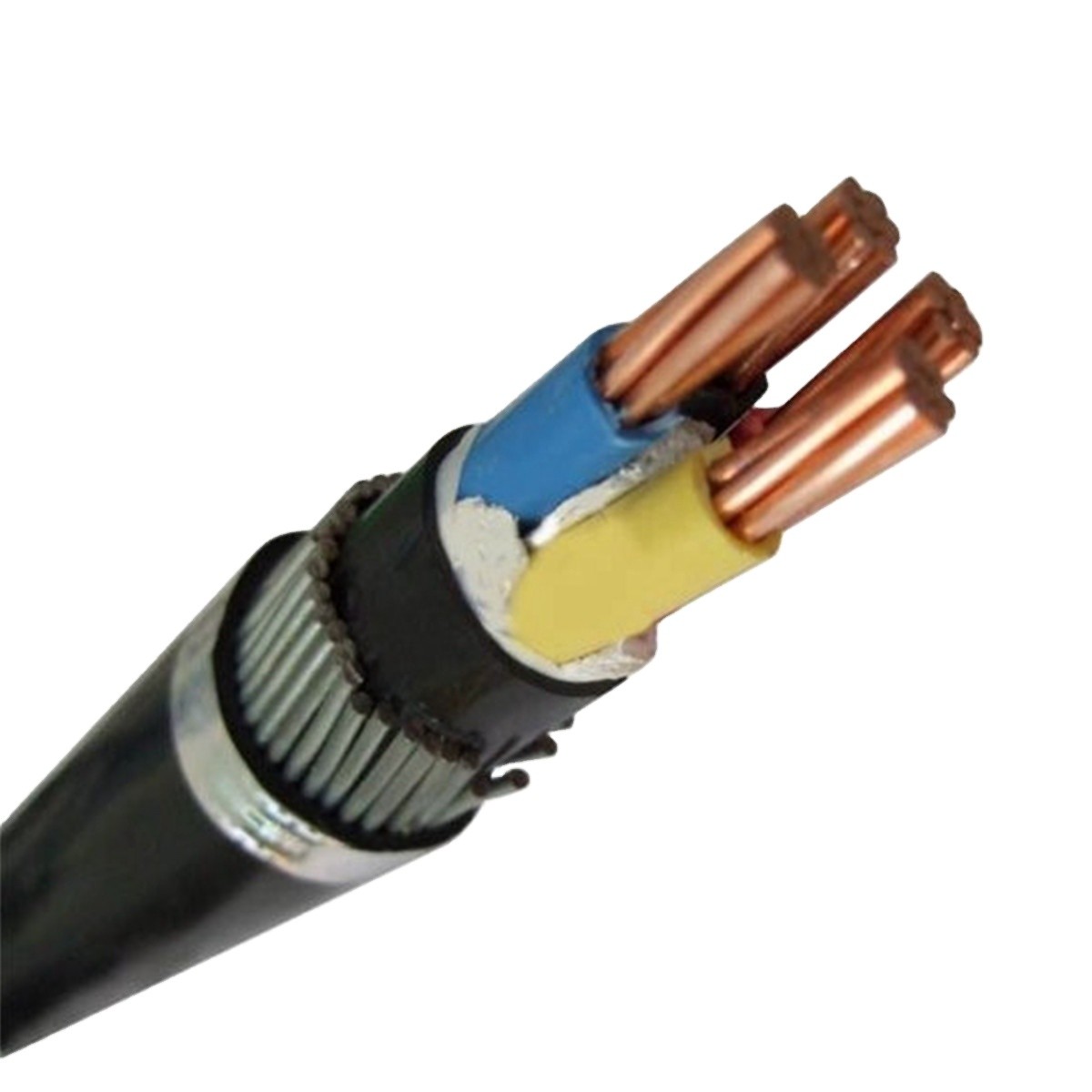

ISO9001 0.6kv 1.5mm2 4 Nuclear PVC Insulated Cable

MOQ:	1000meter
Standard Packaging:	Wooden drum
Delivery Period:	Seven days
Payment Method:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Capacity:	30000 Kilometer per Month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HOLD-ONE

Certification

ISO,CE,IEC,KEMA

Model Name:

1.5mm2~300mm2 PVC Insulated Cable

Conductor Type:

Size:

1.5mm2~300mm2

Core No.:

Insulation Color:

Customization

Sheath Color:

Normaly Black Or Red Or Customization

No. Of Cores:

Singel Core

Rated Voltage:

0.6 / 1KV

Nominal Section:

0~630 Square Mm

Certification:

ISO9001

Highlight:

4 Nuclear PVC Insulated Cable

1.5mm2 PVC Insulated Cable

0.6kv PVC Insulated Cable

Product Description

ISO9001 4 nuclear PVC insulated cable

PVC insulated power cable

PVC has long been used as insulation and external heating material. Because PVC has a certain degree of flame retardancy, and has oil and chemical resistance properties, many suitable applications have been found, including low power and control applications. Generally, they are two types of PVC, general-purpose and heat-resistant PVC, and the maximum conductor temperature is 70°C and 90°C, respectively.

PVC insulated cables are used for power distribution, building wires, equipment wiring, flexible wires and machine tool wiring. Insulating materials and sheaths made of PVC have many desirable properties, making them the first choice for insulating and sheathing materials for many common applications. These properties include flexibility, temperature resistance, resistance to adverse environments and low cost.

PVC insulated cables can be manufactured with or without armor, including a cable with a reduced neutral and a phase-to-phase voltage of 1000 volts. Conductors mainly used for ordinary annealed copper are also available, and other conductors such as tinned copper and aluminum are also available, and can be provided on request.

Technical Parameters:

Cross Section	Conductor	Conductor Screen	Insulation	Insulation Screen	Metallic Screen	Inner Sheath	Armour	Screen Layer No.	Outer Sheath	Overall Diameter	Copper Cable	Aluminum Cable
mm2	mm	mm	mm	mm	mm	mm	mm		mm	mm	kg/km	kg/km
50	8.4	0.8	10.5	0.8	0.1	2.0	0.8	2	4	86	8906	7997
70	10	0.8	10.5	0.8	0.1	2.1	0.8	2	4	90	9944	8671
95	11.5	0.8	10.5	0.8	0.1	2.1	0.8	2	4	94	11112	9375
120	13	0.8	10.5	0.8	0.1	2.2	0.8	2	4	97	12253	10059
150	14.5	0.8	10.5	0.8	0.1	2.3	0.8	2	4	101	13557	10800
185	16.2	0.8	10.5	0.8	0.1	2.3	0.8	2	4	105	15059	11645
240	18.4	0.8	10.5	0.8	0.1	2.4	0.8	2	4	110	17249	12837

Application

PVC insulated power cables are suitable for transmission and distribution systems with a rated voltage of 0.6/1kV. For fixed installation in the open air, buried directly in the cable trough. Steel tape armored (STA) cables can withstand mechanical forces, but cannot withstand large tensile forces. Steel armored (SWA) cables can withstand mechanical and tensile forces.
