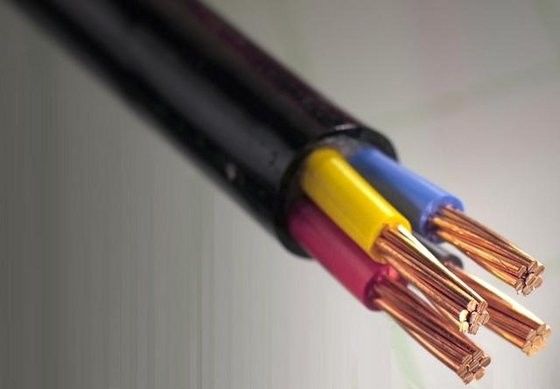

Cu Core STA PVC Insulated Cable 3+1 Cores Steel Tape Armored 600V / 1000V

Cu Core STA PVC Insulated Cable 3+1 Cores Steel Tape Armored 600V / 1000V

Products - PVC Insulated Cable
  • High Light

    pvc insulated copper wire

    ,

    pvc sheathed wiring

  • Model Type
    STA Armoured PVC Insulated Cables
  • Rated Voltage
    600/1000V
  • Insulation
    PVC
  • Conductor
    CU
  • Armour
    STA
  • Sizes
    16~ 630mm2
  • Cores
    3+1 Cores
  • Standards
    IEC
  • Warranty
    2 Years
  • Free Sample
    Avaliable
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    ISO,IEC,KEMA
  • Minimum Order Quantity
    500 Meters
  • Price
    US$0.5~59.8 per Meter
  • Packaging Details
    Wooden Drums
  • Delivery Time
    15 working days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    30,000 Kilometers per Month

Cu Core STA PVC Insulated Cable 3+1 Cores Steel Tape Armored 600V / 1000V

  • Cu Core STA PVC Insulated Cable 3+1 Cores Steel Tape Armored 600V / 1000V
Get Price Contact Now

Cu Core STA PVC Insulated Cables 3+1 Cores Steel Tape Armored Cable ZR-VV22 600/1000V

Property for Application



a. The allowed max. continuous work temperature for various types of cable conductor cores in 70℃, the max. temperature for short circuit ( 5s) , cable conductor should not exceed 160 ℃.

b. The environmental temperature for laying cable should be not lower than 0 ℃ and the cable bend radius should be not less than 10 times of overall cable diameter.



Type: PVC Insulated Electric Cable

Conductor: Copper or Aluminum
Insulation: Polyvinyl chloride (PVC)
Filler: Polypropylene tape (pp tape)
Wrap Tape: Non-woven fabric or PP wrapping tape
Armour: STA/SWA/AWA Armoured or Unarmoured
Outer Sheath: Polyvinyl chloride (PVC)
Standards: CCC/UL/CE Certificate



Properties



High insulation, excellent properties, bright colour.


Cable with a PVC insulation or sheathing is flame retardant, which is an important consideration for electric cables in most applications. PVC can be made resistant to a wide range of chemicals including oils, acids and alkalis, and is tough, durable and resistant to abrasion. The addition of various additives can improve its temperature range, typically from -40 to 105°C, as well as the resistance to sunlight, reduced smoke emission and improved water resistance.



Technical Parameters:



Cross Section Conductor Conductor Screen Insulation Insulation Screen Metallic Screen Inner Sheath Armour Screen Layer No. Outer Sheath Overall Diameter Copper Cable Aluminum Cable
mm2 mm mm mm mm mm mm mm   mm mm kg/km kg/km
50 8.4 0.8 10.5 0.8 0.1 2.0 0.8 2 4 86 8906 7997
70 10 0.8 10.5 0.8 0.1 2.1 0.8 2 4 90 9944 8671
95 11.5 0.8 10.5 0.8 0.1 2.1 0.8 2 4 94 11112 9375
120 13 0.8 10.5 0.8 0.1 2.2 0.8 2 4 97 12253 10059
150 14.5 0.8 10.5 0.8 0.1 2.3 0.8 2 4 101 13557 10800
185 16.2 0.8 10.5 0.8 0.1 2.3 0.8 2 4 105 15059 11645
240 18.4 0.8 10.5 0.8 0.1 2.4 0.8 2 4 110 17249 12837
300 20.5 0.8 10.5 0.8 0.1 2.5 0.8 2 5 115 19603 14061
400 23.5 0.8 10.5 0.8 0.1 2.6 0.8 2 5 122 23151 15874
500 26.5 0.8 10.5 0.8 0.1 2.8 0.8 2 5 129 27045 17807




We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!


About us

Founded in 2000, HOLD-ONE. is a modern large-scale enterprise specializing in R&D and manufacturing of wire and cable. The company has an insulated wire workshop, a low voltage cable workshop, a high voltage cable workshop and cable accessories, and a copper processing workshop. It consists of administrative affairs department, marketing department, technology research and development department, quality management department, planning and finance department, material supply department, safety production department, etc., and has sales and service organizations in 106 large and medium cities across the country. The company's leading products are: rubber sheathed flexible cable, polyethylene sheathed flexible cable, PVC insulated control cable, PVC insulated power cable, overhead insulated cable, aluminum stranded wire and steel core aluminum stranded wire, PVC insulated Sheath (soft) wire and cable, etc., and focus on the development and production of low-smoke halogen-free, low-smoke low-halogen, pre-branch cable and various flame retardant, fire-resistant, shielding and other special cables up to more than 10,000 specifications. The annual production capacity can reach 1 billion yuan. Companies can produce according to national or international standards.
