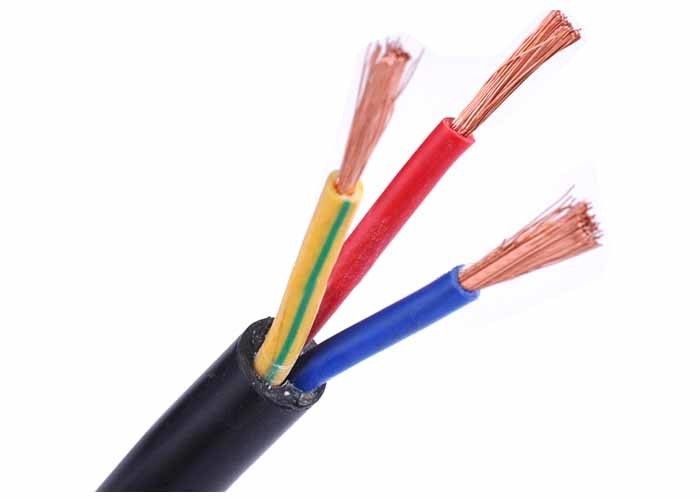

Customized PVC Insulated Cable 600 / 1000V Rated Voltage With Three Half Core

Customized PVC Insulated Cable 600 / 1000V Rated Voltage With Three Half Core

Products - PVC Insulated Cable
  • High Light

    copper pvc wire

    ,

    pvc sheathed wiring

  • Model Name
    PVC Insulated Cable 3+1 Cores
  • Core No.
    3+1
  • Insulation Color
    Customization
  • Size
    1.5sqmm~400 Sqmm
  • Conductor Type
    Copper
  • Sheath Color
    Normally Black
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    ISO,CE,IEC,KEMA
  • Minimum Order Quantity
    1000 meter
  • Price
    US$2.06~71.95per meter
  • Packaging Details
    Wooden drums for export
  • Delivery Time
    10 days
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union, MoneyGram
  • Supply Ability
    30 Kilometer per Week

Customized PVC Insulated Cable 600 / 1000V Rated Voltage With Three Half Core

  • Customized PVC Insulated Cable 600 / 1000V Rated Voltage With Three Half Core
Get Price Contact Now



1000V Copper Conductor PVC Insulated Cables Customized With Three Half Core



Standards and Scope of Application


With the characteristics of stable capability , advanced technology , broad materials resources , low price , good flexible and easy to lay and maintain , the PVC insulated power cables are suitable to be laid for distribution line with A.C.50HZ and tared voltage 10kV and below . We can produce the cables as per GB , IEC , BS , VDE , AS/NZS , ICEA ,JIS.


Type: PVC Insulated Electric Cable

Conductor: Copper or Aluminum
Insulation: Polyvinyl chloride (PVC)
Filler: Polypropylene tape (pp tape)
Wrap Tape: Non-woven fabric or PP wrapping tape
Armour: STA/SWA/AWA Armoured or Unarmoured
Outer Sheath: Polyvinyl chloride (PVC)
Standards: CCC/UL/CE Certificate



Properties



High insulation, excellent properties, bright colour.


Cable with a PVC insulation or sheathing is flame retardant, which is an important consideration for electric cables in most applications. PVC can be made resistant to a wide range of chemicals including oils, acids and alkalis, and is tough, durable and resistant to abrasion. The addition of various additives can improve its temperature range, typically from -40 to 105°C, as well as the resistance to sunlight, reduced smoke emission and improved water resistance.



Technical Parameters:



Cross Section Conductor Conductor Screen Insulation Insulation Screen Metallic Screen Inner Sheath Armour Screen Layer No. Outer Sheath Overall Diameter Copper Cable Aluminum Cable
mm2 mm mm mm mm mm mm mm   mm mm kg/km kg/km
50 8.4 0.8 10.5 0.8 0.1 2.0 0.8 2 4 86 8906 7997
70 10 0.8 10.5 0.8 0.1 2.1 0.8 2 4 90 9944 8671
95 11.5 0.8 10.5 0.8 0.1 2.1 0.8 2 4 94 11112 9375
120 13 0.8 10.5 0.8 0.1 2.2 0.8 2 4 97 12253 10059
150 14.5 0.8 10.5 0.8 0.1 2.3 0.8 2 4 101 13557 10800
185 16.2 0.8 10.5 0.8 0.1 2.3 0.8 2 4 105 15059 11645
240 18.4 0.8 10.5 0.8 0.1 2.4 0.8 2 4 110 17249 12837
300 20.5 0.8 10.5 0.8 0.1 2.5 0.8 2 5 115 19603 14061
400 23.5 0.8 10.5 0.8 0.1 2.6 0.8 2 5 122 23151 15874
500 26.5 0.8 10.5 0.8 0.1 2.8 0.8 2 5 129 27045 17807




We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
