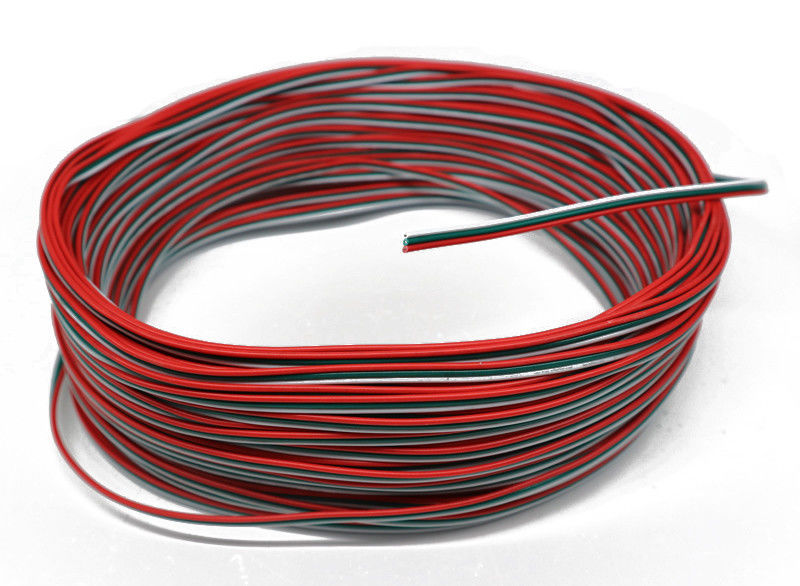

Multi Cores PVC Insulated Cable H07V - K 450 / 750 V VDE Standard

Multi Cores PVC Insulated Cable H07V - K 450 / 750 V VDE Standard

Products - PVC Insulated Cable
  • High Light

    pvc insulated copper wire

    ,

    pvc sheathed wiring

  • Application
    Fixed Wiring Which Requires Flexibility
  • Core
    Multi-cores
  • Insulation
    PVC
  • Conductor
    Stranded Copper
  • Sample
    Free With Delivery Cost On Client Side
  • Color
    Yellow/Green,Black Or As Per Requested
  • Origin
    China
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    ISO/TUV/UL/VDE/KEMA/CE
  • Minimum Order Quantity
    100m
  • Price
    USD 0.09-2.89/M
  • Packaging Details
    100m/roll
  • Delivery Time
    7 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    10000KM/Month

Multi Cores PVC Insulated Cable H07V - K 450 / 750 V VDE Standard

  • Multi Cores PVC Insulated Cable H07V - K 450 / 750 V VDE Standard
Get Price Contact Now

Flexible PVC Insulated H07V-K 450 / 750V Multi Cores Electrical Wire VDE Standard



Application:

The cable is suitable to be fixed wireing of power device,power lighting of home electric equipment and instrument, inner wiring of electric enquipment Instrument, electron equipment, automatization device etc.



Type: PVC Insulated Electric Cable

Conductor: Copper or Aluminum
Insulation: Polyvinyl chloride (PVC)
Filler: Polypropylene tape (pp tape)
Wrap Tape: Non-woven fabric or PP wrapping tape
Armour: STA/SWA/AWA Armoured or Unarmoured
Outer Sheath: Polyvinyl chloride (PVC)
Standards: CCC/UL/CE Certificate



Properties



High insulation, excellent properties, bright colour.


Cable with a PVC insulation or sheathing is flame retardant, which is an important consideration for electric cables in most applications. PVC can be made resistant to a wide range of chemicals including oils, acids and alkalis, and is tough, durable and resistant to abrasion. The addition of various additives can improve its temperature range, typically from -40 to 105°C, as well as the resistance to sunlight, reduced smoke emission and improved water resistance.



Technical Parameters:



Cross Section Conductor Conductor Screen Insulation Insulation Screen Metallic Screen Inner Sheath Armour Screen Layer No. Outer Sheath Overall Diameter Copper Cable Aluminum Cable
mm2 mm mm mm mm mm mm mm   mm mm kg/km kg/km
50 8.4 0.8 10.5 0.8 0.1 2.0 0.8 2 4 86 8906 7997
70 10 0.8 10.5 0.8 0.1 2.1 0.8 2 4 90 9944 8671
95 11.5 0.8 10.5 0.8 0.1 2.1 0.8 2 4 94 11112 9375
120 13 0.8 10.5 0.8 0.1 2.2 0.8 2 4 97 12253 10059
150 14.5 0.8 10.5 0.8 0.1 2.3 0.8 2 4 101 13557 10800
185 16.2 0.8 10.5 0.8 0.1 2.3 0.8 2 4 105 15059 11645
240 18.4 0.8 10.5 0.8 0.1 2.4 0.8 2 4 110 17249 12837
300 20.5 0.8 10.5 0.8 0.1 2.5 0.8 2 5 115 19603 14061
400 23.5 0.8 10.5 0.8 0.1 2.6 0.8 2 5 122 23151 15874
500 26.5 0.8 10.5 0.8 0.1 2.8 0.8 2 5 129 27045 17807




We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
