150sqmm PVC Insulated Cable Oem 70 degree Conductor Temp Tuv / Kema Certificate

Product Details:
Place of Origin: China
Brand Name: HOLD-ONE
Certification: KEMA/CE/TUV/ISO/CNAS
Payment & Shipping Terms:
Minimum Order Quantity: 500m
Price: USD 0.08-3.68/M
Packaging Details: Wooden Drum
Delivery Time: 7 Days
Payment Terms: L/C, T/T
  • Detail Information
  • Product Description

Detail Information

Test Voltage: 3.5KV Conductor Temp: 70 Degree
Sample: Available Insulation: PVC
Armoured: Steel Tape Jacket: PVC
Warranty: 2 Years
High Light:

copper pvc wire


pvc sheathed wiring

Product Description

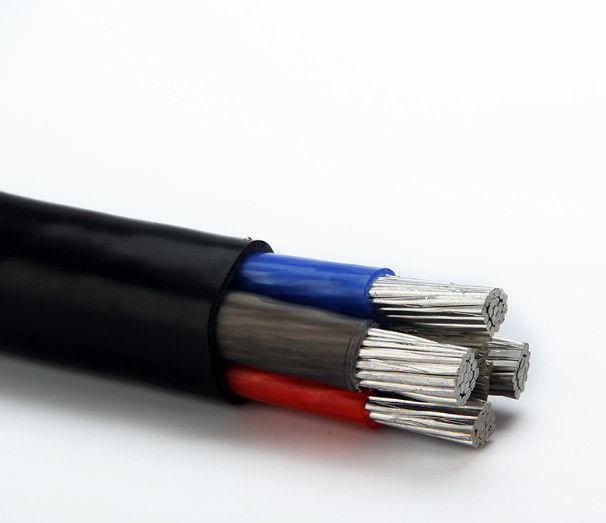

NYY -0.6/1KV 150SQ.MM Multicore PVC Insulated Cables With TUV/KEMA Certificate OEM Manufacturer
PVC insulated power cable is suitable for electricity transmission and distribution line whose rated voltage is 0.6/1kV. The flame retardant type is used in place where high density and good fire-proof property are required, such as subway, power station, high-rise building, entertainment place, large industriall and mining enterprises etc.

Type: PVC Insulated Electric Cable

Conductor: Copper or Aluminum
Insulation: Polyvinyl chloride (PVC)
Filler: Polypropylene tape (pp tape)
Wrap Tape: Non-woven fabric or PP wrapping tape
Armour: STA/SWA/AWA Armoured or Unarmoured
Outer Sheath: Polyvinyl chloride (PVC)
Standards: CCC/UL/CE Certificate





High insulation, excellent properties, bright colour.

Cable with a PVC insulation or sheathing is flame retardant, which is an important consideration for electric cables in most applications. PVC can be made resistant to a wide range of chemicals including oils, acids and alkalis, and is tough, durable and resistant to abrasion. The addition of various additives can improve its temperature range, typically from -40 to 105°C, as well as the resistance to sunlight, reduced smoke emission and improved water resistance.


Technical Parameters:


Cross Section Conductor Conductor Screen Insulation Insulation Screen Metallic Screen Inner Sheath Armour Screen Layer No. Outer Sheath Overall Diameter Copper Cable Aluminum Cable
mm2 mm mm mm mm mm mm mm   mm mm kg/km kg/km
50 8.4 0.8 10.5 0.8 0.1 2.0 0.8 2 4 86 8906 7997
70 10 0.8 10.5 0.8 0.1 2.1 0.8 2 4 90 9944 8671
95 11.5 0.8 10.5 0.8 0.1 2.1 0.8 2 4 94 11112 9375
120 13 0.8 10.5 0.8 0.1 2.2 0.8 2 4 97 12253 10059
150 14.5 0.8 10.5 0.8 0.1 2.3 0.8 2 4 101 13557 10800
185 16.2 0.8 10.5 0.8 0.1 2.3 0.8 2 4 105 15059 11645
240 18.4 0.8 10.5 0.8 0.1 2.4 0.8 2 4 110 17249 12837
300 20.5 0.8 10.5 0.8 0.1 2.5 0.8 2 5 115 19603 14061
400 23.5 0.8 10.5 0.8 0.1 2.6 0.8 2 5 122 23151 15874
500 26.5 0.8 10.5 0.8 0.1 2.8 0.8 2 5 129 27045 17807


We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!

About us
Founded in 2000, HOLD-ONE. is a modern large-scale enterprise specializing in R&D and manufacturing of wire and cable. The company has an insulated wire workshop, a low voltage cable workshop, a high voltage cable workshop and cable accessories, and a copper processing workshop. It consists of administrative affairs department, marketing department, technology research and development department, quality management department, planning and finance department, material supply department, safety production department, etc., and has sales and service organizations in 106 large and medium cities across the country. The company's leading products are: rubber sheathed flexible cable, polyethylene sheathed flexible cable, PVC insulated control cable, PVC insulated power cable, overhead insulated cable, aluminum stranded wire and steel core aluminum stranded wire, PVC insulated Sheath (soft) wire and cable, etc., and focus on the development and production of low-smoke halogen-free, low-smoke low-halogen, pre-branch cable and various flame retardant, fire-resistant, shielding and other special cables up to more than 10,000 specifications. The annual production capacity can reach 1 billion yuan. Companies can produce according to national or international standards.


Q: How long does it take to get a quote back?
A: Most quotes are returned within 24 hours, however, if it is for a special construction, it could take more days.
Q: What warranties do your products carry?
Q: Do you sell other products besides wire and cable?
A: Wire and cable is our forte, however, we also sell connectors, cable assemblies and cable tools to name just a few. Our products serve numerous markets all over the world.
