Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HOLD-ONE |
| Certification: | ISO,CE,IEC,KEMA |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1000meter |
| Packaging Details: | Wooden drum |
| Delivery Time: | Seven days |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 30000 Kilometer per Month |
|
Detail Information |
|||
| Model Name: | 1.5mm2~300mm2 PVC Insulated Cable | Conductor Type: | CU |
|---|---|---|---|
| Size: | 1.5mm2~300mm2 | Core No.: | 1 To 5 |
| Insulation Color: | Customization | Sheath Color: | Normaly Black Or Red Or Customization |
| No. Of Cores: | Singel Core | Rated Voltage: | 0 ~ 35kV |
| Nominal Section: | 0~630 Square Mm | Design Standards: | IEC 60502-2, IEC 60228 |
| High Light: | Wear Resistant PVC Insulated Cable,2.5mm2 PVC Insulated Cable,IEC 60228 PVC Insulated Cable |
||
Product Description

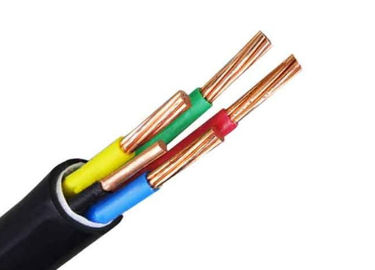

1.5mm2 2.5mm2 wear-resistant PVC insulated cable
Rated voltage:
0.6 / 1kv
Number of cores:
1 core, 2 cores, 3 cores, 3 + 1 cores, 3 + 2 cores, 4 cores, 4 + 1 cores, 5 cores
Application of PVC insulated power cable:
PVC insulated cables are suitable for laying in fixed locations. It is widely used in wire distribution and power transmission with AC rated voltage up to 1KV.
Service performance of PVC insulated power cable:
1) Rated voltage: 0.6 / 1KV
2) Long-term working temperature: not higher than 70℃
3) When laying cables, the ambient temperature should not be lower than 0°C
4) Minimum bending radius:
Cable total diameter ≤25mm, bending radius ≥4D
Bending radius≥6D, total cable diameter> 25mm
Technical Parameters:
| Cross Section | Conductor | Conductor Screen | Insulation | Insulation Screen | Metallic Screen | Inner Sheath | Armour | Screen Layer No. | Outer Sheath | Overall Diameter | Copper Cable | Aluminum Cable |
| mm2 | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg/km | kg/km | |
| 50 | 8.4 | 0.8 | 10.5 | 0.8 | 0.1 | 2.0 | 0.8 | 2 | 4 | 86 | 8906 | 7997 |
| 70 | 10 | 0.8 | 10.5 | 0.8 | 0.1 | 2.1 | 0.8 | 2 | 4 | 90 | 9944 | 8671 |
| 95 | 11.5 | 0.8 | 10.5 | 0.8 | 0.1 | 2.1 | 0.8 | 2 | 4 | 94 | 11112 | 9375 |
| 120 | 13 | 0.8 | 10.5 | 0.8 | 0.1 | 2.2 | 0.8 | 2 | 4 | 97 | 12253 | 10059 |
| 150 | 14.5 | 0.8 | 10.5 | 0.8 | 0.1 | 2.3 | 0.8 | 2 | 4 | 101 | 13557 | 10800 |
| 185 | 16.2 | 0.8 | 10.5 | 0.8 | 0.1 | 2.3 | 0.8 | 2 | 4 | 105 | 15059 | 11645 |
| 240 | 18.4 | 0.8 | 10.5 | 0.8 | 0.1 | 2.4 | 0.8 | 2 | 4 | 110 | 17249 | 12837 |
| 300 | 20.5 | 0.8 | 10.5 | 0.8 | 0.1 | 2.5 | 0.8 | 2 | 5 | 115 | 19603 | 14061 |
| 400 | 23.5 | 0.8 | 10.5 | 0.8 | 0.1 | 2.6 | 0.8 | 2 | 5 | 122 | 23151 | 15874 |
| 500 | 26.5 | 0.8 | 10.5 | 0.8 | 0.1 | 2.8 | 0.8 | 2 | 5 | 129 | 27045 | 17807 |
The main purpose
Cross-linked polyethylene (XLPE) cables have excellent electrical and physical properties and are the best cables for transmission and distribution lines. The advantages of these cables are simple structure and light weight; in addition to excellent electrical, thermal, mechanical and chemical resistance, they also have the convenience of application. It can also be placed along the route without being restricted by height differences.
