Heat Resistant Annealed 300mm2 Pvc Insulated Copper Cable

Product Details:
Place of Origin: China
Brand Name: HOLD-ONE
Certification: ISO,CE,IEC,KEMA
Payment & Shipping Terms:
Minimum Order Quantity: 1000meter
Packaging Details: Wooden drum
Delivery Time: Seven days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 30000 Kilometer per Month
  • Detail Information
  • Product Description

Detail Information

Model Name: 1.5mm2~300mm2 PVC Insulated Cable Conductor Type: CU
Size: 1.5mm2~300mm2 Core No.: 1 To 5
Insulation Color: Customization Sheath Color: Normaly Black Or Red Or Customization
High Light:

300mm2 Pvc Insulated Copper Cable


Annealed Pvc Insulated Copper Cable


KEMA PVC Insulated Cable

Product Description

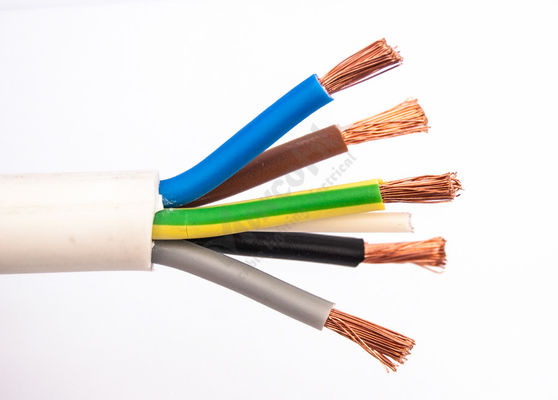

Copper Core PVC Insulated Flexible Cable


We are located among the famous PVC wire manufacturers in China. The low voltage PVC cables and PVC insulated cables we provide are designed and manufactured by experts. All of our PVC cables meet the industry's required specifications. In addition, PVC insulated cables are made of aluminum and copper conductors, which comply with various international standards. In addition, our PVC cables are recognized by leading electrical consulting companies.


Annealed copper wires with PVC insulation are suitable for connecting household appliances, small power tools, instruments and electrical lighting equipment, and are widely used as connectors for drivers, lighting, electrical equipment, instruments and telecommunications equipment.


Technical Parameters:


Cross Section Conductor Conductor Screen Insulation Insulation Screen Metallic Screen Inner Sheath Armour Screen Layer No. Outer Sheath Overall Diameter Copper Cable Aluminum Cable
mm2 mm mm mm mm mm mm mm   mm mm kg/km kg/km
50 8.4 0.8 10.5 0.8 0.1 2.0 0.8 2 4 86 8906 7997
70 10 0.8 10.5 0.8 0.1 2.1 0.8 2 4 90 9944 8671
95 11.5 0.8 10.5 0.8 0.1 2.1 0.8 2 4 94 11112 9375
120 13 0.8 10.5 0.8 0.1 2.2 0.8 2 4 97 12253 10059
150 14.5 0.8 10.5 0.8 0.1 2.3 0.8 2 4 101 13557 10800
185 16.2 0.8 10.5 0.8 0.1 2.3 0.8 2 4 105 15059 11645
240 18.4 0.8 10.5 0.8 0.1 2.4 0.8 2 4 110 17249 12837
300 20.5 0.8 10.5 0.8 0.1 2.5 0.8 2 5 115 19603 14061
400 23.5 0.8 10.5 0.8 0.1 2.6 0.8 2 5 122 23151 15874
500 26.5 0.8 10.5 0.8 0.1 2.8 0.8 2 5 129 27045 17807

Construction details


The conductor is made of electrolytic grade aluminum/copper, in line with IS: 8130: 1984 Class 1 and Class 2 standards
Insulation (IS: 5831-1984)
PVC Type A: General insulation for fixed installation cables.
PVC Type C: Heat-resistant (HR) insulation.

Core recognition

The core wire is identified by the following different colors:
Single core: red, yellow, blue, black or any color according to customer requirements

Two cores: red and black

Three cores: red, yellow and blue

Three and a half cores: red, yellow, blue and black neutral cores.

Quad core: red, yellow, blue and black

Five-core cable: red, yellow, blue, black and gray.

Six nuclei and above: the two adjacent nuclei (count and direction) in each layer are blue and yellow, and the rest are gray. The same sequence as above, and the indelible printing of core numbers, or all cores of the same color have an indelible numbered contrast color on each core. Other colors agreed with purchasers and manufacturers, with digital codes.



According to the above color scheme, stack the core wires with appropriate right-hand wires.

Inner sheath

According to the agreement between the supplier and the buyer to use thermoplastic materials, the laminated core is provided by wrapping or extrusion. The material used should be compatible with the temperature rating of the PVC cable.


Armour is provided on the inner sheath to prevent mechanical damage. Armor usually uses galvanized steel wire or steel belt. The armor should be properly left-handed on the inner sheath. The minimum coverage of the armor should be 90%. In single-core cables used in AC systems, non-magnetic hard aluminum wires should be used for armoring. If the diameter of the inner sheath does not exceed 13 mm (greater than 13 mm), round steel wire is used. Use flat steel tape armor. Different sizes of round wires can also be provided according to specific requirements.

PVC jacket

The outer sheath should be sheathed on the inner sheath or stacked cores. If an outer sheath is provided on the laminated core, the average thickness of the outer sheath should be the sum of the nominal thickness of the outer sheath and the minimum thickness of the inner sheath specified in IS:1554 (Part-1)-1988 The sheath specified in the standard.
