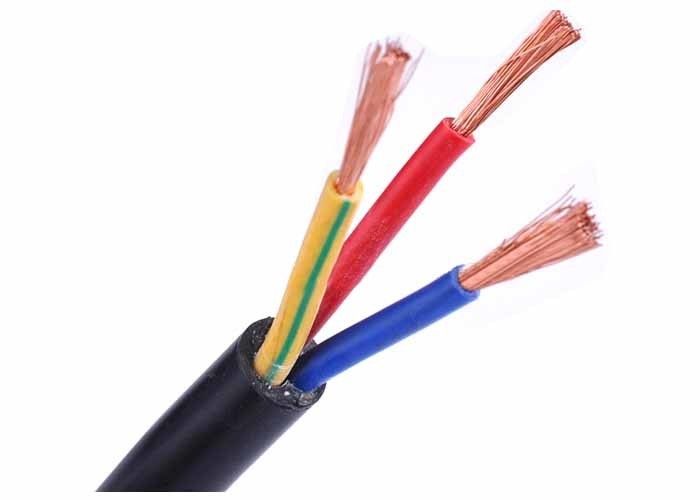

PVC Insulated Cable and PVC Sheathed Armoured Multicore Power Cable 4x240 mm2
Applications
PVC insulated power cable is suitable for electricity transmission and distribution line whose rated voltage is 0.6/1kV. The flame retardant type is used in place where high density and good fire-proof property are required, such as subway, power station, high-rise building, entertainment place, large industriall and mining enterprises etc.
Applications
PVC insulated power cable is suitable for electricity transmission and distribution line whose rated voltage is 0.6/1kV. The flame retardant type is used in place where high density and good fire-proof property are required, such as subway, power station, high-rise building, entertainment place, large industriall and mining enterprises etc.
Type: PVC Insulated Electric Cable
Conductor: Copper or Aluminum
Insulation: Polyvinyl chloride (PVC)
Filler: Polypropylene tape (pp tape)
Wrap Tape: Non-woven fabric or PP wrapping tape
Armour: STA/SWA/AWA Armoured or Unarmoured
Outer Sheath: Polyvinyl chloride (PVC)
Standards: CCC/UL/CE Certificate
Properties
High insulation, excellent properties, bright colour.
Cable with a PVC insulation or sheathing is flame retardant, which is an important consideration for electric cables in most applications. PVC can be made resistant to a wide range of chemicals including oils, acids and alkalis, and is tough, durable and resistant to abrasion. The addition of various additives can improve its temperature range, typically from -40 to 105°C, as well as the resistance to sunlight, reduced smoke emission and improved water resistance.
Technical Parameters:
Cross Section | Conductor | Conductor Screen | Insulation | Insulation Screen | Metallic Screen | Inner Sheath | Armour | Screen Layer No. | Outer Sheath | Overall Diameter | Copper Cable | Aluminum Cable |
mm2 | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg/km | kg/km | |
50 | 8.4 | 0.8 | 10.5 | 0.8 | 0.1 | 2.0 | 0.8 | 2 | 4 | 86 | 8906 | 7997 |
70 | 10 | 0.8 | 10.5 | 0.8 | 0.1 | 2.1 | 0.8 | 2 | 4 | 90 | 9944 | 8671 |
95 | 11.5 | 0.8 | 10.5 | 0.8 | 0.1 | 2.1 | 0.8 | 2 | 4 | 94 | 11112 | 9375 |
120 | 13 | 0.8 | 10.5 | 0.8 | 0.1 | 2.2 | 0.8 | 2 | 4 | 97 | 12253 | 10059 |
150 | 14.5 | 0.8 | 10.5 | 0.8 | 0.1 | 2.3 | 0.8 | 2 | 4 | 101 | 13557 | 10800 |
185 | 16.2 | 0.8 | 10.5 | 0.8 | 0.1 | 2.3 | 0.8 | 2 | 4 | 105 | 15059 | 11645 |
240 | 18.4 | 0.8 | 10.5 | 0.8 | 0.1 | 2.4 | 0.8 | 2 | 4 | 110 | 17249 | 12837 |
300 | 20.5 | 0.8 | 10.5 | 0.8 | 0.1 | 2.5 | 0.8 | 2 | 5 | 115 | 19603 | 14061 |
400 | 23.5 | 0.8 | 10.5 | 0.8 | 0.1 | 2.6 | 0.8 | 2 | 5 | 122 | 23151 | 15874 |
500 | 26.5 | 0.8 | 10.5 | 0.8 | 0.1 | 2.8 | 0.8 | 2 | 5 | 129 | 27045 | 17807 |
We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.
We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
FAQ
Q: How long does it take to get a quote back?
A: Most quotes are returned within 24 hours, however, if it is for a special construction, it could take more days.
Q: What warranties do your products carry?
Q: Do you sell other products besides wire and cable?
A: Wire and cable is our forte, however, we also sell connectors, cable assemblies and cable tools to name just a few. Our products serve numerous markets all over the world.
