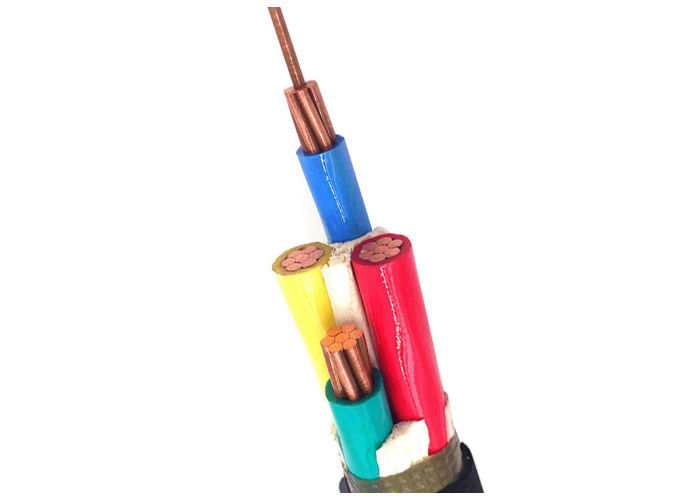

0.6/1kV Pvc Insulated Wire , 4 Core Pvc Cable IEC Standard Copper Conductor

0.6/1kV Pvc Insulated Wire , 4 Core Pvc Cable IEC Standard Copper Conductor

Products - PVC Insulated Cable
  • High Light

    pvc insulated copper wire

    ,

    copper pvc wire

  • Model Name
    PVC Cable 4 Cores
  • Conductor Type
    Copper
  • Size
    1.5mm2~400mm2
  • Core No.
    4
  • Insulation Color
    Any Color
  • Sheath Color
    Normally Black Or Customization
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    ISO,CE,IEC,KEMA
  • Minimum Order Quantity
    500meter
  • Price
    US$0.27~71.65per meter
  • Packaging Details
    Wooden drums or Steel -wooden drum
  • Delivery Time
    15 days
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union, MoneyGram
  • Supply Ability
    30000Kilometer per Month

0.6/1kV Pvc Insulated Wire , 4 Core Pvc Cable IEC Standard Copper Conductor

  • 0.6/1kV Pvc Insulated Wire , 4 Core Pvc Cable IEC Standard Copper Conductor
Get Price Contact Now



0.6/1kV Copper Conductor Power Cable Four Core PVC Insulated Cable IEC Standard Cable



Applications: PVC Insulated Cable With Aluminum Conductor is applicable to the fixed routing in the power distribution network or the industrial equipment with power frequency rated voltage of 1kV and below.

For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces.

Application Standard: IEC/BS/UL/GB Standards



Type: PVC Insulated Electric Cable

Conductor: Copper or Aluminum
Insulation: Polyvinyl chloride (PVC)
Filler: Polypropylene tape (pp tape)
Wrap Tape: Non-woven fabric or PP wrapping tape
Armour: STA/SWA/AWA Armoured or Unarmoured
Outer Sheath: Polyvinyl chloride (PVC)
Standards: CCC/UL/CE Certificate



Properties



High insulation, excellent properties, bright colour.


Cable with a PVC insulation or sheathing is flame retardant, which is an important consideration for electric cables in most applications. PVC can be made resistant to a wide range of chemicals including oils, acids and alkalis, and is tough, durable and resistant to abrasion. The addition of various additives can improve its temperature range, typically from -40 to 105°C, as well as the resistance to sunlight, reduced smoke emission and improved water resistance.



Technical Parameters:



Cross Section Conductor Conductor Screen Insulation Insulation Screen Metallic Screen Inner Sheath Armour Screen Layer No. Outer Sheath Overall Diameter Copper Cable Aluminum Cable
mm2 mm mm mm mm mm mm mm   mm mm kg/km kg/km
50 8.4 0.8 10.5 0.8 0.1 2.0 0.8 2 4 86 8906 7997
70 10 0.8 10.5 0.8 0.1 2.1 0.8 2 4 90 9944 8671
95 11.5 0.8 10.5 0.8 0.1 2.1 0.8 2 4 94 11112 9375
120 13 0.8 10.5 0.8 0.1 2.2 0.8 2 4 97 12253 10059
150 14.5 0.8 10.5 0.8 0.1 2.3 0.8 2 4 101 13557 10800
185 16.2 0.8 10.5 0.8 0.1 2.3 0.8 2 4 105 15059 11645
240 18.4 0.8 10.5 0.8 0.1 2.4 0.8 2 4 110 17249 12837
300 20.5 0.8 10.5 0.8 0.1 2.5 0.8 2 5 115 19603 14061
400 23.5 0.8 10.5 0.8 0.1 2.6 0.8 2 5 122 23151 15874
500 26.5 0.8 10.5 0.8 0.1 2.8 0.8 2 5 129 27045 17807




We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
