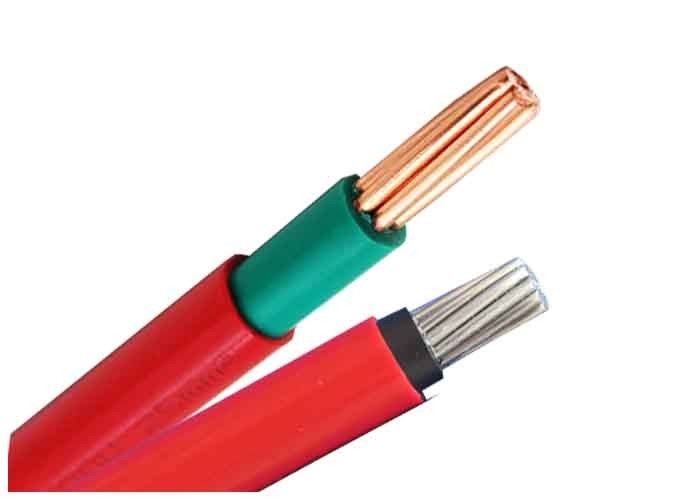

0.6/1kV Stranded Copper Conductor One Core By 1.5mm2~300mm2 PVC Insulated Electric Cable
These power cable for fixed installations such as distribution networks or industrial installations.
Such as Plant engineering; Industrial machinery; Heating and air-conditioning systems; Power stations; Stage applications etc.
Property for Application
a. The allowed max. continuous work temperature for various types of cable conductor cores in 70℃, the max. temperature for short circuit ( 5s) , cable conductor should not exceed 160 ℃.
b. The environmental temperature for laying cable should be not lower than 0 ℃ and the cable bend radius should be not less than 10 times of overall cable diameter.
Type: PVC Insulated Electric Cable
Conductor: Copper or Aluminum
Insulation: Polyvinyl chloride (PVC)
Filler: Polypropylene tape (pp tape)
Wrap Tape: Non-woven fabric or PP wrapping tape
Armour: STA/SWA/AWA Armoured or Unarmoured
Outer Sheath: Polyvinyl chloride (PVC)
Standards: CCC/UL/CE Certificate
Properties
High insulation, excellent properties, bright colour.
Cable with a PVC insulation or sheathing is flame retardant, which is an important consideration for electric cables in most applications. PVC can be made resistant to a wide range of chemicals including oils, acids and alkalis, and is tough, durable and resistant to abrasion. The addition of various additives can improve its temperature range, typically from -40 to 105°C, as well as the resistance to sunlight, reduced smoke emission and improved water resistance.
Technical Parameters:
Cross Section | Conductor | Conductor Screen | Insulation | Insulation Screen | Metallic Screen | Inner Sheath | Armour | Screen Layer No. | Outer Sheath | Overall Diameter | Copper Cable | Aluminum Cable |
mm2 | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg/km | kg/km | |
50 | 8.4 | 0.8 | 10.5 | 0.8 | 0.1 | 2.0 | 0.8 | 2 | 4 | 86 | 8906 | 7997 |
70 | 10 | 0.8 | 10.5 | 0.8 | 0.1 | 2.1 | 0.8 | 2 | 4 | 90 | 9944 | 8671 |
95 | 11.5 | 0.8 | 10.5 | 0.8 | 0.1 | 2.1 | 0.8 | 2 | 4 | 94 | 11112 | 9375 |
120 | 13 | 0.8 | 10.5 | 0.8 | 0.1 | 2.2 | 0.8 | 2 | 4 | 97 | 12253 | 10059 |
150 | 14.5 | 0.8 | 10.5 | 0.8 | 0.1 | 2.3 | 0.8 | 2 | 4 | 101 | 13557 | 10800 |
185 | 16.2 | 0.8 | 10.5 | 0.8 | 0.1 | 2.3 | 0.8 | 2 | 4 | 105 | 15059 | 11645 |
240 | 18.4 | 0.8 | 10.5 | 0.8 | 0.1 | 2.4 | 0.8 | 2 | 4 | 110 | 17249 | 12837 |
300 | 20.5 | 0.8 | 10.5 | 0.8 | 0.1 | 2.5 | 0.8 | 2 | 5 | 115 | 19603 | 14061 |
400 | 23.5 | 0.8 | 10.5 | 0.8 | 0.1 | 2.6 | 0.8 | 2 | 5 | 122 | 23151 | 15874 |
500 | 26.5 | 0.8 | 10.5 | 0.8 | 0.1 | 2.8 | 0.8 | 2 | 5 | 129 | 27045 | 17807 |
We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.
We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
