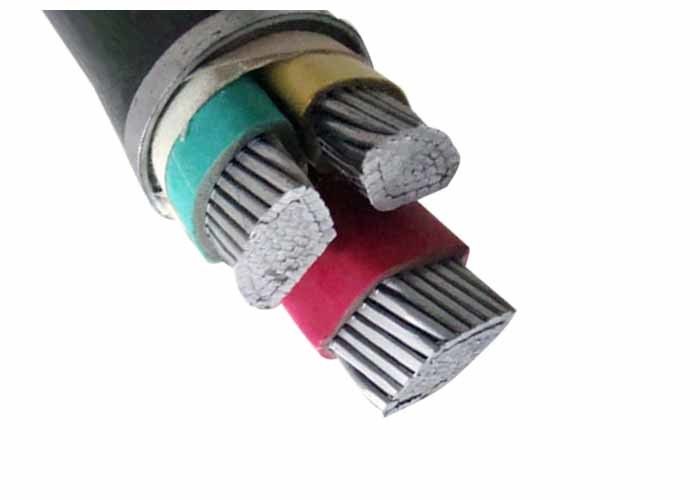

600/1000V Compacted AL Conductor PVC Insulated and Sheathed Power Cable
Applications:
Used outside as energy utility and lighting cables, in cable ducts, under ground, under normal
and salty water if specially made.
Type: PVC Insulated Electric Cable
Conductor: Copper or Aluminum
Insulation: Polyvinyl chloride (PVC)
Filler: Polypropylene tape (pp tape)
Wrap Tape: Non-woven fabric or PP wrapping tape
Armour: STA/SWA/AWA Armoured or Unarmoured
Outer Sheath: Polyvinyl chloride (PVC)
Standards: CCC/UL/CE Certificate
Properties
High insulation, excellent properties, bright colour.
Cable with a PVC insulation or sheathing is flame retardant, which is an important consideration for electric cables in most applications. PVC can be made resistant to a wide range of chemicals including oils, acids and alkalis, and is tough, durable and resistant to abrasion. The addition of various additives can improve its temperature range, typically from -40 to 105°C, as well as the resistance to sunlight, reduced smoke emission and improved water resistance.
Technical Parameters:
Cross Section | Conductor | Conductor Screen | Insulation | Insulation Screen | Metallic Screen | Inner Sheath | Armour | Screen Layer No. | Outer Sheath | Overall Diameter | Copper Cable | Aluminum Cable |
mm2 | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg/km | kg/km | |
50 | 8.4 | 0.8 | 10.5 | 0.8 | 0.1 | 2.0 | 0.8 | 2 | 4 | 86 | 8906 | 7997 |
70 | 10 | 0.8 | 10.5 | 0.8 | 0.1 | 2.1 | 0.8 | 2 | 4 | 90 | 9944 | 8671 |
95 | 11.5 | 0.8 | 10.5 | 0.8 | 0.1 | 2.1 | 0.8 | 2 | 4 | 94 | 11112 | 9375 |
120 | 13 | 0.8 | 10.5 | 0.8 | 0.1 | 2.2 | 0.8 | 2 | 4 | 97 | 12253 | 10059 |
150 | 14.5 | 0.8 | 10.5 | 0.8 | 0.1 | 2.3 | 0.8 | 2 | 4 | 101 | 13557 | 10800 |
185 | 16.2 | 0.8 | 10.5 | 0.8 | 0.1 | 2.3 | 0.8 | 2 | 4 | 105 | 15059 | 11645 |
240 | 18.4 | 0.8 | 10.5 | 0.8 | 0.1 | 2.4 | 0.8 | 2 | 4 | 110 | 17249 | 12837 |
300 | 20.5 | 0.8 | 10.5 | 0.8 | 0.1 | 2.5 | 0.8 | 2 | 5 | 115 | 19603 | 14061 |
400 | 23.5 | 0.8 | 10.5 | 0.8 | 0.1 | 2.6 | 0.8 | 2 | 5 | 122 | 23151 | 15874 |
500 | 26.5 | 0.8 | 10.5 | 0.8 | 0.1 | 2.8 | 0.8 | 2 | 5 | 129 | 27045 | 17807 |
