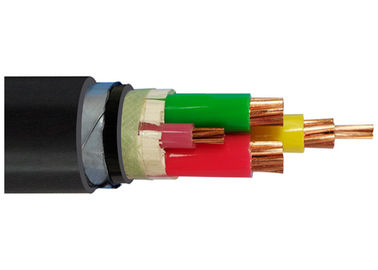

Black Copper Conducor Armoured Electrical Cable With Steel Tape Armoued

MOQ: 600 Meters
Price: US$0.5~121 per Meter
Standard Packaging: Wooden Drums
Delivery Period: 15 working days
Payment Method: T/T, L/C
Supply Capacity: 30,000 Kilometers per Month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QINGDAO YICABLE CABLE
Certification
ISO,CE,IEC,TUV,KEMA
Model Type:
4 Cores Steel Tape Armored Cable
Rated Voltage:
0.6/1kV
Insulation:
XLPE
Conductor:
Copper
Armour:
Steel Wire
Sizes:
1~ 630mm2
Cores:
4 Core
Sheath Material:
PVC, PE, LSOH
Color:
Black
Highlight:

armored electrical wire

,

armoured power cable

Product Description

Black Copper Conducor Armoured Electrical Cable With Steel Tape Armoued





Applications: Used for power transmission and distribution line with voltage rated at 35kV and below.Compared with PVC Insulated Power Cable, xlpe power cable boasts not only characteristics of excellent electricity, mechanism,

heat and aging-resistant, environment stress-resistant and chemical corrosion-resistant, but also simple

structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working.



Standards: International: IEC 60502-2, IEC 60228

China: GB/T 12706.2-2008

Other standards such as BS,DIN and ICEA upon request





Construction:

Conductor

Compact Stranded Copper Conductor, Class 2 as per IEC 60228

Circular solid Copper Conductor, Class 1 as per IEC 60228

Insulation

XLPE(Cross-linked polyethylene)

Filler

PP Filler

Wrapping Tape

Non woven

Inner Covering

Extruded PVC

Armour

Steel Wire

Overall Sheath

Termite Resistant PVC



Technical data:

Rated voltage: 0.6/1kV

Maximum Conductor Temperature: under normal (90°C), emergency (130°C) or short circuit no more than 5 s (250°C) conditions.

Min. Ambient Temp. 0°C, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single-core non-armoured cables

15 x cable O.D for single-core armoured cables

15 x cable O.D for multi-core non-armoured cables

12 x cable O.D for multi-core armoured cables





Specifications:

Nom. Cross-section of conductor

Strands

No./Dia. Of Conductor

Insulation Thickness

Inner Covering Thickness

Dia. Of Armor Wire

Sheath Thickness

Approx. O.D.

Approx.

Weight

Max. D.C Resistance of Conductor (20 ℃)

Testing Voltage A.C

Current Rating

mm2

pc/mm

mm

　

　

mm

(mm)

kg/km

Ω /km

kV/5min

In air (A)

In soil(A)

4 × 4

7/0.85

0.7

1.0

0.9

1.8

18.0

699

4.61

3.5

34

45

4 × 6

7/1.04

0.7

1.0

1.25

1.8

19.0

820

3.08

3.5

43

57

4 × 10

7/1.38

0.7

1.0

1.25

1.8

22.0

1233

1.83

3.5

60

77

4 × 16

7/1.78

0.7

1.0

1.6

1.8

24.5

1550

1.15

3.5

83

105

4 × 25

7/2.14

0.9

1.0

1.6

1.8

29.2

2036

0.727

3.5

105

125

4 × 35

7/2.52

0.9

1.0

2.0

1.9

32.5

2501

0.524

3.5

125

155

4 × 50

10/2.52

1.0

1.0

2.0

2.0

33.0

3064

0.387

3.5

160

185

4 × 70

14/2.52

1.1

1.0

2.0

2.1

37.0

3974

0.268

3.5

200

225

4 × 95

19/2.52

1.1

1.2

2.0

2.3

43.0

5032

0.193

3.5

245

270

4 × 120

24/2.52

1.2

1.2

2.5

2.5

45.0

6327

0.153

3.5

285

310

4 × 150

30/2.52

1.4

1.4

2.5

2.7

51.0

7765

0.124

3.5

325

345

4 × 185

37/2.52

1.6

1.4

2.5

2.8

56.0

9205

0.0991

3.5

375

390

4 × 240

48/2.52

1.7

1.4

2.5

3.0

62.0

11444

0.0754

3.5

440

450

4 × 300

61/2.52

1.8

1.6

2.5

3.2

67.0

13830

0.0601

3.5

505

515

4 × 400

61/2.97

2.0

1.6

3.15

3.5

74.0

19673

0.0470

3.5

570

575











Black Copper Conducor Armoured Electrical Cable With Steel Tape Armoued 0
