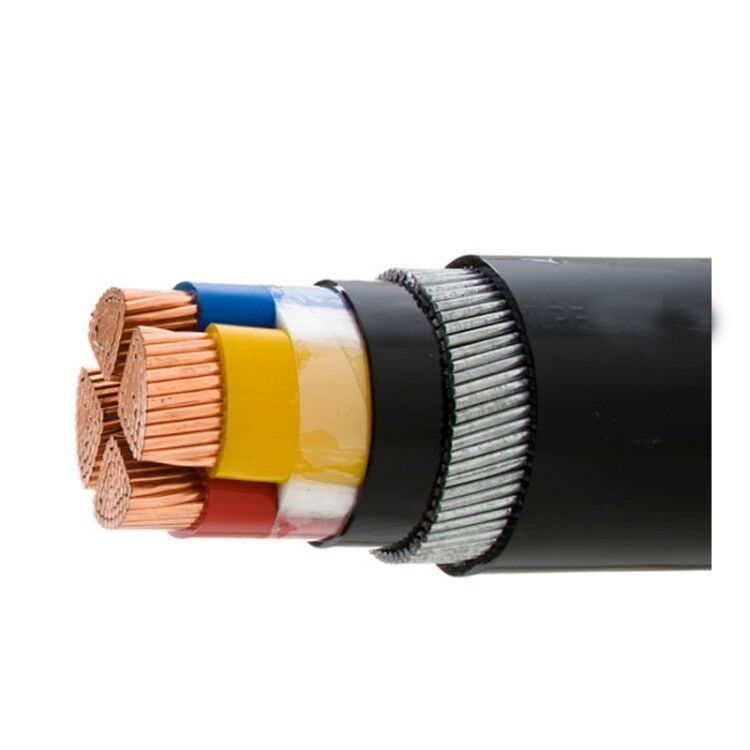

IEC 60502 600/1000V PVC / XLPE Insulated Power Cable
What is XLPE Cable?
XLPE cable stands for cross linked polyethylene cable. It is a hydronic tubing manufactured from polyethylene plastic. XLPE features a 3D molecular bond structure and shape memory characteristics.
| Voltage rating for XLPE Power Cable | No. x Nominal Cross Section of Conductor No. x mm2 | |||||||
| 1 core | 2 core | 3 core | 3+1 core | 4core | 3+2 core | 4+1 core | 5 core | |
| 0.6/1 kV | 1x4 mm2 | 2x4 mm2 | 3x4 mm2 | 3x4 mm2 + 1x2.5mm2 | 4x4 mm2 | 3x4 mm2 + 2x2.5mm2 | 4x4 mm2 + 1x2.5mm2 | 5x2.5 mm2 |
| 1x6 mm2 | 2x6 mm2 | 3x6 mm2 | 3x6 mm2 + 1x4 mm2 | 4x6 mm2 | 3x6 mm2 + 2x4 mm2 | 4x6 mm2 + 1x4 mm2 | 5x4 mm2 | |
| 1x10 mm2 | 2x10 mm2 | 3x10 mm2 | 3x10 mm2 + 1x6 mm2 | 4x10 mm2 | 3x10 mm2 + 2x6 mm2 | 4x10 mm2 + 1x6 mm2 | 5x6 mm2 | |
| 1x16 mm2 | 2x16 mm2 | 3x16mm2 | 3x16 mm2 + 1x10 mm2 | 4x16 mm2 | 3x16 mm2 + 2x10 mm2 | 4x16 mm2 + 1x10 mm2 | 5x10 mm2 | |
| 1x 25 mm2 | 2x 25 mm2 | 3x 25 mm2 | 3x25 mm2 + 1x16mm2 | 4x25 mm2 | 3x25 mm2 + 2x16mm2 | 4x25 mm2 + 1x16mm2 | 5x16 mm2 | |
| 1x35 mm2 | 2x35 mm2 | 3x 35 mm2 | 3x35 mm2 + 1x16mm2 | 4x35 mm2 | 3x35 mm2 + 2x16mm2 | 4x35 mm2 + 1x16mm2 | 5x25 mm2 | |
| 1x50 mm2 | 2x50 mm2 | 3x 50 mm2 | 3x50 mm2 + 1x25mm2 | 4x50 mm2 | 3x50 mm2 + 2x25mm2 | 4x50 mm2 + 1x25mm2 | 5x35 mm2 | |
| 1x70 mm2 | 2x70 mm2 | 3x 70 mm2 | 3x70 mm2 + 1x35mm2 | 4x70 mm2 | 3x70 mm2 + 2x35mm2 | 4x70 mm2 + 1x35mm2 | 5x50 mm2 | |
| 1x95 mm2 | 2x95 mm2 | 3x 95 mm2 | 3x95 mm2 + 1x50mm2 | 4x95 mm2 | 3x95 mm2 + 2x50mm2 | 4x95 mm2 + 1x50mm2 | 5x70 mm2 | |
| 1x120 mm2 | 2x120 mm2 | 3x 120 mm2 | 3x120mm2 + 1x70mm2 | 4x120 mm2 | 3x120mm2 + 2x70mm2 | 4x120mm2 + 1x70mm2 | 5x95 mm2 | |
| 1x150 mm2 | 2x150 mm2 | 3x 150 mm2 | 3x150mm2 + 1x70mm2 | 4x150 mm2 | 3x150mm2 + 2x70mm2 | 4x150mm2 + 1x70mm2 | ||
| 1x185 mm2 | 2x185 mm2 | 3x 185 mm2 | 3x185mm2 + 1x95mm2 | 4x185 mm2 | 3x185mm2 + 2x95mm2 | 4x185mm2 + 1x95mm2 | ||
| 1x240 mm2 | 3x 240 mm2 | 3x240mm2 + 1x120mm2 | 4x240 mm2 | 3x240mm2 + 2x120mm2 | 4x240mm2 + 1x120mm2 | |||
| 1x300 mm2 | 3x 300 mm2 | 3x300mm2 + 1x150mm2 | 4x300 mm2 | 3x300mm2 + 2x150mm2 | 4x300mm2 + 1x150mm2 | |||
| 1x400 mm2 | ||||||||
| 1x500 mm2 | ||||||||
What is cross-linked polyethylene/XLPE?
Cross-linked polyethylene, also known as XLPE, is a form of insulation produced by heat and high pressure. One method of manufacturing XLPE insulation is to irradiate the compound. Another method is to use a peroxide chemical cross-linking compound. the most important property of XLPE is the electrical properties it exhibits. Cables with XLPE insulation are capable of carrying high currents and voltages. a common application for XLPE is medium to high voltage applications. the physical and electrical properties of XLPE make it ideal for use in industrial environments.
Application
These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.
